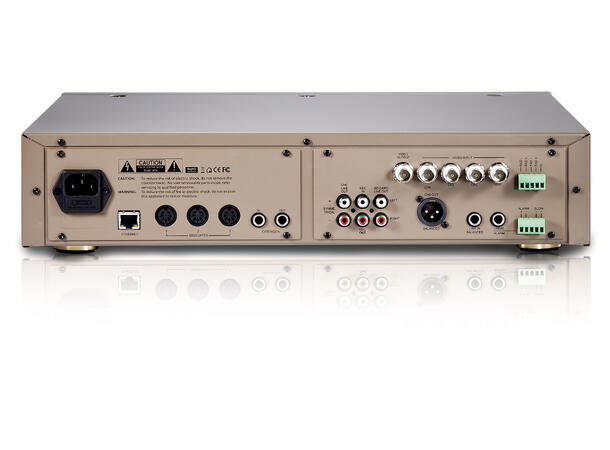

CS-120CU works as a main unit of the whole system. It provides all inputs and outputs needed to manage complex audio system. A single CS-120CU can be connected with 90 sets of CS-120CH and CS-120DU. With additional power unit CS-120EMU up to 256 sets can be connected.
This stand-alone system provides 4 types of conferencing mode, Open, Over-ride, Voice and Apply. It meets most conference requirement. Voting function is also provided. Large LCD screen provides detailed information. Soft-key design provides intuitive operation Maximum 4 video cameras can be connected to perform video tracking.
|
| Supply voltage |
AC110Vor AC220V (default settings) |
| Number of connectable conference units |
=254 |
| Frequency response |
40-16000Hz |
| Signal-to-noise ratio |
>80dBA |
| Dynamic range |
>85dB |
| Audio crosstalk |
>70dB |
| Total harmonic distortion |
<0.05%
Original input: 6.3 mm balanced
Signal strength: 0.775 V |
| Audio inputs |
Recording input: RCA type*1
Original output: RCA*2 balanced, XLR*1 balanced |
| Audio outputs |
Recording output: RCA type*1 |
| SD card slot |
Support 32GB SD card in FAT format |
| LAN interface |
RJ45 , or PC control |
| Conference unit connector |
DIN7P |
Maximum power
consumption |
200W |
