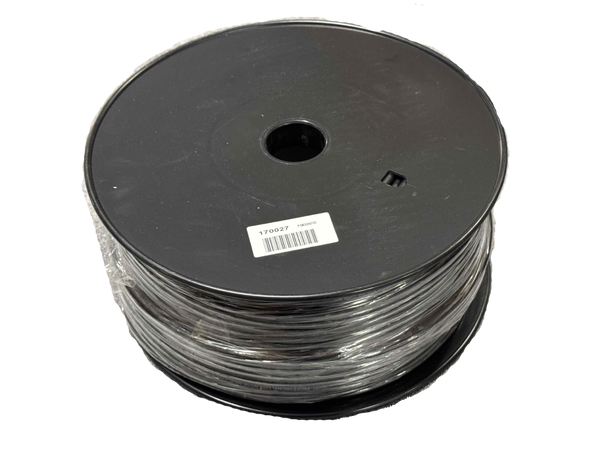

DMX601 is a professional AES/EBU digital cable
2x0.336mm2 with a very thick flexible PVC covered
overall jacket-OFC(oxygen free copper)
Conductor Drainsmm: OFC tinned 19x0.15
Conductor Insulation: PE white + black, 1.8mm
Nominal Impedance: 110O
Conductor Resistance: <80O/ km
1st Shield: 2 cores twisted to a pair tinned copper
Braided shield 100% coverage
2nd Shield: -
Shield Resistance: 30O/ km
Capacity Inner Conductor: 47pf/m
Working Temperature Min/Max: -20?/+70?
