LYNX HR-206/64 Høyttaler 2 x 6" 400W 60º x 40º 122dB

LYNX HR-206/64 Høyttaler

2 x 6" 400W 60º x 40º 122dB

Varenr: 182175
Alt. varenr: HR-206/64
14 680,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.
Spredning
60° x 40°
60° x 40°
90° x 60°
90° x 60°
120° x 40°
120° x 40°
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseTilbehørLenker & dokumenter
Beskrivelse

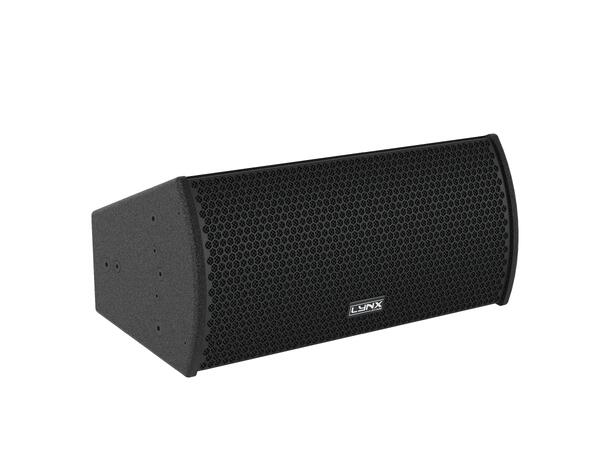

The HR-206 enclosure is a high-performance passive full range, with an excellent power-size ratio.It consists of two 6.5”transducers (at 8ohm impedance) and a 1”high frequency compression driver.

Different models available depending on the coverage angle: HR-206/64, HR-206/96 and HR-206/124. It offers a wide dispersion of 60º x 40º / 90º x 60º / 120º x 40º and 122dB SPL (800W program).

This enclosure offers a selectable operation between bi-amp or passive mode and is ideal for a wide variety of applications and has several accessories that provide an easier installation. Although this cabinet can be used without a processor, we strongly recommend that the cabinet presets are applied for maximum optimization and performance.

For Low Frequency reinforcement, several subwoofer options are available.





Technical Data

Components
LF: 2 x 6.5?, 2? voice coil
HF: 1? Exit compression Driver , 1.75? aluminium voice coil, High temperature polymer
Frequency Range 72 Hz – 20 KHz (-10dB)
Frequency Response
78 Hz – 20 KHz (± 3dB)
Sensitivity Passive Mode: 90 dB (1W@1m)
Max SPL*
Passive Mode: 116 dB – 122 dB Peak
Bi-Amp LF: 116 dB – 122 dB Peak
Bi-Amp HF: 131.5 dB – 137.5 dB Peak
Coverage Angle 60º x 40º / 90º x 60º /  120º x 40º rotatable
Power
Passive mode: 400 W (800 W program, 1600 W peak)
Bi- Amp LF: 400 W (800 W program, 1600 W peak)
Bi-Amp HF: 70 W (140 W program, 280W peak)
Crossover Bi-Amp / Passive (Selectable)
Nominal Impedance
8 O – also available in 4 O
Connectors 2 x Neutrik Speakon NL4MP
Finish
Polyurea coating – other colours (RAL) available
Material 15 mm premium birch plywood
Dimensions
249 x 568 x 252 mm (H x W x D)
Weight 15 Kg (33 lbs)

* Calculated maximum SPL based on rated peak power and measured sensitivity.
