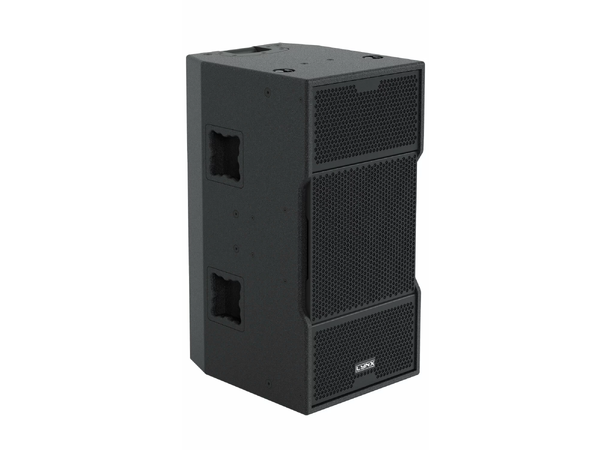

The CPS-210P is a high-output extremely compact and extremely powerful 3-way, bi-amplified, coaxial point source element designed for medium sized touring & fixed installations.
It uses two low distortion 10” (3” DUO double layer voice coil) speakers for the low frequencies with exclusive Malt Cross cooling technology, FEA optimized neodymium magnet circuit, aluminium demodulating ring and weatherproof cone.
For the mid/high frequencies it uses an ultra light weight 1.4” exit throat neodymium coaxial compression driver. The unique voice coil technology employs a light weight copper clad aluminium wire, wound inside and out of the Kapton former to improve heat dissipation, dramatically increasing the acoustic output and reliability of the driver while minimizes the power compression.
The larger annular midrange diaphragm covers the frequency range between 300Hz and 7KHz with a smooth, linear response. The ultra light annular diaphragm for the high frequencies offers exceptional transient response with very high efficiency from 4KHz to 22Khz. With two subsystems in one each driver covers a smaller frequency range for increased power handling, high dynamic and extremely low distortion and delivers excellent phase coherence & perfect time alignment without problems of multi-source interference.
The enclosure is made from premium grade birch plywood and finished with a polyurea coating for longer durability & weather protection.
Components
- LF: 2 x 10” (3” voice coil), neodymium magnet, 1400W (AES).
- MF: 3” (76mm) voice coil, 90W (AES).
- HF: 2” (51 mm) voice coil, 50W (AES)
Frequency Range
Coverage
- Rotatable 60ºH x 40ºV / 90ºH x 60ºV
- Max SPL*
- Low: 130.5 dB / 136.5 dB
- Mid/ High: 131 dB / 137 dB
- Sensitivity LF: 103 dB
- MF/HF: 113 dB
Impedance
- Low section: 8 O
- Mid/high section: 16 O
- Crossover
- Mid/high: 4500 Hz
- Low/mid: 600 Hz
- Speakon connection NL4MP +1/-1 Low, +2/-2 Mid/high
- Finish Polyurea coating, high grade resistant paint
Material
- 15 mm premium birch plywood

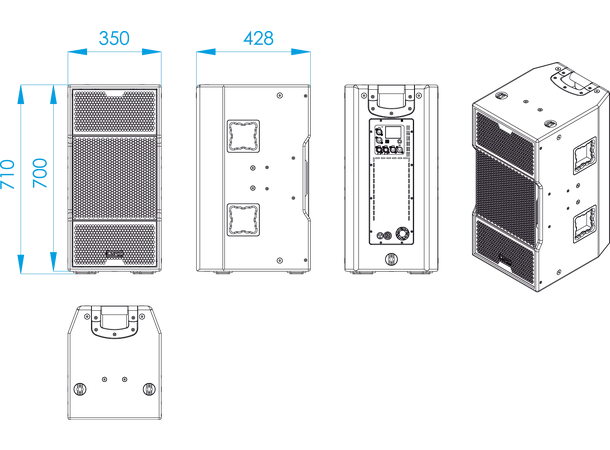

- Dimensions 710 x 350 x 428 mm (H x W x D)
- Weight
- 33 Kg (72.75 lbs)
