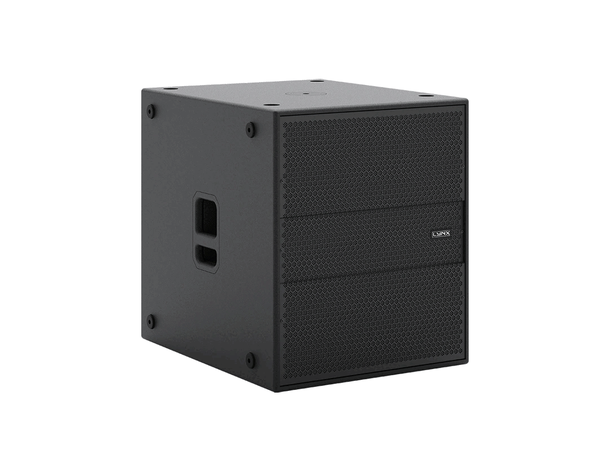

The LAIA-18S is a high-performance subwoofer that offers an ideal solution for a wide variety of applications, both indoors and outdoors, perfectly complementing the POINT SOURCE series, LINE ARRAY systems in its series. LAIA-18S is a self-powered subwoofer with a total of 1200 W in class D, universal switching power supply. Equipped with a powerful next-generation 64-bit/96KHz DSP designed and manufactured by Lynx Pro Audio, it offers the most recent advances in digital processing. The latest 32-bit/96KHZ AD/DA converters make the system one of the most advanced and innovative acoustic enclosures on the market, resulting in superior sound quality.
Additionally, LAIA series systems can be controlled remotely using the OCS control platform, giving the user the ability to control the systems without the need of external processors. It consists of a 18” and 4” voice coil speaker, double silicone spider with optimized flexibility. Ventilated V.C space for reduced power compression and aluminum demodulator ring for very low distortion, in addition to a treated cone for water protection on both sides. Delivering high power levels from a very compact format, the enclosure is made from premium 18mm birch plywood, finished with a polyurea coating for added durability and weather protection.
Key features
- Class D Powered (bi-amplified)
- Integrated Digital Processing
- Internal temperature control
- Electronic protection
- FIR linear phase filtering
- Online monitoring available
- Two way active system
Technical Data
Components: LF: 18”, 4” voice coil
Frequency Range: 30 Hz – 120 Hz (-10 dB)
Frequency response: 35 Hz – 100 Hz (± 3dB)
Max SPL: 132 dB / 138 dB Peak*
Coverage: Omnidirectional
Power: 1200 W (2400 W peak) Class D with switching power supply
DSP Processing: 96 KHz / 64 bit double-precision
Control: User control interface with 2.8” IPS screen and multifunction joystick controller
Control connections: USB (DSP programming) / Dual Ethernet port
Input: Analog BAL/UNBAL XLR, Digital AES/EBU (Optional)
AC power: 90 – 264V. 50/60 Hz
AC power: 85 – 264V AC
AC Connectors: 16A Neutrik powerCon true1 TOP with looping output
Finish: Polyurea coating, high grade resistant paint
Material: 15 mm Premium birch plywood
Dimensions: 706 x 606 x 729 mm (H x W x D)
Weight: 55 Kg (1231.5 lbs)
