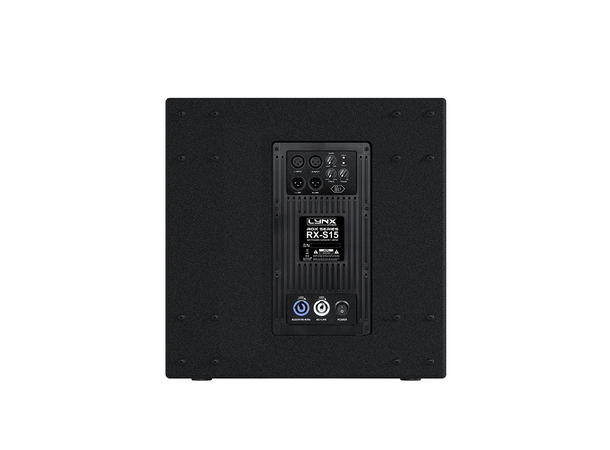

The RX-S15 is a high-output, self-powered subwoofer enclosure specifically designed to reinforce the low frequencies of the ROX series full-range models. Utilizing a bass reflex direct radiation design, it provides an excellent option for subwoofer reinforcement without the need for external amplification racks.
The system features a 1200 W Class D amplifier with a switch-mode power supply, standing out for its exceptional power-to-size ratio. This system can be controlled in real-time and is built for both indoor and outdoor professional sound reinforcement.
For portable applications, a wheel kit is available to facilitate transportation, and it can be protected during storage with a practical nylon sheath. The enclosure is constructed from 15 mm premium plywood and finished with a high-grade, weather-resistant polyurea coating
Technical Data
Components: LF: 1 x 15”, 4” voice coil
Frequency Range: 40 Hz – 300 Hz (-10dB) Adjustable
Frequency response: 45 Hz – 250 Hz (- 3dB) Adjustable
Max SPL: 126 dB – 132 dB peak*
Coverage: Omnidirectional
Input / Output: Balanced XLR input / output
Power: 1200W Class D with switching power supply
Processing: Analogue
Control: User control interface
AC Power: 90 – 260V. 50/60 Hz
AC Connectors: 16A powercon with looping output
Fittings: M20 Pole Insertion
Finish: Polyurea coating, high grade resistant paint
Material: 15 mm Premium plywood
Dimensions: 500 x 450 x 572 mm (H x W x D)
Weight: 33 Kg (72.75 lbs)
