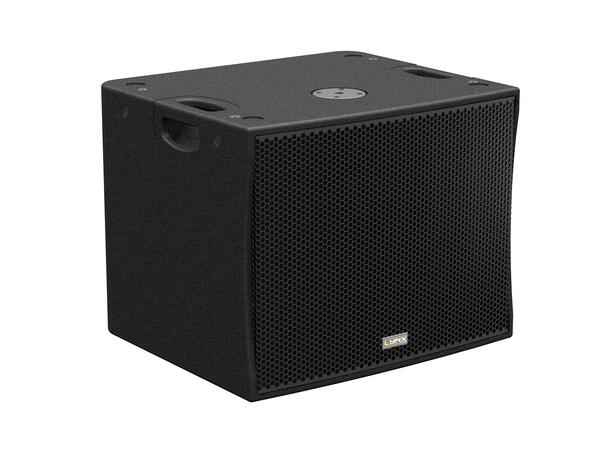

The BS-118 is a compact, passive subwoofer cabinet designed to extend low frequency support to the four BS Series full range cabinets.
The 18” (3” voice coil) driver offers high power handling and high sensitivity with low distortion and ultra low air noise. The cone is waterproof, has been treated on both sides and has been optimized for direct radiation subwoofer applications.
Constructed from premium birch plywood and coated in high resistant polyurea paint. The enclosure also offers a screw free grille together with pole mount fitting so that it can be used with any of the four full range cabinets. We recommend that the cabinet presets are applied for maximum optimization and performance.
Specifications :
Components
LF: 18” speaker, 3” ( 75 mm) copper wire voice coil, Waterproof cone with treatment on both sides
Frequency range 38 Hz – 100 Hz with preset
Sensitivity: 98 dB
Max. SPL/Peak*: 126 dB / 132 dB
Rated Power: (AES) 600W AES (1200W program, 2400W peak)
Dispersion: Omnidirectional
Nominal Impedance: 8 Ohm
Connectors: 2 X NEUTRIK Speakon NL4 Pin connections: +1 / -1 input +1 / -1 link
Finish: Polyurea coating
Material: 15 mm premium birch plywood
Dimensions: 533 x 660 x 570 mm (H x W x D)
Weight: 33 Kg (52.9 lbs)
Fittings: 2 integrated ergonomic handles, 4 rubber feets right side for vertical install, M-10 fly point
Accesories: M-20 connector pole, M10 eyebolt
Enclosure type: Bass reflex direct radiation subwoofer
* Calculated maximum SPL based on rated peak power and measured sensitivity
