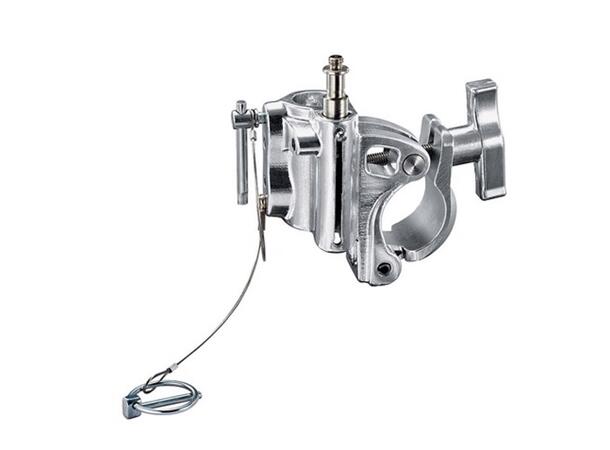

The Avenger C345K-1 Barrel Clamp in silver is made with gravity cast aluminium, has a built in 28 mm/ 1 1/8 inch junior receiver, a 16 mm/ 5/8 inch baby pin with a 1/4'' threaded top and a 16 mm/5/8 inch receiver. This barrel clamp is capable of mounting pipes or tubes ranging from 42 - 52 mm/1.65 - 2.05 inch and easily locks into place using a T-Knob. The baby attachment can support loads up to 40 kg/88.2 lb while the junior receiver can take capacities up to 300 kg/661.4 lb. The C345K-1 includes a safety cable with locking pin to secure attachments that are mounted in the junior receiver. TÜV SÜD certified. Recommended Accessories: C155, C155-01, C155-02 E200, FF3276, A2029, C590, C626
- Made from gravity cast aluminium in silver finish
- Jaws clamp down on pipes ranging from 42-52 mm/1.65-2.04''
- TÜV/SÜD certified
- Max Capacity 300 kg/661.4 lbs when using the 28 mm/1 1/8 Socket
- Includes safety cable with pin to secure junior pins in socket
Spesifications
- Weight: 0.95 kg
- Attachment 01: 1 1/8" (28mm) socket - Payload 300 Kg, 5/8" (16mm) socket - Payload 40 Kg, 5/8" (16mm) stud - Payload 40 Kg
- Length: 3 cm
- Certification: TUV
- Clamp range - max. (round tube): 52 mm
- Clamp Range Min Round Tube: 42 mm
- Colour: Silver
- Material: Aluminium
