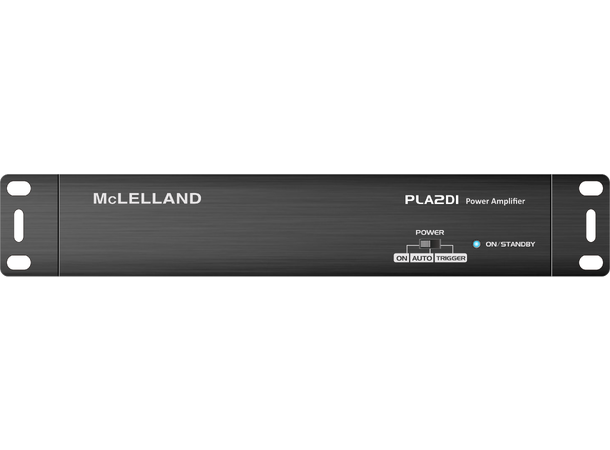

MCLELLAND PLA2Di Forsterker

Power Amplifier w/Dante Interface

Features

• Two Channels Model – 120W RMS.
• Stereo into 4-8 Ohm loads.
• Bridgeable for 70V or 100V (Direct Drive)
• Slot card for Dante Receiver.
• Power down after ~15 minutes of no signal and comply with Energy Star Power consumption limits of < 0.5W in standby.
• Yellow LED ( Front Panel) to indicated Standby mode is active.
• Terminal Block analog audio inputs on 2 CH amp.
• 2 x amplifier outputs, bridgeable to 1 channel.
• Volume, Auto on/off signal sensing.
• Natural cooling without Fan.
• TRIGGER could be external remoting ON/OFF.
• Short circuit protection.
• Overheating protection.

Specifications

• Output Power:
• 120W x 2, 8 O (31 V) RMS @ < 1 % THD+N
• 120W x 2, 4O (22 V) RMS @ < 1 % THD+N
• 240W, 70V @ < 1 % THD+N
• 240W, 100V @ < 1 % THD+N
• Frequency Response: 20Hz~20KHz, +/- 2 dB @ 4O Load
• S/N:>90dB  @ 1W(20 Hz - 20 kHz)
• Input Sensitivity: 1.0V (+2.2dBu) @ Max Output 4O
• Gain: 25 dB @ 4O
• Input Impedance: >10K Ohm, Balanced
• Maximum Input Level: 12.3 V (+24 dBu)
• Trigger In/Out: DC 12V
• High Pass Filter: 80 Hz(±2dB)
• Input Connector: 5 pin Euro terminal
• Trigger Connectors: 3.5 mm Jacks
• Output Connectors:
• 4 pin Euro terminal (4O/8O)
• 2 pin Euro terminal (70V/100V)
• Power Requirements: 100 - 240 VAC, 50 - 60 Hz, 350W
• Dimensions: 214mm x 249.8mm x 44mm (WxDxH)
• Weight: 1.94 Kg
