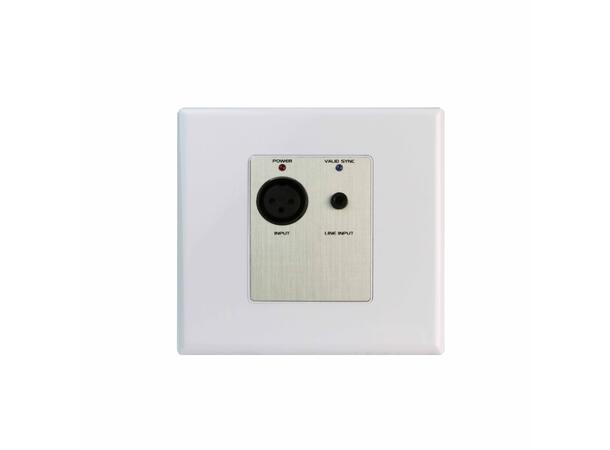

Dante Interface Mic/Line

Features

• One Mic/Line XLR Input and One Mini-jack Input on Front Panel

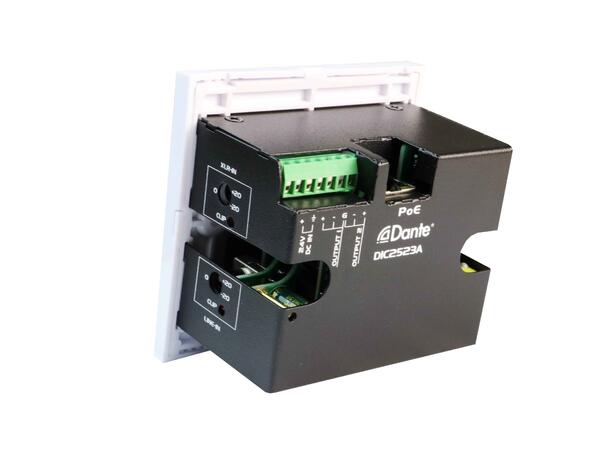

• Terminal Block for Two Audio Outputs on Rear Panel
• Mini-jack Input is set to Mono signal
• Converts Mic or Line Audio Signals to Dante Network
• Mic or Line is Selectable for XLR Input
•  Switchable 48V Phantom Power for Mic XLR Input
• Adjustable Mic/LIne Gain from -20 dB to +20dB for Each Input Channel
• Two Audio Signal Outputs from Dante Network
• Balanced or Unbalanced Signal Outputs
• High Resolution 24 Bit for DAC and ADC
• Power over Ethernet (PoE) or 24VDC power supply
• Provides High Quality of Preamplifier for Microphones
• Dimension: 116mm x 114.5mm x 53.1mm (WHD)
