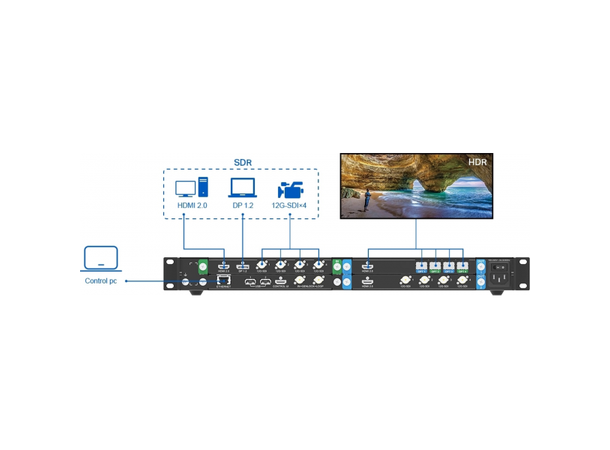

The HDR Master 4K is a video processor converting SDR content into an HDR format. By analyzing the SDR content and then intelligently filling in the missing information, the HDR Master 4K raises the dynamic range of brightness, color gamut and color depth to HDR standard. With this all-round upgrade, the SDR video source is converted into an HDR10 format which has a wider dynamic range of brightness, more colors and richer bright and dark details. The HDR Master 4K provides full
4K×2K@60Hz
input and output connectors. Based on a pure hardware system architecture, the HDR Master 4K allows for stable and highly-efficient processing capabilities, output connector converting, SDI mosaic as well as long-distance optical fiber transmission. Thanks to the powerful capabilities of receiving a variety of video signals, ultra HD image processing and HDR10 image output, the HDR Master 4K can be widely used in applications such as high-end rental, stage control, finepitch LED screens and video source conversion.

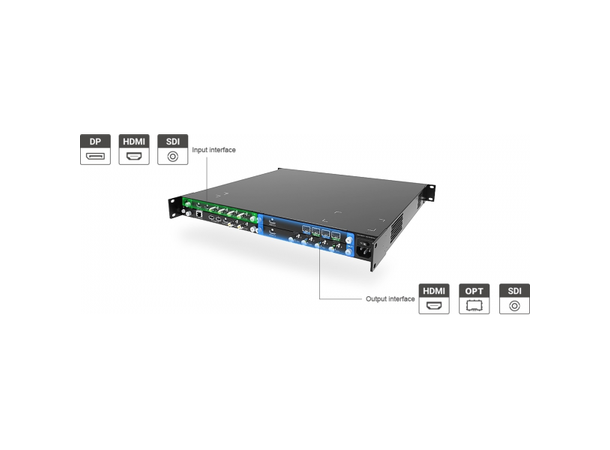

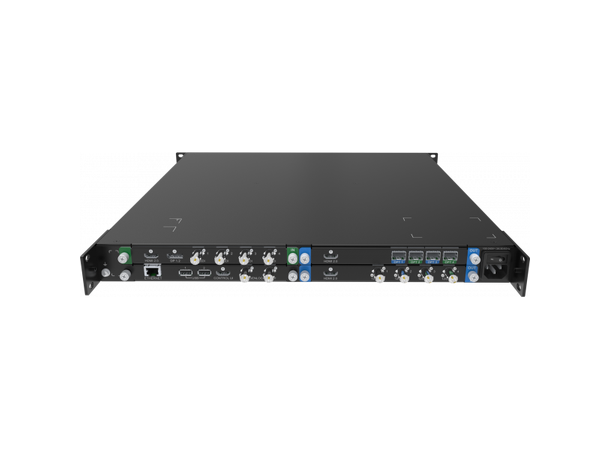

- 1 pluggable input card
- 1x DP 1.2, 1x HDMI 2.0 and 4x 12G-SDI
- 3G-SDI mosaic input
- Up to six 4K×2K@60Hz video inputs simultaneously
- 2 pluggable output cards that output the same content synchronously
- One with 1x HDMI 2.0 and 4x 10G optical fiber ports
- The other one with 1x HDMI 2.0 and 4x 12G-SDI output connectors
- 3G-SDI mosaic output
- Free conversion between SDR and HDR10/HLG
- Convert SDR content to HDR10/HLG format
- Convert HDR10/HLG content to SDR format
- BKG and LOGO file importing via a USB drive
- Up to 10 BKG images, each width or height up to 8192 pixels
- Up to 10 LOGO images, each width or height up to 512 pixels

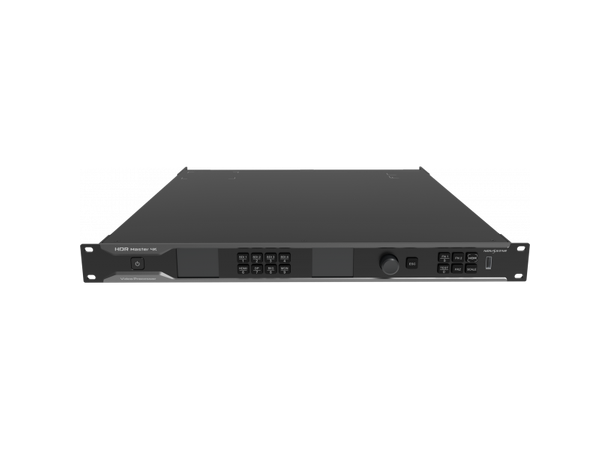

- An LCD screen dedicated for monitoring
- Self-test and status monitoring
- Input hot backup function
- Output auto scaling to fit screen
- Output color space, sampling rate and bit depth settings
- Layer image flipping, input crop and layer mask
- Operating Environment Temperature: 0°C to 45°C
- Operating Environment Humidity: 10% to 85%, non-condensing
- Storage Environment Temperature: -20°C to +60°C
- Storage Environment Humidity: 10% to 90%, non-condensing
- Power supply: 100-240V~, 3A, 50/60Hz
- Max. power consumption: 120 W
- Dimensions: 482.6 mm × 442.5 mm ×50.5 mm
- Net weight: 7.5 kg
- Gross weight: 12.1 kg
- Carrying case: 582 mm × 185 mm × 555 mm
- Packing box: 612 mm × 225 mm × 595 mm
- Accessory box: 2x HDMI cables, 1x Mini DP to DP cable, 1x DP cable, 1x Ethernet cable, 1x Power cord (EU), 1x Power cord (UK), 1x Power cord (US), 1x Power cord (CN), 1x Cable clip, 1x
- Cable tie, 1x Quick Start Guide, 1x Safety Manual, 1x Customer Letter, 1x Certificate of Approval
- Certifications: CE, FCC, IC, RoHS
- Noise Level (typical at 25°C/77°F: 50 dB (A)
