NOVASTAR input card for NOVAH

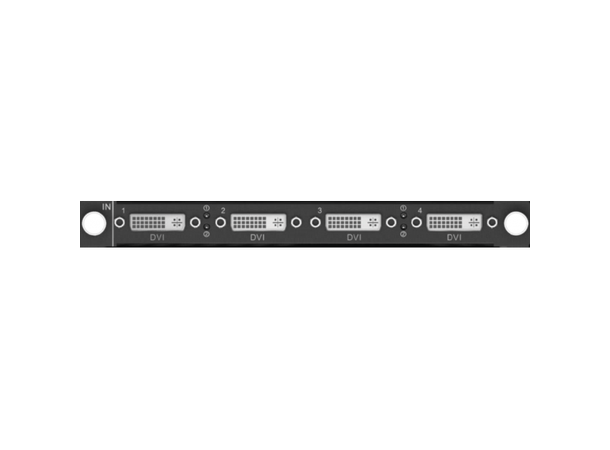

Novastar input card for NOVAH, 4xDVI.

• Support for single link and dual link input modes, and 10-bit input source.
• HDCP 1.4 compliant.
• Does not support interlaced signal input.
• Single link mode:
  - Four DVI connectors are all used for input.
  - Each connector supports the maximum resolution of 2048 ×1152 @60Hz and the minimum resolution of 800×600@60Hz.
  - Custom resolutions: max. width: 2560 pixels (2560×972@60Hz), max. height: 2560 pixels (884×2560@60Hz).
• Dual link mode:
  - Connectors 2 and 4 are used for input, and connectors 1 and 3 are unavailable.
  - Each connector supports the maximum resolution of 3840×1080@60Hz and the minimum resolution of 800×600@60Hz.
   - Custom resolutions: max. width: 4096 pixels ( 4096 ×1124@60Hz), max. height: 4095 pixels ( 10141014×4095@60Hz).
• Status LEDs:
  - On: The input source is accessed normally.
  - Off: No input source is accessed or the input source is abnormal.
