NOVASTAR input card for NOVAH

1 x 12G-SDI

Varenr: 164059

Alt. varenr: NOVAHIC10

33 793,-eks. mva

Logg inn for å se dine nettopriser.
Ikke kunde? Søk om å bli kunde her.

Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.

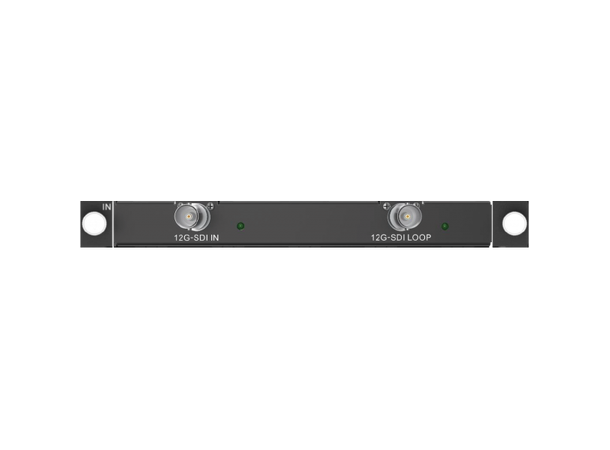

Novastar input card for NOVAH, 1x12G-SDI.

1x 12G-SDI IN
- Backward compatible with 6G -SDI , 3G -SDI , HD -SDI and SD -SDI
- Supports ST -2082 -1 (12G ), ST -2081 -1 (6G ), ST -424 (3G ), ST -292 (HD ) and SMPTE 259 SD SD.
- Each connector supports the maximum resolution of 4096×2160@60Hz 60Hz.
- Supports 1080i/576i/480i de de-interlacing processing.
- Does not support i nput resolution and bit depth settings.
1x 12G-SDI LOOP: Loop out the 12G-SDI signal.
Status LEDs:
- On: The input or loop output is connected normally.
- Off: No input or loop output is connected or the input or loop output is abnormal.
