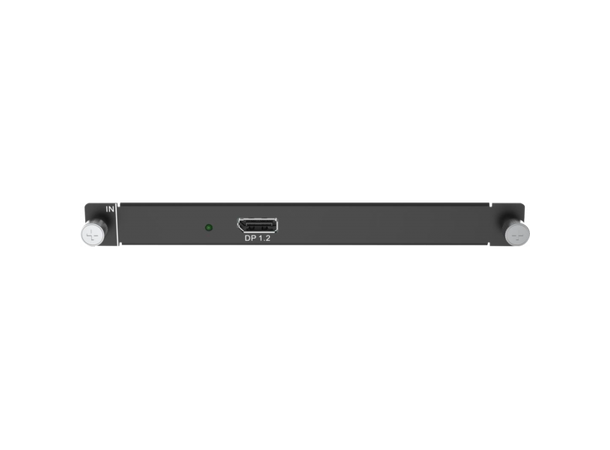

Novastar input card for NOVAH, 1xDP1.2
1x DP 1.2
- Backward compatible with DP 1.1
- Each connector supports the maximum resolution of 4096×2160@60Hz or 8192×1080@60Hz.
- Custom resolutions:
- Max. width: 8192 pixels (8192×1146@60Hz)
- Max. height: 4095 pixels (2188×4095@60Hz) - HDCP 2.2 compliant
- Status LEDs:
- On: The input source is accessed normally.
- Off: No input source is accessed or the input source is abnormal.
