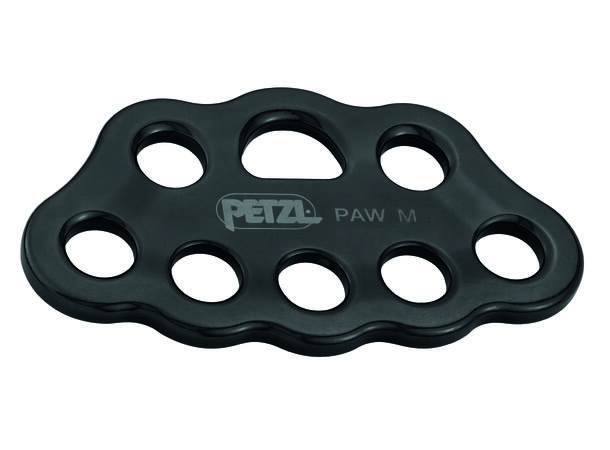

Rigging plate
Available in three sizes, the PAW rigging plate can be used to organize a workstation and to set up multi-anchor systems. The hole design allows ropes or slings to be threaded for direct connection. Made of forged aluminum, it offers an excellent strength-to-weight ratio.
Description
For easy organization of the workstation and setup of multi-anchor systems:
- 19 mm holes allow the locking sleeves of most carabiners to pass through, enabling the carabiner to be rotated

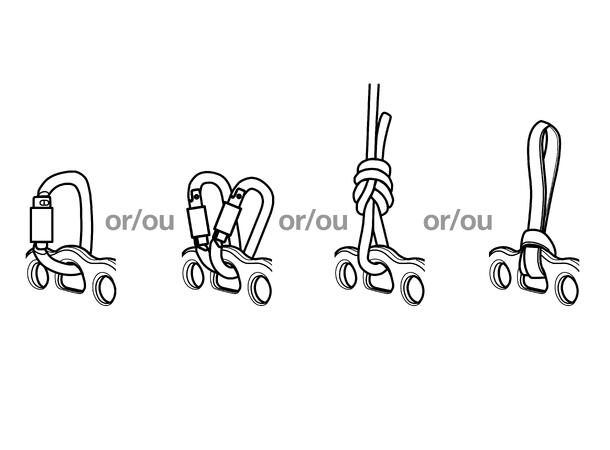

- hole design allows ropes or slings to be threaded for direct connection.
- main attachment hole accepts up to three carabiners
- the odd number of attachment holes enables the system to be centered and balanced
- up to three users can be connected at the same time
Durability:
- made of forged aluminum for an excellent strength-to-weight ratio
- durable markings, thanks to the recessed area in the center of the plate
Available in three sizes
Two wide auxiliary attachment holes (size L only), compatible with the CONNEXION FIXE and CONNEXION VARIO anchor straps.
Specifications
Material(s): aluminum
Certification(s): CE, NFPA 1983 General Use
References
|
References |
G063AA01 |
G063BA01 |
G063CA01 |
|
Size |
S |
M |
L |
|
Color(s) |
black |
black |
black |
|
Weight |
60 g |
180 g |
350 g |
|
Breaking strength |
36 kN |
45 kN |
50 kN |
|
Guarantee |
3 years |
3 years |
3 years |
|
Inner Pack Count |
1 |
1 |
1 |
