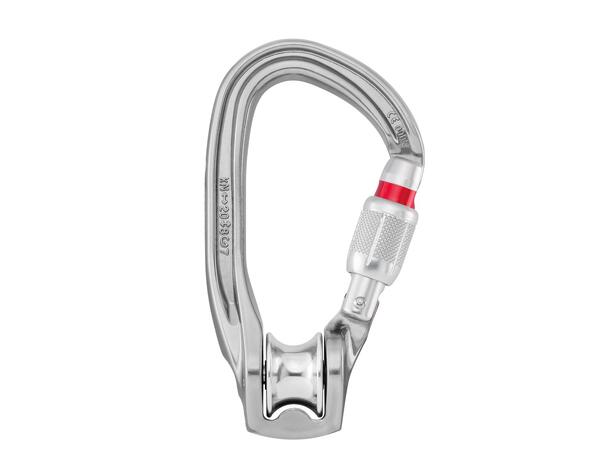

Easier handling:
- sheave mounted on sealed ball bearings for excellent efficiency

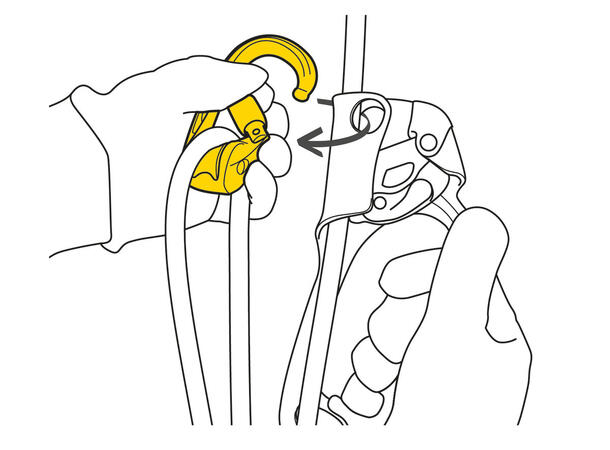

- gate opening on the non-pulley side, to facilitate installation on devices

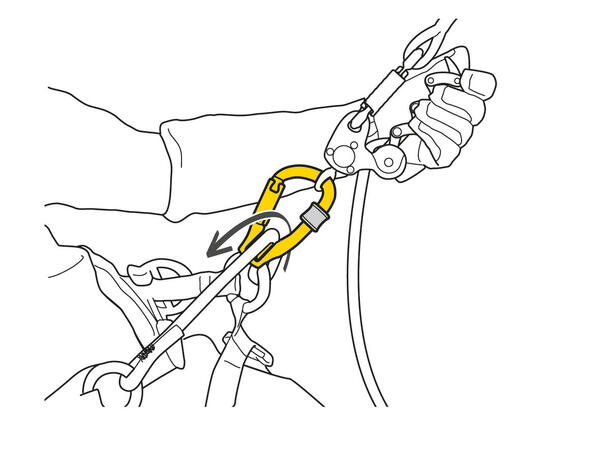

- Keylock system prevents any accidental snagging of the carabiner when putting the pulley in place
H cross-section of carabiner:
- ensures an improved strength-to-weight ratio
- protects markings from abrasion
Two locking systems available:
- TRIACT-LOCK: automatic locking with triple-action gate opening
- SCREW-LOCK: the manual screw-lock with red band provides a visual warning when the carabiner is unlocked
Specifications
- Material(s): aluminum
- Min. rope diameter: 7 mm
- Max. rope diameter: 13 mm
- Sheave diameter: 18 mm
- Maximum working load: 2 x 2 = 4 kN
- Efficiency: 85 %
- Major axis strength: 20 kN
- Minor axis strength: 8 kN
- Open gate strength: 7 kN
