PROLIGHTS JETWASH19 Moving head 19 x 20W RGBW, 4° - 52° PROLIGHTS JETWASH19 Moving head 19 x 20W RGBW, 4° - 52° PROLIGHTS JETWASH19 Moving head 19 x 20W RGBW, 4° - 52° PROLIGHTS JETWASH19 Moving head 19 x 20W RGBW, 4° - 52° PROLIGHTS JETWASH19 Moving head 19 x 20W RGBW, 4° - 52°

PROLIGHTS JETWASH19 Moving head

19 x 20W RGBW, 4° - 52°

Varenr: 164203
Alt. varenr: JETWASH19
26 483,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.
39 på lager i Oslo
BeskrivelseTilbehørLenker & dokumenter
Beskrivelse

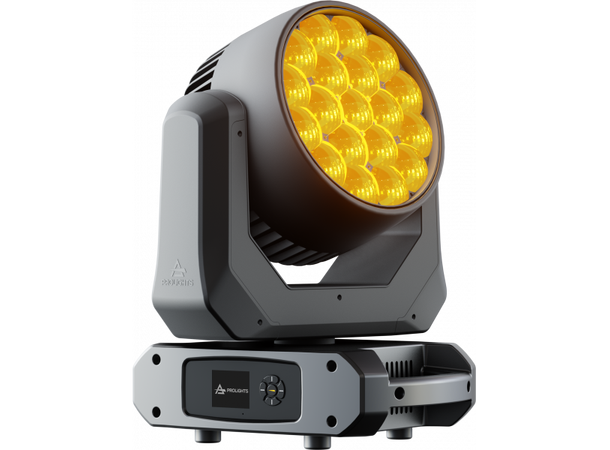

The Jet Wash19 is a compact and fast LED moving wash light with motorized zoom control.

The 20W Osram RGBW LED source provides plenty of output and combined with a highly efficient optical system capable of zooming from 4° to 52°, this unit can easily work as beam or wash light.

The Jet Wash19's colour mixing system features precise and advanced control with superior white and saturated tones, and a clean and intuitive user interface similar to the other series.



Features:

  • Compact form factor and fast movements
  • Zoom from 4° to 52° with high optical efficiency
  • Precise white CCT and colour mixing

LIGHT SOURCE

  • Source: 19x20W RGBW Osram Ostar LEDs
  • Luminous flux: (4°) 3'019 lm - (52°) 5'337lm @full
  • Lux: (4°) 23'781 lx - (52°) 682lx @5 m full
  • Source life expectancy: > 50.000 h

OPTICS

  • Zoom: 4° - 52° motorised linear zoom
  • Lens type: honeycomb gapless plano-convex optics

COLOUR SYSTEM

  • Colour mixing: RGBW / FC
  • CCT: CCT control, + / - green correction, tungsten emulation
  • White presets: 2.800 K ~ 10.000K
  • Colour wheel: virtual colour wheel with macros

DYNAMIC EFFECTS

  • Control Resolution: 16-bit dimmer
  • Special features: linear crossfade channel from any white to any colour; virtual CTO on colours

BODY

  • Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
  • Pan angle: 540°
  • Tilt angle: 233°
  • Pan/Tilt resolution: bit 16-bit
  • Feedback: automatic repositioning after accidental movement
  • Body: aluminium structure with high-resistance polycarbonate cover
  • Body colour: RAL 9004

CONTROL

  • Protocols: DMX512, RDM
  • DMX channels: 23channel
  • RDM: RDM for remote monitoring and settings
  • Display: LCD high resolution colour display with autoflip
  • Firmware upgrade: yes, via USB - DMX interface (UPBOX2) not included

ELECTRONICS

  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz

ELECTRICAL

  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 350W
  • Output (at 230V): 7 units on a single power line
  • Power factor: > 0,96

PHYSICAL

  • IP rating: 20
  • Cooling: forced air with fan
  • Suspension and fixing: any position with quick-lock omega brackets
  • Pan / tilt lock: for transportation and maintenance
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Data connection: Neutrik Art-Net RJ45 IN/OUT
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors

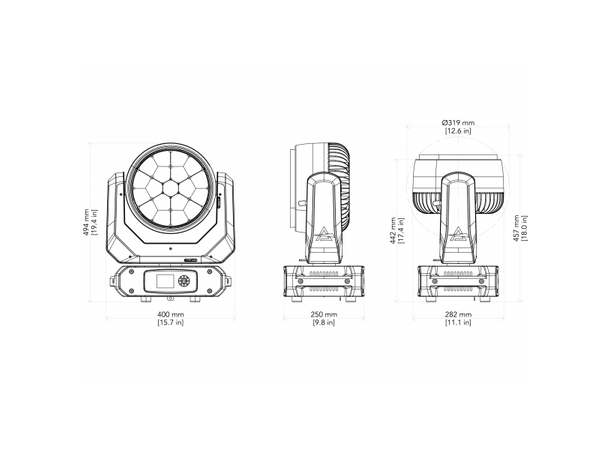

  • Dimensions (WxHxD): 396x487x250mm
  • Weight: 14,7kg

CERTIFICATIONS / APPROVALS

  • Certifications / Approvals: CE, UKCA, RCM

BOX CONTENT

  • 1 x JETWASH19
  • 1 x 1,5 meters power cable (BARE END - NEUTRIK POWERCON TRUE1 IP65)
  • 2 x OS24
  • User Manual
