NB! STRØMKABEL LEVERES UTEN STØPSEL, SE TILBEHØR FOR ALTERNATIVER
60W Variable White LED Mini Fresnel (2,700K - 5,600K), with manual zoom 21° - 83°

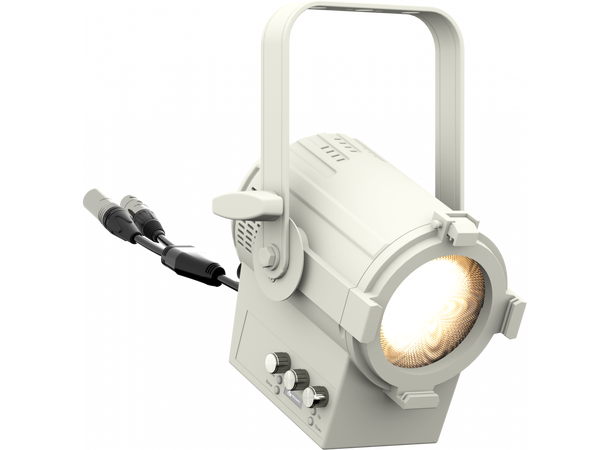

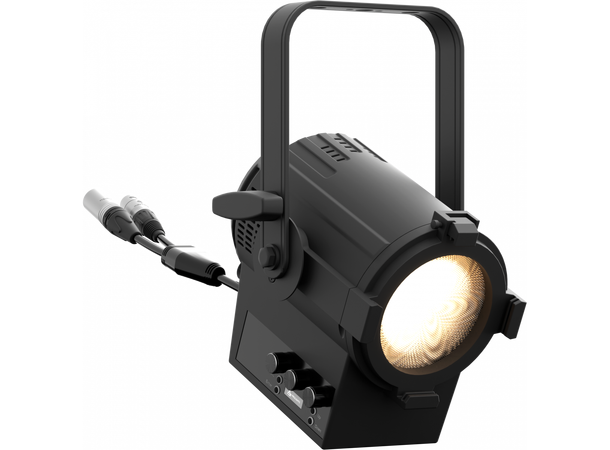

The EclMiniFresnel VW is an ultra-compact LED Fresnel lamp, designed as a replacement for a 300W fixture, with a bright and high-quality variable-white light, from 2,700K to 5,600K, using a 60W LED source.
This is the perfect luminaire for those applications requiring high-quality white rendering, such as in TV studios, galleries, and virtual productions, with high CRI (>96), TLCI (>96), TM-30 and R9.
The EclMiniFresnel VW has a manual zoom range from 21° to 83°, with precise focusing, and barndoors (included).
This fixture has an intuitive user interface with rotatory knobs. It also has stand-alone settings, PowerCon True in & through connections and XLR in & through, offering an incredible user experience and easy setup.
LIGHT SOURCE
- Source: 60W Variable White LE
- CCT: 2.700 K - 5.600K
- Luminous flux: (21°) 877 lm - (83°) 2'320lm @full
- Lux: (21°) 630 lx - (83°) 238lx @3 m
- CRI: 96 @WW; 95 @CW; 95 @full
- R9: 91 @WW; 88 @CW; 86 @full
- TLCI: 95 @WW; 98 @CW; 97 @full
- TM30 Rf: > 94 @WW; >93 @CW; > 94 @full
- TM30 Rg: < 103 @WW; < 104 @CW; < 104 @full
- Source life expectancy: > 50.000 h
OPTICS
- Zoom: 21° - 83° manual
- Lens diameter: 3,93'' - 100mm
- Lens type: fresnel zoom lens
COLOUR SYSTEM
- Colour mixing: tunable white
- CCT: CCT control through dedicated DMX channel
- White presets: 2.700 K - 5.600K
- Colour wheel: built-in white presets
DYNAMIC EFFECTS
- Control Resolution: 16-bit dimmer
- Static mode: selection of static dimmer and color temperature
- Manual mode: manual adjustment of intensity and CT from knob
- Auto mode: built-in programs with execution speed adjustment
BODY
- Hardware on-board: filter frame, 4 doors barndoor, spigot
- Body: sturdy die-cast aluminium body
- Body colour: RAL 9004 or RAL 9003
CONTROL
- Protocols: DMX512, RDM

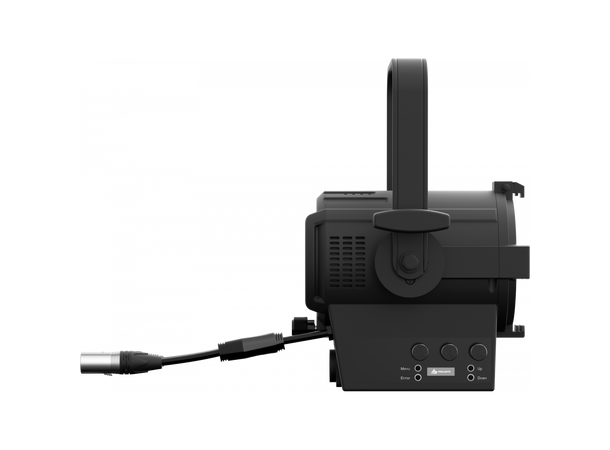

- Stand Alone: 3 rotatory knobs
- DMX channels: 1 / 2 / 4 / 5 / 11channel
- RDM: RDM for remote monitoring and settings
- Display: Graphic User Interface
- Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
ELECTRONICS
- Dimmer: linear 0 ~ 100% electronic dimmer
- Dimmer curves: 4 selectable dimming modes available
- Strobe / shutter: 1 - 30 Hz, electronic
- Operating temperature: -20° ~ +45°
- LED Control: flicker free frequency with adjustable PWM
- Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
- Mains power supply: 100-240V - 50/60Hz
- Max power consumption: 55W
- Power factor: > 0,52
PHYSICAL
- IP rating: 20
- Cooling: active, silent operation

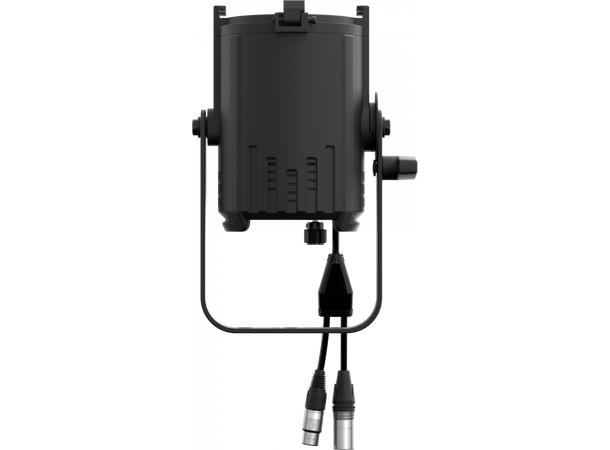

- Suspension and fixing: bracket for hanging and positioning

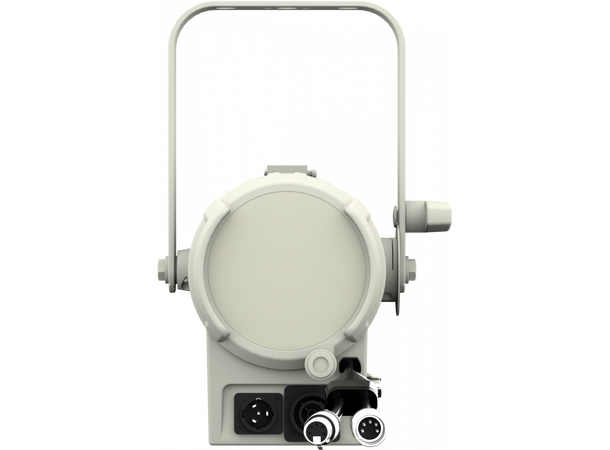

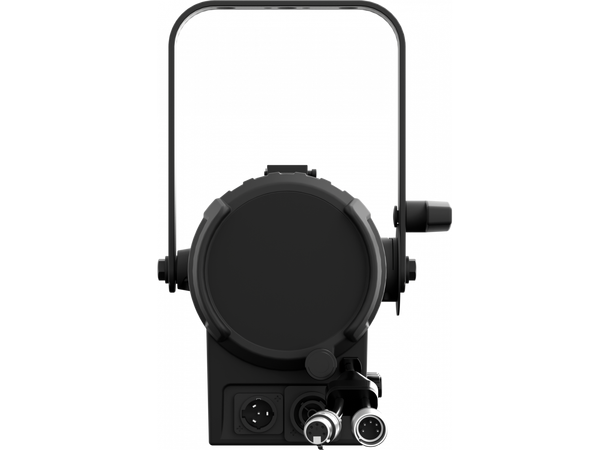

- Signal connection: Amphenol XLR 5p IN/OUT connectors
- Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
- Dimensions (WxHxD): 191x281x203mm
- Weight: 2,5kg
CERTIFICATIONS / APPROVALS
- Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT
- 1 x MINIECLFRVW
- 1 x MINIECLFRBD
- 1 x MINIECLFRTPG
- User Manual
