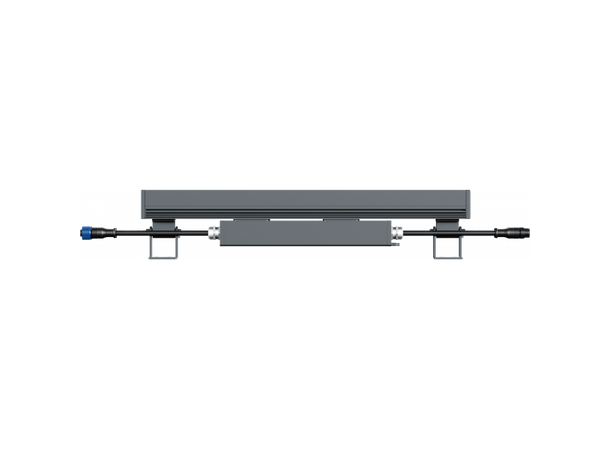

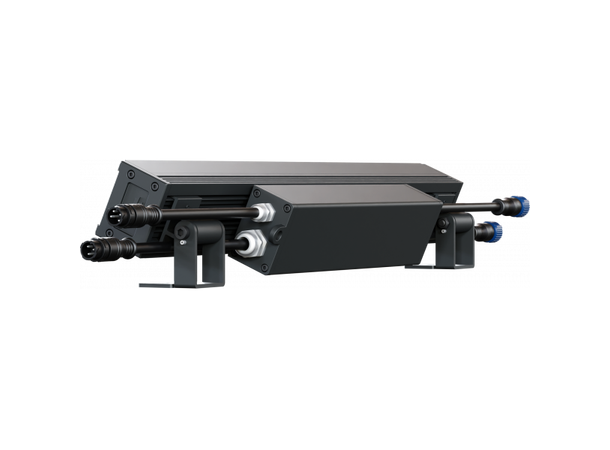

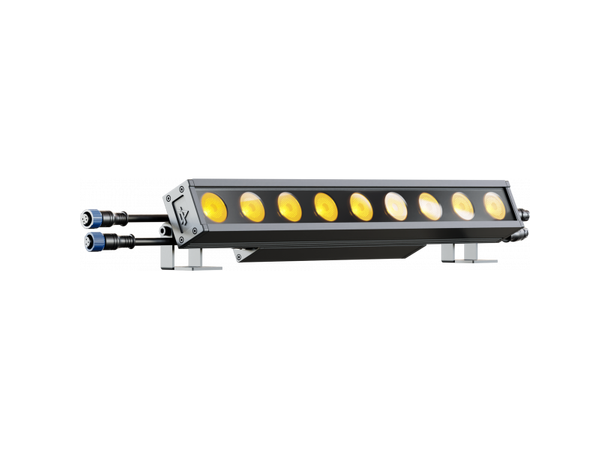

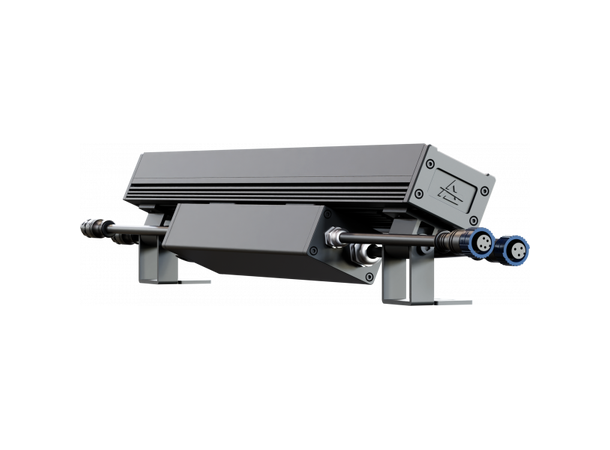

PROLIGHTS ArcShine M9FC Wash, IP66

NB! STRØMKABEL LEVERES UTEN STØPSEL, SE TILBEHØR FOR ALTERNATIVER

The ArcShine M18FC and ArcShine M9FC are a series of linear LED fixtures, designed for interior and exterior applications (IP66) such as flood lighting, wall washing and accent lighting.

There are two sizes available, one with 18 LEDs (100 cm) and the other with 9 (50 cm) LED emitters, 4W each, with RGB + Warm White colour mixing. Its die-cast aluminium body with tempered glass make them perfect additions to urban structures or historical buildings.

Optic: 8° lenses capable of delivering multiple angles with optional holographic filters.

Optional holographic symmetric and elliptical filters available: 20°, 40°, 60°, 10°x60°, 30°x60°.

The ArcShine range has an on-board power supply and DMX/RDM control. The 100 cm version is controllable in two sections.

• Source: 9x4W RGBW LEDs
• CCT: 2.700 K - 5.600K
• Luminous flux: (8°) 1'288 lm; (8°+20°) 1'275 lm; (8°+40°) 1'259 lm; (8°+60°) 1'265 lm; (8°+10°x60°) 1'772 lm; (8°+30°x60°) 1'394lm @full
• Lux: (8°) 924 lx; (8°+20°) 153 lx; (8°+40°) 60 lx; (8°+60°) 45 lx; (8°+10°x60°) 108 lx; (8°+30°x60°) 60lx @5 m full
• CRI: >80
• Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)

• Beam angle: 8°
• Additional optics: see available accessories

• Colour mixing: 4 in 1 RGBW
• CCT: CCT control through dedicated DMX channel
• Colour wheel: virtual colour wheel with macros
• Macros: built-in white presets

• Tilt angle: manual 180°
• Body: sturdy aluminum profile
• Body colour: RAL 7012

• Protocols: DMX512, RDM
• Stand Alone: available through DATAMASTER external coder (not included)
• DMX channels: 1 / 2 / 5 / 9 / 12 / 14channel
• RDM: RDM for remote monitoring and settings
• Display: user interface through DATAMASTER external coder (not included)
• Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
• Master/Slave: for synchronised operation of more units linked in a chain
• Other: 16bit control of dimmer and colour

• Dimmer: linear 0 ~ 100% electronic dimmer
• Dimmer curves: 4 selectable dimming modes available
• Strobe / shutter: 1-30 Hz, electronic
• Operating temperature: -20° C / +45° C (-4° F / +113° F)
• Selectable PWM: 600 ~ 25.000 Hz

• Mains power supply: 100-240V - 50/60Hz
• Max power consumption: 40W
• Output (at 230V): 30 units on a single power line
• Power factor: >0,94

• IP rating: IP66
• IK rating: 09
• Cooling: passive cooling and fan-free
• Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
• Adaptors: XLR and BARE END 16A adaptors included
• Signal connection: moulded IP signal IN/OUT connectors
• Power connection: moulded IP power IN/OUT connectors
• Dimensions (WxHxD): 500x106x71mm
• Weight: 3kg

• Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC

• 1 x ARCSHINEM9FC
• 1 x BARE END - IP connection adapter
• 1 x 5p XLR - IP connection male adapter
• 1 x 5p XLR - IP connection female adapter
• User Manual
