NB! STRØMKABEL LEVERES UTEN STØPSEL, SE TILBEHØR FOR ALTERNATIVER
The SmartBat Wash is a high-powered LED Wash Light, that can be operated wirelessly or wired.
This IP65 Wash Light has 15 x 20W RGB + Warm White LED emitters, it's SPEKTRA calibrated to guarantee consistency, high-quality white values (CRI >93), a dynamic array of true colours with smooth colour mixing, and a powerful 6,282 lumen output.
The SmartBat Wash is extremely flexible, and it can be used wirelessly with the built-in battery, using CRMX, W-DMX and RDM or, alternatively, wired with power and data cables, bypassing the battery, and enabling higher brightness levels.
The beam angle can easily be adjustable through a magnetic beam shaper filter, allowing a wider coverage whilst keeping a high output. The SmartBat Wash has all the software features of the Ecl range, sharing the same user settings and capabilities.
The pack includes:

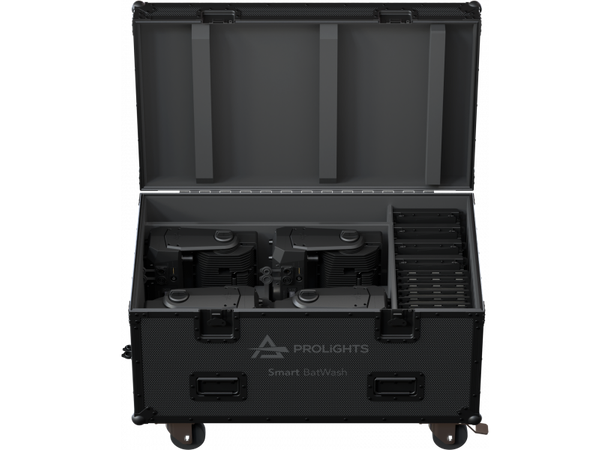

- 1 x FLIGHT CASE with AC SEETRONIC IP65 power IN/OUT connector outside and 4 x AC power OUT connectors inside
- 4 x SMARTBATWASH with 25° magnetics filter on-board
- 4 x barndoors (SBWBD)
- 1 x 1,5 meters power cable (BARE END - SEETRONIC IP65 power IN connector)
- 4 x 1,5 meters link power cable (SEETRONIC IP65 power OUT connector - SEETRONIC IP65 power IN connector)
- 4 x omega clamp (OS25)
- 1 x User Manual
Features:
- High-powered IP65 LED Wash Light, wireless (CRMX+W-DMX)/wired control, battery/AC power
- 15x20W RGB + Warm White LED source, powerful 6,282 lumen output high CRI (>93)
- Range of holographic filters that modify the shape of the beam angle
LIGHT SOURCE
- Source: 15x20W RGB + Warm White LED
- Luminous flux: 6'300 lm @full
- Lux: 4'451lx @5 m full
- CRI: > 95 @3200K ; > 93 @5600K
- R9: > 98 @3200K ; > 93 @5600K
- TLCI: > 84 @5600K
- TM30 Rf: 94.2 @3200K ; > 92 @5600K
- TM30 Rg: 104.4 @3200K ; > 105 @5600K
- Source life expectancy: > 50.000 h
OPTICS
COLOUR SYSTEM
- Colour mixing: RGBWW
- CCT: CCT control through dedicated DMX channel
- White presets: 2'800K - 10'000K
- Colour wheel: virtual colour wheel with macros
- Macros: built-in white presets
DYNAMIC EFFECTS
- Control Resolution: 16-bit dimmer, colours
- Static mode: selection of static colour
- Manual mode: manual adjustment of colour
- Auto mode: built-in programs with execution speed adjustment
BODY
- Body: sturdy die-cast aluminium body
- Body colour: RAL 9004
CONTROL
- Protocols: CRMX+W-DMX, DMX512, RDM
- Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
- RDM: RDM for remote monitoring and settings
- Display: Graphic User Interface
- Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
- IR: infrared sensor controlled by remote
- Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
- Dimmer: linear 0 ~ 100% electronic dimmer
- Dimmer curves: 4 selectable dimming modes available
- Strobe / shutter: 1 - 30 Hz, electronic
- Operating temperature: 0° ~ +45°
- LED Control: flicker free operation
- Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
- Mains power supply: 100-240V - 50/60Hz
- Max power consumption: 180W
- Power factor: >0,94
BATTERY
- Battery: 16,8V lithium
- Estimated battery life: Selectable 3h / 6h / 8h / 12h / 16h / 18h
- Re-charge connection: Directly from the mains power or magnetic fast-charge in case
- Re-charge time: 5h/max
- Battery status: shown on display
- Other: Battery recharge in AC and DC, operation in main power with possibility to disable battery recharge throught software and charging operation in flightcase
PHYSICAL
- IP rating: 65 for temporary outdoor application, not for fixed installations
- Cooling: passive cooling and fan-free
- Suspension and fixing: any position with quick-lock omega brackets
- Signal connection: IP65 Amphenol XLR 5p IN/OUT connectors
- Power connection: magnetic DC connector for battery recharge and Neutrik powerCON TRUE1 IN/OUT connectors
- Dimensions (WxHxD): 381x344x143mm
- Weight: 9,8kg
CERTIFICATIONS / APPROVALS
- Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
