NB! STRØMKABEL LEVERES UTEN STØPSEL, SE TILBEHØR FOR ALTERNATIVER

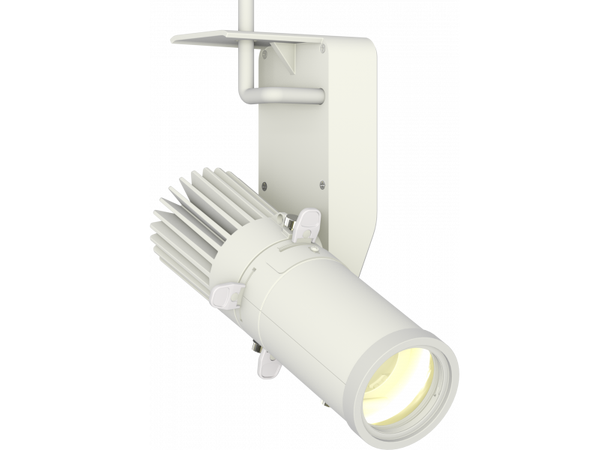

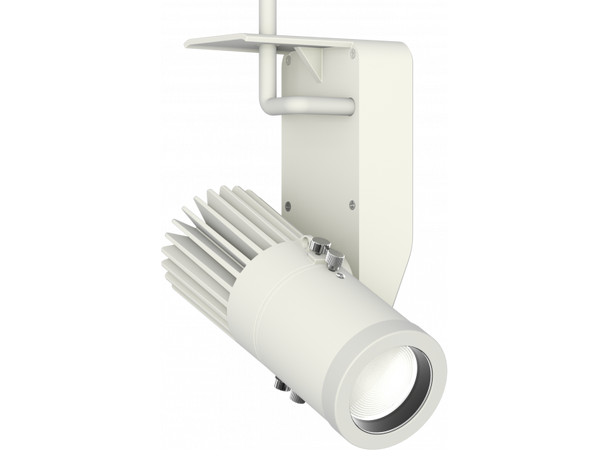

The EclMini CC connects to an external Constant Current PSU and driver (max 500mA/36V). PROLIGHTS accessories are available or, alternatively, the use any third-party compatible components is possible, leaving to system integrators to install these spotlights in venues with their own wiring distribution and control.
The EclMini CC includes a high-efficiency 18W white, high CRI LED source, available in 2,700K, 3,000K, 4,000K, 5,600K variants, with a wide choice of optics and accessories available, making it a multi-purpose fixture.
Features:Constant Current version, connects to an external PSU and driver (max 500 mA/36V)
18W High-CRI White LED available in 2,700K, 3,000K, 4,000K, 5,600K versions, black and white housing
Multiple lens options: 19° / 26° / 36° / 50° profile or zoomable 15-30° or 25-50° wash optics
LIGHT SOURCE
- Source: 18W White COB LED
- CCT: 2.700K - 3.000K - 4.000K - 5.600
- Luminous flux: (3.000K) (19°) 1.134 lm - (26°) 1.130 lm - (36°) 1.144 lm - (50°) 1.105lm
- Luminous flux: (5.600K) (19°) 1.230 lm - (26°) 1.250 lm - (36°) 1.251 lm - (50°) 1.212 lm @full
- Lux: (3.000K) (19°) 588 lx - (26°) 334 lx - (36°) 184 lx - (50°) 98lx
- Lux: (5.600K) (19°) 632 lx - (26°) 363 lx - (36°) 193 lx - (50°) 105lx
- CRI: 93 @2.700 K; 92 @3.000 K; 89@4.000 K; 93 @5.600 K
- R9: TBD
- TLCI: 84 @2.700 K; 87 @3.000 K; 89 @4.000 K; 95 @5.600 K
- TM30 Rf: > 89 @2.700 K; 3.000 K; 4.000 K; > 93 @5.600 K
- TM30 Rg: > 102 @2.700 K; 3.000 K; 4.000 K; 5.600 K
- Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS

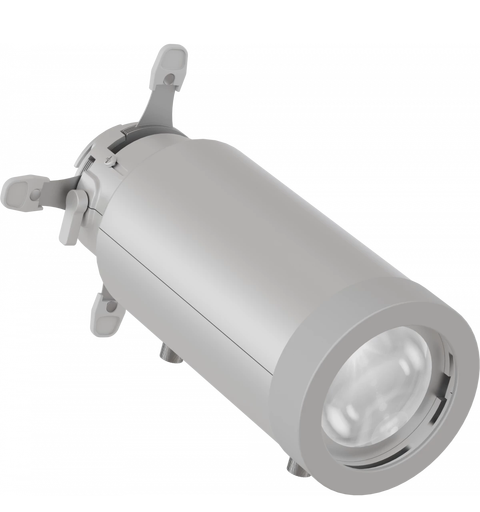

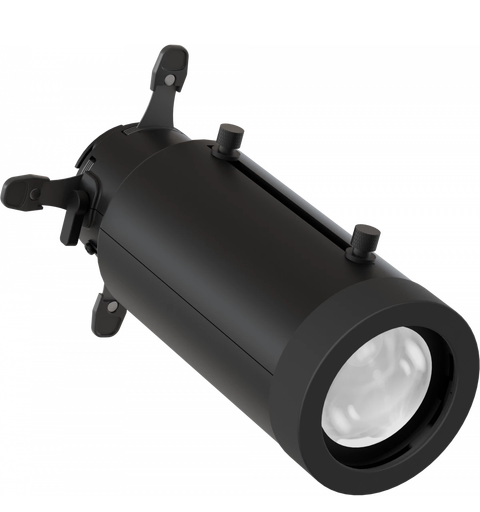

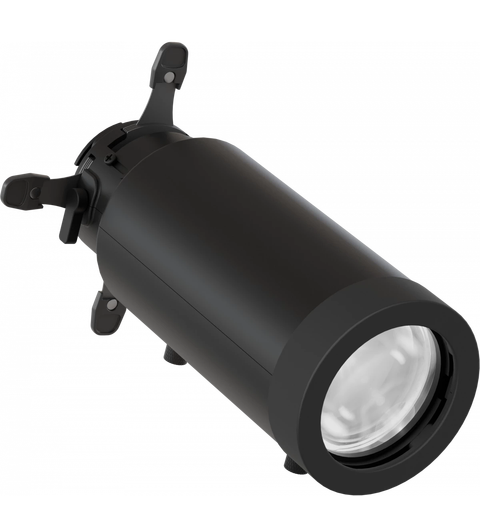

- Zoom: (wash lens - optional) 15° ~ 30° or 25° ~ 50° - (profile lens - optional) 20° ~ 40°
- Other: 360° lens rotation - optional 360° rotating barndoors and gel frame holder
- Other: (profile lens) shutter blades lockable

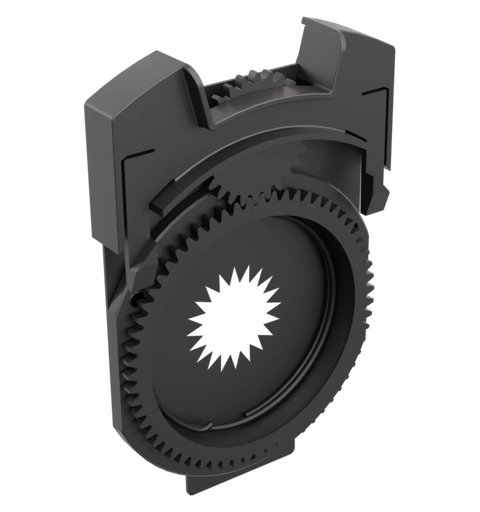

- Other: (profile lens - optional) manual rotating gobo holder size E, outer: 37 mm - image: 23 mm - thickness: max 3 mm
BODY
- Hardware on-board: lockable tilt with screw
- Body: aluminium die-casting
- Body colour: RAL 9004 or RAL 9010
- Other: 1m cable included - Cable diameter range: 6 - 10 mm
ELECTRICAL
- Constant Current mains: max 500mA/36V
- Max power consumption: 22W
PHYSICAL
- Operating Temperature: -10° ~ +45°
- IP rating: 20
- Cooling: passive cooling and fan-free
- Suspension and fixing: track / hanging / ceiling installation
- Data connection: screw terminal blocks
- Dimensions (WxHxD): 103X170x103mm
- Weight: 1kg
CERTIFICATIONS / APPROVALS
- Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT
