The Smart BatPlusG2 is a high-end version of the iconic Smart Bat uplighters designed with enhanced output and battery performance, IP65 with a stunning new look.
The clever mechanical design of the Smart BatPlusG2 allows turning the unit from an uplighter into a spot/flood light by combining filters, using the suspension yoke or floor bracket without compromising the aesthetics of the fixture.
The Smart BatPlus G2 introduces new features such as interchangeable batteries and easy covers with multiple colours, making it possible to change its look as desired.
The 4x20W RGB + Warm White LED emitters are Spektra™ calibrated and guarantee incredibly high-quality white CCT reproduction (CRI>93) and boosted output when operated directly through mains.
The Smart BatPlusG2 is very user-friendly - it can be used wirelessly with a built-in battery, CRMX/W-DMX and RDM control, or wired through the PSU and XLR connectors (bypassing the battery).

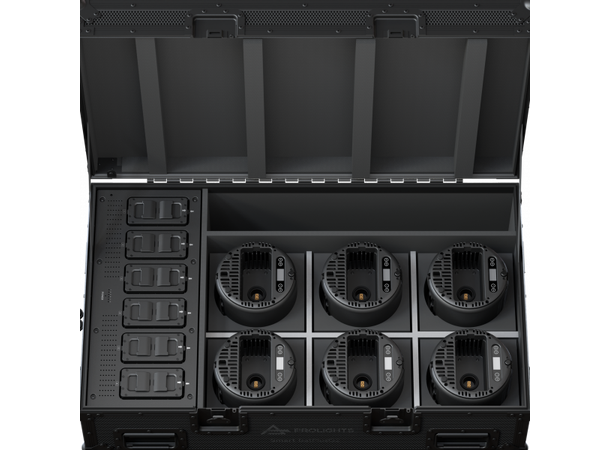

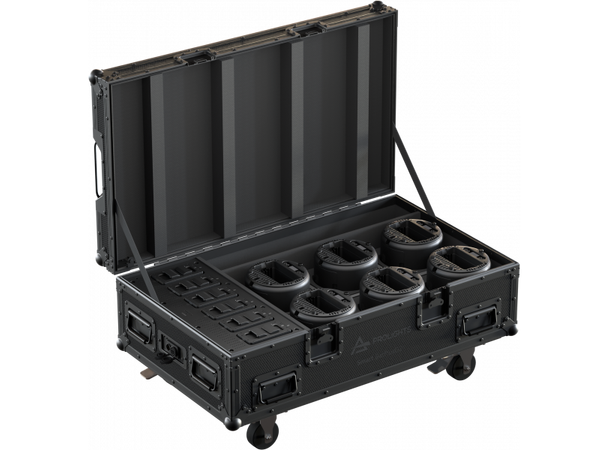

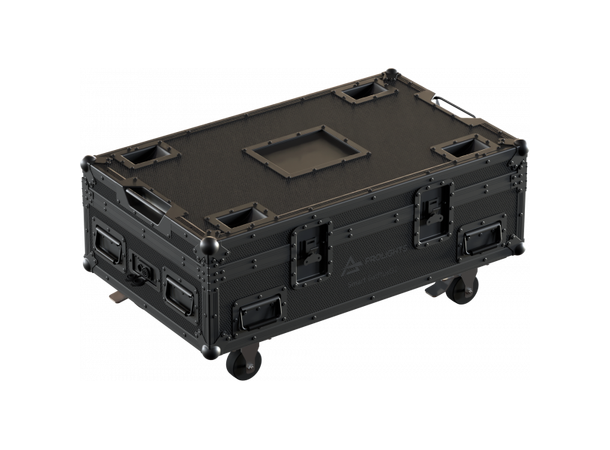

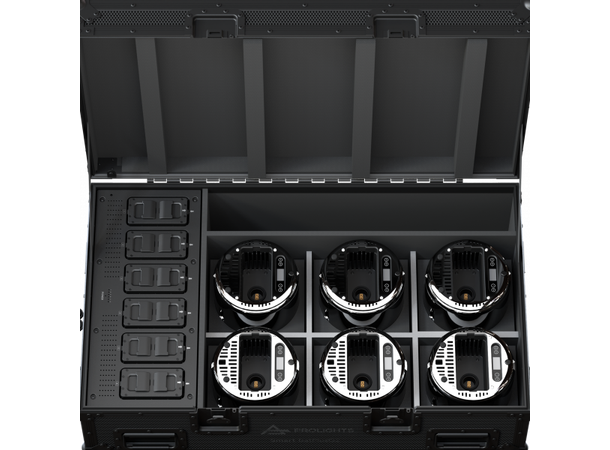

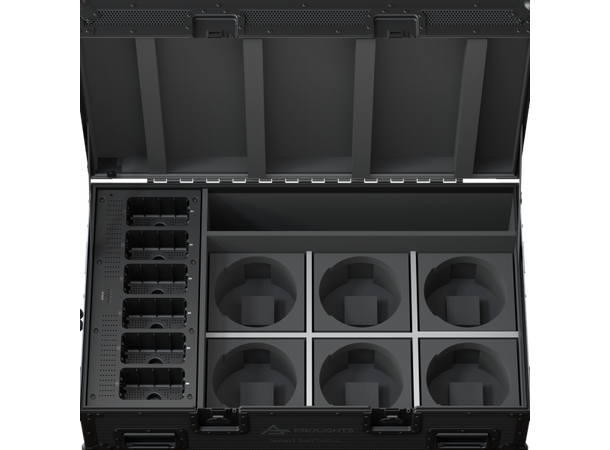

The pack includes:
- 6 x SMARTBATPLUSG2 (including 1 x filter frame, 1 x half top hat, 1 x SBPG2BAT, 1 x connector cover plate)

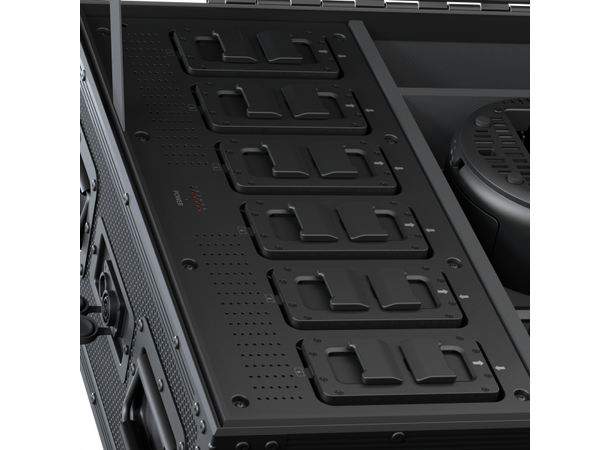

- 6 slot battery recharge
- power cable Neutrik powerCON TRUE1 IN - bare end
- user manual
Features:Multipurpose design: uplighter/spotlight, customizable colored covers
Wireless DMX (CRMX+W-DMX) / wired control, battery/PSU power
4x20W RGB + Warm White calibrated LED source with high CRI (>93)
Interchangeable battery and magnetic holographic filters for multiple beam angles
LIGHT SOURCE
- Source: 4x20W RGB + Warm White LED
- Luminous flux: 3'102lm @full
- Lux: 1'723lx @5 m without filter
- CRI: 94 @3.200 K; 92 @5.600 K
- R9: 96 @3.200 K; 96 @5.600 K
- TLCI: 92 @5.600 K
- TM30 Rf: 93 @3.200 K; 91 @5.600 K
- TM30 Rg: 105 @3.200 K; 106 @5.600 K
- Source life expectancy: > 50.000 h
OPTICS
- Beam angle: 10°
- Additional optics: filters to achieve 20°, 40°, 60°, 10°x60°
COLOUR SYSTEM
- Colour mixing: RGBWW
- CCT: CCT control through dedicated DMX channel
- White presets: 2'800K - 10'000K
- Colour wheel: virtual colour wheel with macros
- Macros: built-in white presets
DYNAMIC EFFECTS
- Control Resolution: 16-bit dimmer, colours
- Static mode: selection of static colour
- Manual mode: manual adjustment of colour
- Auto mode: built-in programs with execution speed adjustment
BODY
- Body: sturdy die-cast aluminium body
- Body colour: RAL 9004
- Other: Quick release foot to achieve 20° adjustable tilt
CONTROL
- Protocols: CRMX+W-DMX, DMX512, RDM
- Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
- RDM: RDM for remote monitoring and settings
- Display: Graphic User Interface
- Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
- IR: infrared sensor controlled by remote
- Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
- Dimmer: linear 0 ~ 100% electronic dimmer
- Dimmer curves: 4 selectable dimming modes available
- Strobe / shutter: 1 - 30 Hz, electronic
- Operating temperature: 0° ~ +45°
- LED Control: flicker free operation
- Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
- Mains power supply: 100-240V - 50/60Hz
- Max power consumption: (with mains) 80W
- Power factor: >0,98
BATTERY
- Battery: removible 16,8V lithium
- Estimated battery life: Selectable 3h / 6h / 8h / 12h / 16h / 18h
- Re-charge connection: Battery Pack fast-charge in Case
- Re-charge time: 5h/max
- Battery status: shown on display
- Other: Battery recharge in AC and DC, operation in main power with possibility to disable battery recharge throught software and charging operation in flightcase through the quick charger connector
PHYSICAL
- IP rating: 65 for temporary outdoor application, not for fixed installations
- Cooling: passive cooling and fan-free
- Suspension and fixing: bracket for hanging and positioning
- Signal connection: IP65 Amphenol XLR 5p IN/OUT connectors
- Power connection: IP65 Neutrik powerCON TRUE1 IN/OUT connectors
- Dimensions (WxHxD): 257x278x209mm
- Weight: 6kg
CERTIFICATIONS / APPROVALS
- Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
