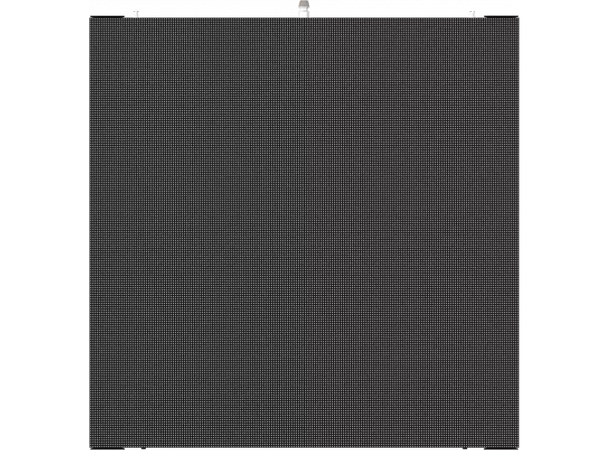

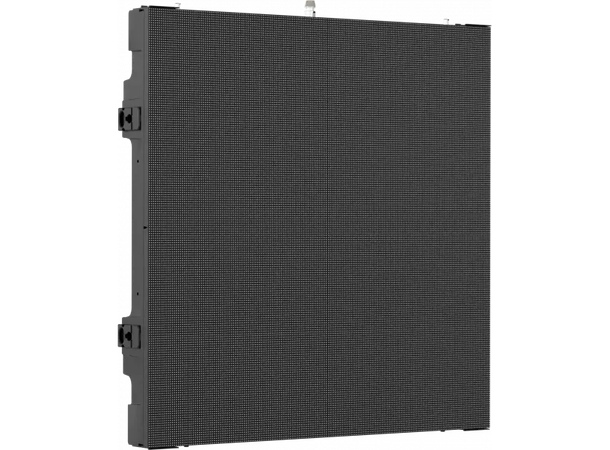

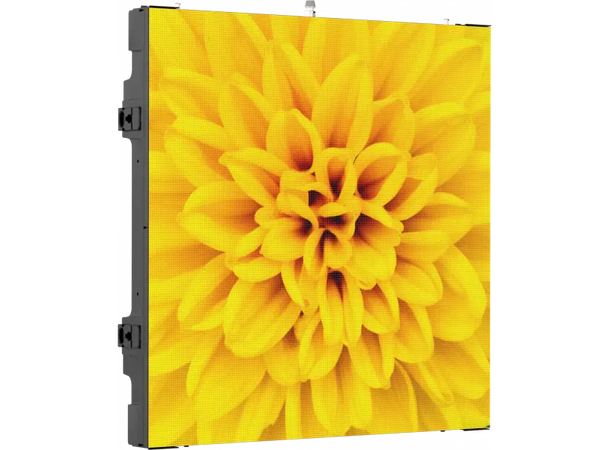

KappaPix 26B is an high standard LED screen for XR & Virtual Production with a 2,6 mm pixel pitch, designed to meet requirements for motion picture and XR studios.
KappaPix 26B uses premium components and it is equipped with Brompton R2 receiver cards on board, achieving >7680Hz Refresh rate, >251Hz image frame rate and up to 16bit grey scale, optimize behavior also in low light application.

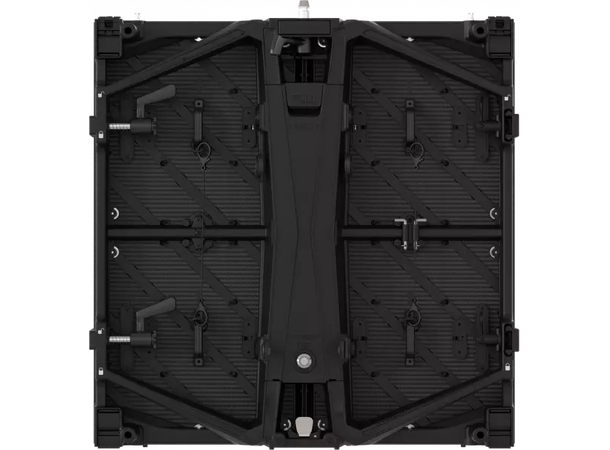

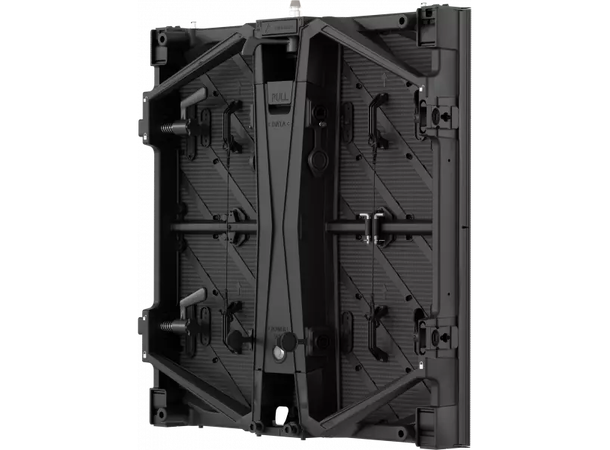

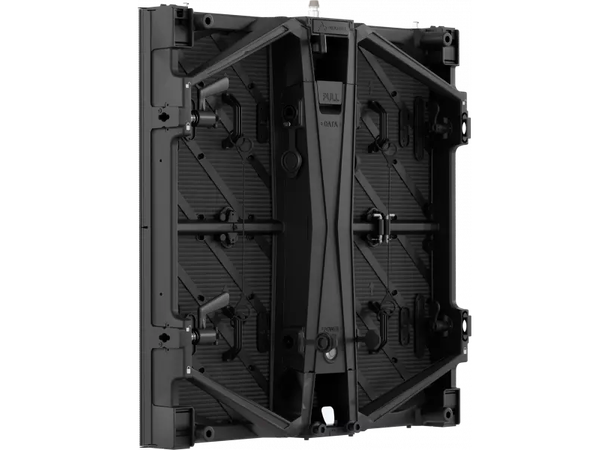

The mechanical design of the tiles has been conceived to allow fast single person installation with extra safety & handling features such automatic edge and corner protection, LED module protection.
Panel maintenance has been furtherly enhanced allowing modular and tool free maintenance for LED modules and the PSU unit.
KappaPix 26B can be also curved concave and convex +10° / -5° through high precision curving plates. The cabinet, built into magnesium alloy are exceptionally lightweight with 6.3 kg per panel and 25,2 kg per sqm.
Features:XR/VP Led screen with R2 Control system and >7680Hz Refresh rate
Single person installation, automatic edge & corner protection
Fast LED Module and PSU replacement
Curving plates concave and convex +10° / -5°
Up to 16bit grayscale and 251Hz Image frame rate
VIDEO
- Driver chip type: MBI 5264
- LED source: Nationstar SMD 1515 full black
- Pixel pitch: 2,6mm
- Panel resolution: 192x192pixels
- Module resolution: 96x96pixels
- Luminous flux: 1.200nit
- Contrast: 6.000:1
- Grayscale: 16 bit
- Refresh rate =: 7.680Hz
- Frame rate: 251 Hz
- Drive Mode: 1/16 scan, constan current
- Vertical viewing angle: 160°
- Horizontal viewing angle: 160°
- LED density: 147.456LED/sqm
- Dead Pixel Ratio: <0,002
- LED avg life span: 100.000
ELECTRICAL
- Power input/output: IP65 Neutrik powerCON
- Power supply: AC 110/230 V 50/60 Hz
- Max power consumption (panel): 160W
- Avg power consumption (panel): 55W
- Max power consumption (sqm): 640W
- Avg power consumption (sqm): 220W
- Standby power consumption (pannello): 55W
- Max rated current/panel:: AC 220 V / 0.73 A
- Working temperature: -10°C / +45°C
- Working humidity: 10~80 RH%
CONTROL
- Receiving card type: R2
- Control protocol: Brompton
- Signal input: waterproof Neutrik RJ45
- Signal output: waterproof Neutrik RJ45
MECHANICS
- Magnetic LED modules: available
- Other specifics: curve configurations with blocks, corner protection, auto-lock mechanics, calibration chip on LDM
- Module size (WxH): 250x250mm
- Panel size(WxHxD): 500×500×70.1mm
- Vertical hanging system: built-in aliscaf clamp support
- Cooling: natural cooling of the peculiar chassis and to absence of fans
- Connection: seamless locking system
- Curvability: -5 ° convex accessories, see available ° - +10° concave accessories, see available°
- Body: die-cast magnesium housing
- Color: black
- IP rating: IP30 (front and rear)
- Panel weight: 6,3kg
- Weight per square meter: 25,2kg
- Hanging Panel Quantity =: 20 for hanging and 12 for stacking
- Compliant Standard: CE, UKCA, cURus
