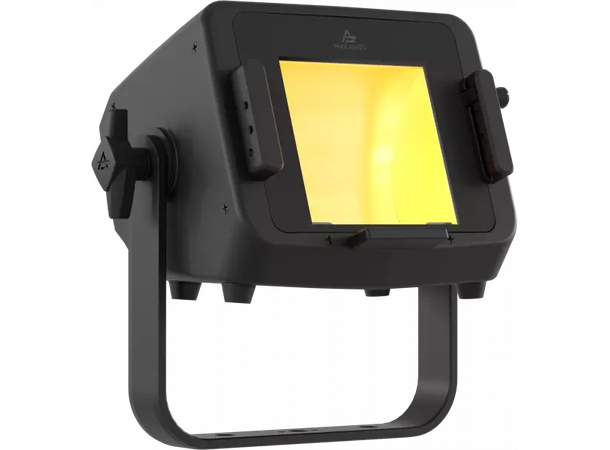

The EclExpo Flood150 is a compact, bright, and versatile floodlight that is designed to be a substitute for traditional CDM, HMI, and tungsten small floods in tradeshows, theaters, or as a work light. Just like its classic predecessors, but with a custom LED source, this unit features a linear light source combined with a reflector, which ensures a wide coverage of 100° (Horizontal) x 60° (Vertical) of indirect light emission.
The EclExpo Flood150 is available in two source variants:
- FC, which utilizes RGB+WarmWhite calibrated LED with high Color Rendering.

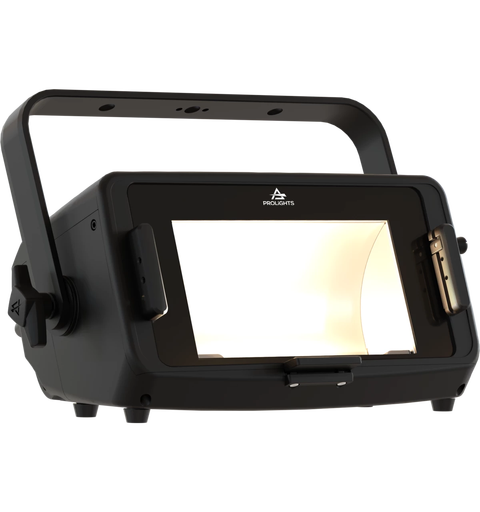

- VW, which uses a bi-color Vari White LED source with a CCT range of 2,700K-6,500K.
This unit is incredibly user-friendly, offering immediate stand-alone access through the knobs or through wired DMX/RDM or Wireless CRM (optional). Timeless Elegance meets Green Innovation: The EclExpo Flood150 - Where Classic Beauty Embraces Modern Technology
Features:150W calibrated RGB+WarmWhite source, with high CRI and TM30
Asymmetric beam angle of 100° (horizontal) x 60° (vertical)
Xlr5p in/through for DMX/RDM control and communication, optional W-DMX + CRMX, Stand-Alone mode through two rotatory knobs
LIGHT SOURCE
- Source: 150W RGB + Warm White LED
- Luminous flux: 5'342lm @full
- Lux: 65lx @5 m full
- CRI: preliminary 92,8 @5'600K
- R9: preliminary 94,7 @5'600K
- TLCI: preliminary 92 @5'600K
- TM30 Rf: preliminary 91,3 @5'600K
- TM30 Rg: preliminary 106 @5'600K
- Source life expectancy: > 20.000 h
OPTICS
- Optics: asymmetrical beam reflector in pure aluminium 99,6%
- Beam angle: (H) 100° x (V) 60°
- Additional optics: 5° smooth filter on-board
COLOUR SYSTEM
- Colour mixing: RGB + Warm White
- CCT: CCT control, + / - green correction, tungsten emulation
- White presets: 2.800 K - 10.000K
- Colour wheel: built-in white presets
DYNAMIC EFFECTS
- Control Resolution: 16-bit dimmer
- Static mode: selection of static dimmer, colors and color temperature
- Manual mode: manual adjustment of intensity, CT, colour correction from knob
- Auto mode: built-in programs with execution speed adjustment
BODY
- Body: sturdy die-cast magnesium body
- Body colour: RAL 9004
- Other: see available accessories
CONTROL
- Protocols: DMX512, RDM, CRMX
- Stand Alone: 2 rotatory knobs
- DMX channels: 1/2/5/9/10/12/18channel
- Wireless Control: optional, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
- RDM: RDM for remote monitoring and settings
- Display: Graphic User Interface
- Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
- Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
- Dimmer: linear 0 ~ 100% electronic dimmer
- Dimmer curves: 4 selectable dimming modes available
- Strobe / shutter: 1 - 30 Hz, electronic
- Operating temperature: -10° ~ +45°
- Selectable PWM: 600 ~ 40.000 Hz
ELECTRICAL
- Mains power supply: 100-240V - 50/60Hz
- Max power consumption: 154W
- Output (at 230V): 7 units on a single power line
- Power factor: > 0,94
PHYSICAL
- IP rating: 20
- Cooling: active, silent operation
- Suspension and fixing: bracket for hanging and positioning

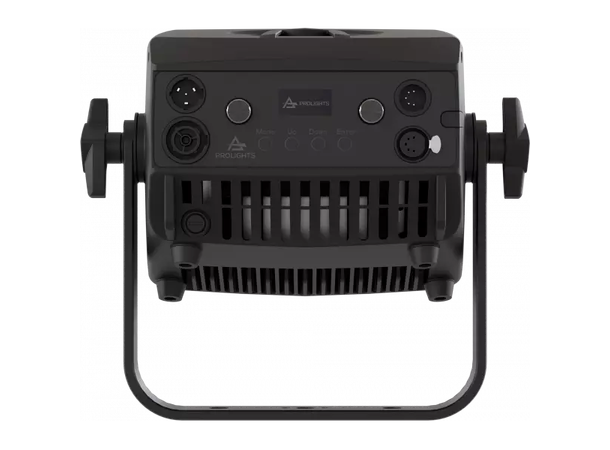

- Signal connection: Amphenol XLR 5p IN/OUT connectors
- Power connection: Seetronic powerCON TRUE IP65 IN/OUT

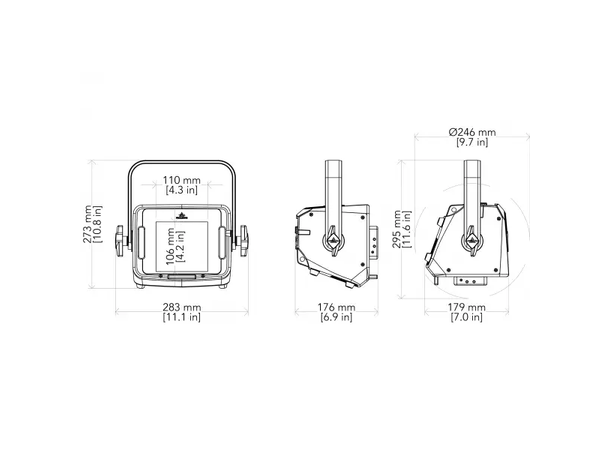

- Dimensions (WxHxD): 283x273x176mm
- Weight: 3,2kg
CERTIFICATIONS / APPROVALS
- Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT- 1 x ECLEXPOFL150FC
- 1 x 1,5 meters power cable (BARE END - SEETRONIC POWERCON TRUE1 IP65)
- 1 x User Manual
