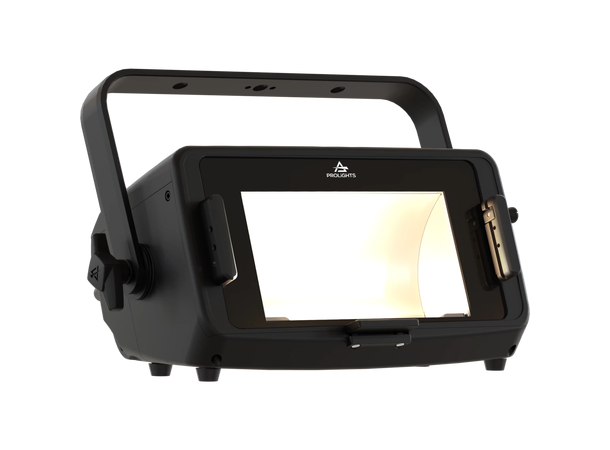

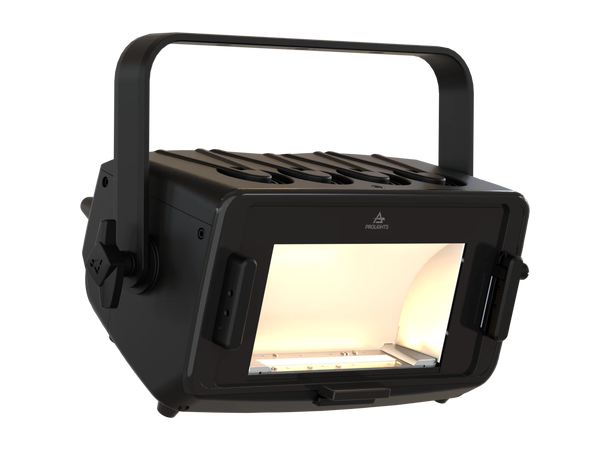

IP65 150W asymmetric LED floodlight, with Variable White CCT 2,700K - 6,500K
The EclExpo Flood150 IP is an IP65 high power LED Floodlight, designed for indoor and outdoor installations, as a high-quality LED replacement of traditional tungsten, CDM or HMI asymmetric floods.
Combined with a reflector, it has a wide asymmetric beam angle of 100° (Horizontal) x 60° (Vertical) of indirect light emission.
The EclExpo Flood150 IP is available in two source variants:
the EclExpo Flood150 IP FC has a calibrated 150W RGB+WarmWhite LED source, ensuring high-quality white reproduction across the entire CCT with high CRI and TM30 and advanced control over colours;
the EclExpo Flood150 IP VW has a 150W LED source, with variable white ranging from 2,700K to 6,500K, and an outstanding lumen output with high-scoring CRI levels (>95), TM-30, R9.
This unit is incredibly user-friendly, using remote control via DMX and RDM, on-board W-DMX + CRMX or intuitive stand-alone operation through an on-board display and two rotatory knobs CCT, colours and dimmer settings.
Its unique design and performance set a new standard for outdoor exhibition floodlights.
Technical specifications
LIGHT SOURCE
- Source: 150W Variable White LED
- CCT: 2.700 K - 6.500 K
- Luminous flux: @2.700K 7'233 lm; @6.500K 9'777 lm; @full 8'928
- Lux: @2.700K 81 lx; @6.500K 110 lx; @full 100lx @5 m
- CRI: 94,9 @2.700 K; 93,8 @6.500 K; 93.8 @full
- R9: 97,4 @2.700 K; 88,3 @6.500 K; 78,8 @full
- TLCI: 97 @2.700 K; 94 @6.500 K; 98 @full
- TM30 Rf: > 93,6 @2.700 K; > 88,6 @6.500 K; > 91,5 @full
- TM30 Rg: < 101,4 @2.700 K; < 98,1 @6.500 K; < 101,6 @full
- Source life expectancy: > 30.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
- Optics: asymmetrical beam reflector in pure aluminium 99,6%
- Beam angle: (H) 100° x (V) 60°
COLOUR SYSTEM
- Colour mixing: tunable white
- CCT: CCT control through dedicated DMX channel
- White presets: 2.700 K - 6.500K
- Colour wheel: built-in white presets
DYNAMIC EFFECTS
- Control Resolution: 16-bit dimmer
- Static mode: selection of static dimmer and color temperature
- Manual mode: manual adjustment of intensity and CT from knob
- Auto mode: built-in programs with execution speed adjustment
BODY
- Body: sturdy die-cast magnesium body
- Body colour: RAL 9004
- Other: see available accessories
CONTROL
- Protocols: DMX512, RDM, CRMX
- Stand Alone: 2 rotatory knobs
- DMX channels: 1 / 2 / 3 / 5 / 11channel
- Wireless Control: Included LumenRadio Timo Fx DMX/RDM receiver compatible with CRMX (Lumen Radio) and W-DMX
- (Wireless DMX)
- RDM: RDM for remote monitoring and settings
- Display: Graphic User Interface
- Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
- Master/Slave: for synchronised operation of more units linked in a chain
- ELECTRONICS
- Dimmer: linear 0 ~ 100% electronic dimmer
- Dimmer curves: 4 selectable dimming modes available
- Strobe / shutter: 1 - 30 Hz, electronic
- Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
- Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
- Mains power supply: 100-240V - 50/60Hz
- Max power consumption: 175W
- Standby power: 1,9 W
- Output (at 230V): 7 units on a single power line
- Power factor: > 0,99
PHYSICAL
- IP rating: IP65 for temporary outdoor application, not for fixed installations

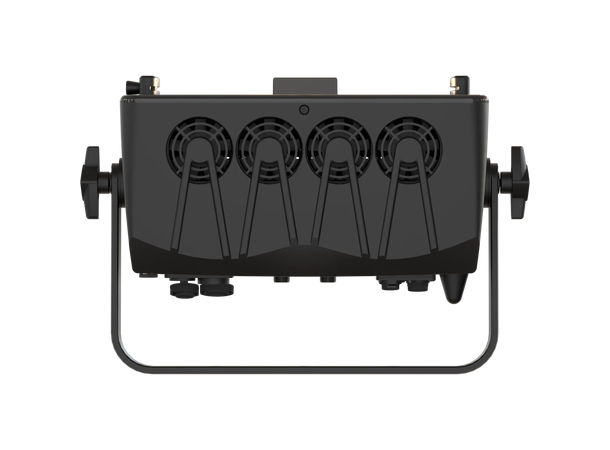

- Cooling: active, silent operation

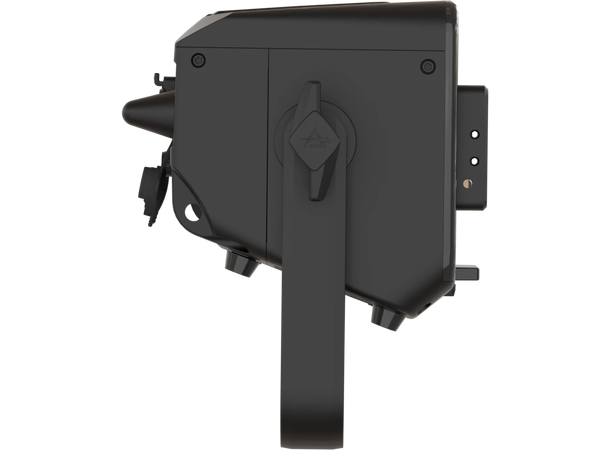

- Suspension and fixing: bracket for hanging and positioning

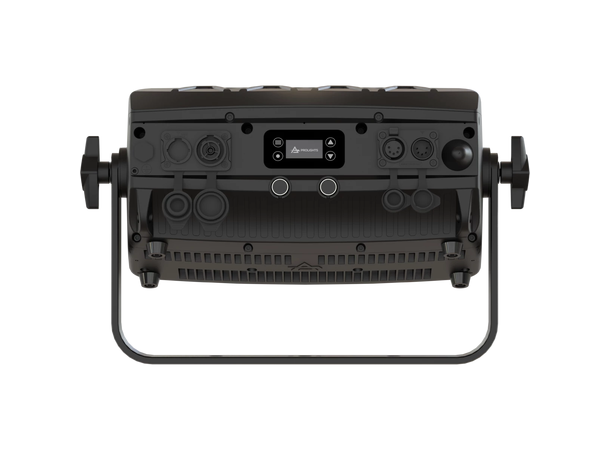

- Signal connection: IP65 Seetronic XLR 5p IN/OUT connectors
- Power connection: Seetronic powerCON TRUE IP65 IN/OUT
- Dimensions (WxHxD): 283x273x176mm / 11.14''x10.75''x6.93''
- Weight: 4,2kg / 9.26lbs
CERTIFICATIONS / APPROVALS
- Certifications / Approvals: CE, RCM
BOX CONTENT
- 1 x ECLEXPOFL150IPVW
- 1 x 1,5 meters 3G1,5mmq power cable (BARE END - SEETRONIC POWERCON TRUE1 IP65 power connector)
- User Manual
