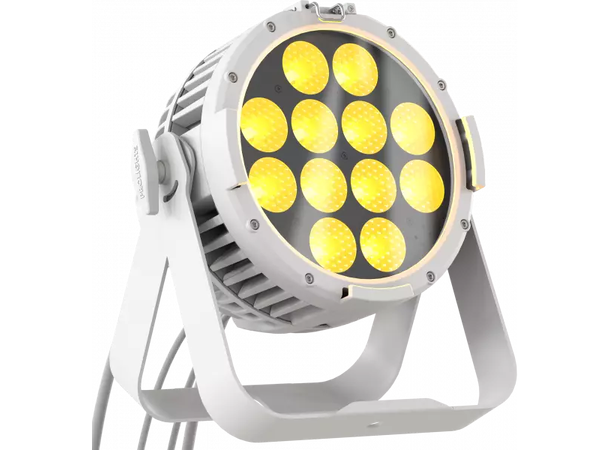

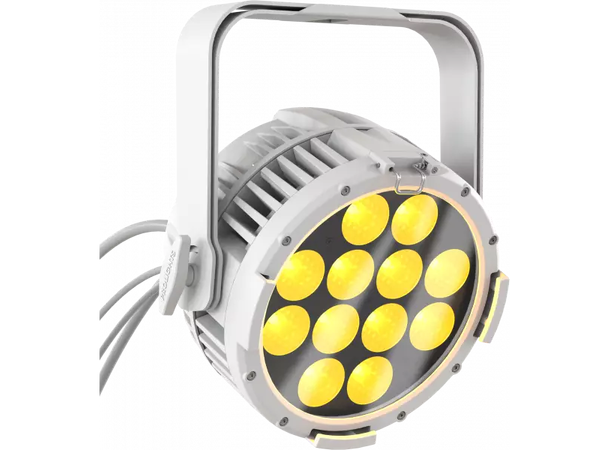

LumiPar 12IP is a bright and flexible IP LED PAR made for concerts, theatres and to perform as an architectural accent light for outdoor events. The housing in die-cast aluminium is designed to feature both as a robust workhorse and being totally fan-free allows for total silence during operation.
Features:IP65 die-cast aluminium housing
12x9W RGBW LED PAR
Fan-free and flicker-free
Filter frame included
LIGHT SOURCE
- Source: 12x9W RGBW LEDs
- Luminous flux: (25°) 3'900 lm - (45°) 6'700lm
- Lux: (25°) 2'535lx @3 m full
- Lux: (45°) 1'154lx @3 m full
- Source life expectancy: > 50.000 h
OPTICS
- Beam angle: available in 25° or 45°
- Field angle: 36° or 60°
COLOUR SYSTEM
- Colour mixing: RGBW / FC
- White presets: 3.000 K ~ 10.000K
- Colour wheel: virtual colour wheel with macros
- Macros: built-in white presets
DYNAMIC EFFECTS
- Static mode: selection of static colour
- Manual mode: manual adjustment of colour
- Auto mode: built-in programs with execution speed adjustment
BODY
- Body: sturdy die-cast aluminium body
- Body colour: RAL 9010
- Other: display cover
CONTROL
- Protocols: DMX512
- DMX channels: 4 / 6 / 11channel
- Display: black OLED touch display
- Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
- Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
- Dimmer: linear 0 ~ 100% electronic dimmer
- Dimmer curves: 4 selectable dimming modes available
- Strobe / shutter: 0 - 30 Hz, electronic
- Operating temperature: -20° ~ +45°
- LED Control: flicker free operation
- Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
- Mains power supply: 100-240V - 50/60Hz
- Max power consumption: 110W
- Max power consumption (at 120V): 110W
- Output (at 230V): 33 units on a single power line
- Output (at 120V): 18 units on a single power line
PHYSICAL
- IP rating: 65 for temporary outdoor application, not for fixed installations
- IK rating: 07
- Cooling: passive cooling and fan-free
- Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning

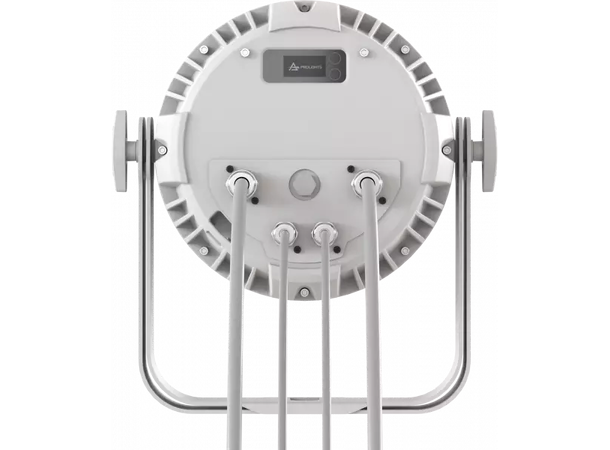

- Signal connection: moulded IP signal IN/OUT connectors
- Power connection: moulded IP power IN/OUT connectors
- Dimensions (WxHxD): 305x326x177mm
- Weight: 6,2kg
CERTIFICATIONS / APPROVALS
- Certifications / Approvals: CE, RCM
