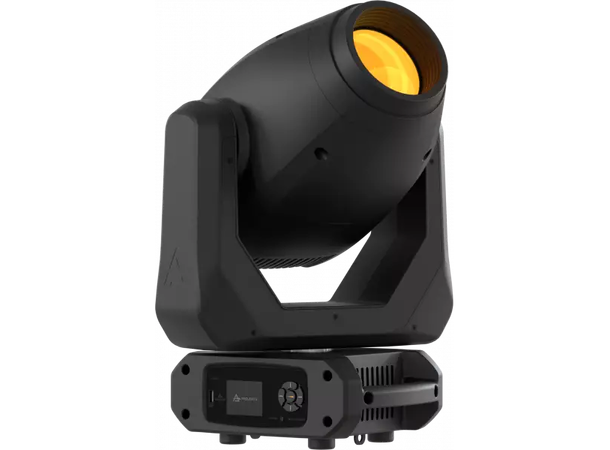

Jet Hyb200 is a budget-friendly, hybrid beam-spot moving light, offering high-quality and powerful output in a compact design.
Tailored for both mid-air effects and image projections, it boasts an impressive 8,000-lumen output from a 200W LED source. Its fast zoom ranges from 3.5° to 40°, making it an excellent replacement to compact discharge hybrid fixtures.
The Jet Hyb200's dynamic effects suite includes a color wheel with 13 dichroic filters, two gobo wheels featuring 8 rotating and 17 static gobos, along with prism and frost capabilities for diverse creative needs.
Features:Beam-Spot hybrid moving light with 200W LED source
Linear zoom ranging from 3.5° to 40°
15 kg
LIGHT SOURCE
- Source: 200W high-power white LED
- CCT: 7.000
- Luminous flux: (3,5°) 5'962 lm - (40°) 7'593lm
- Lux: (3,5°) 69'503 lx - (40°) 1'461lx @5 m full
- CRI: > 70 (CCT 6000K and CRI > 84 with filter on color wheel)
- Source life expectancy: > 30.000 h
OPTICS
- Zoom: 3,5° - 40° motorised linear zoom
- Lens diameter: 100mm
- Lens type: HD anti-reflection lenses with achromatic coating
- Focus: motorised
COLOUR SYSTEM
- CCT: on wheel 3.200 K
- Colour wheel: 11 colour filters
- Colour wheel: High CRI colour filters
DYNAMIC EFFECTS
- Control Resolution: 16-bit dimmer
- Rotating gobos: 8 rotating gobos + open, interchangeable, indexing
- Gobo size: outer: 13,9 mm - image: 11 mm - thickness: up to 3 mm
- Fixed gobos: 17 fixed gobos + open
- Circular prism: 5f with bi-directional rotation, indexing

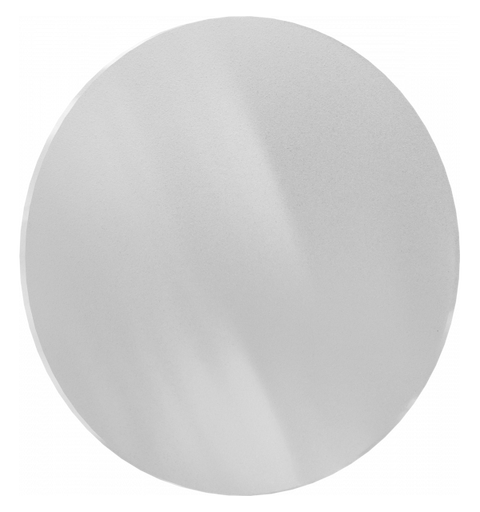

- Frost: linear 0 - 100% light frost filter, interchangeable
BODY
- Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
- Pan angle: 540°
- Tilt angle: 260°
- Pan/Tilt resolution: bit 8 / 16-bit
- Feedback: automatic repositioning after accidental movement
- Body: aluminium structure with high-resistance polycarbonate cover
- Body colour: RAL 9004
CONTROL
- Protocols: DMX512, RDM
- DMX channels: 20channel
- RDM: RDM for remote monitoring and settings
- Display: LCD high resolution colour display with autoflip
- Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX2) not included or via USB pen drive
ELECTRONICS
- Dimmer: linear 0 ~ 100% electronic dimmer
- Dimmer curves: 4 selectable dimming modes available
- Strobe / shutter: 1 - 30 Hz, electronic
- Display battery: self-charging battery backup
- Operating temperature: -10° ~ +45°
- LED Control: flicker free frequency with adjustable PWM
- Selectable PWM: 600 ~ 50.000 Hz
ELECTRICAL
- Mains power supply: 100-240V - 50/60Hz (max absolutes range: 90-264V - 50/60Hz)
- Max power consumption: 276W
- Output (at 230V): 8 units on a single power line
- Power factor: > 0,94
PHYSICAL
- IP rating: 20
- Cooling: combination of heat pipe cooling system and low noise fan
- Suspension and fixing: any position with quick-lock omega brackets
- Pan / tilt lock: for transportation and maintenance
- Signal connection: Neutrik IP XLR 5p IN/OUT connectors
- Power connection: Neutrik powerCON TRUE1 IN/OUT connectors

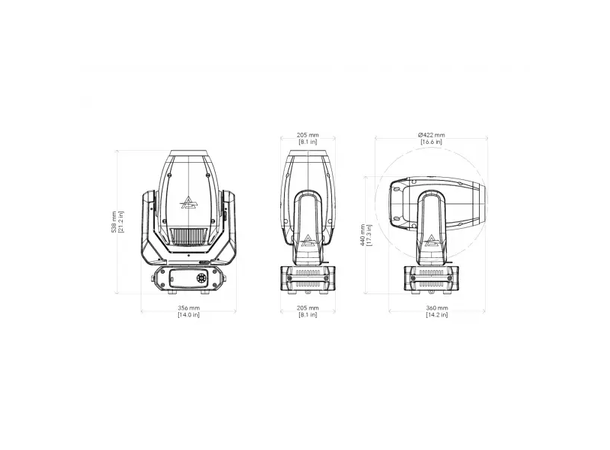

- Dimensions (WxHxD): 356x538x205mm
- Weight: 15kg
CERTIFICATIONS / APPROVALS
- Certifications / Approvals: CE, RCM, FCC, cTUVus
BOX CONTENT- 1 x JETHYB200
- 1 x OS24PLUS
- 1 x 1,5 meters power cable (BARE END - SEETRONIC IP65 power connector)
- User manual
