NB! STRØMKABEL LEVERES UTEN STØPSEL. SE TILBEHØR FOR ALTERNATIVER

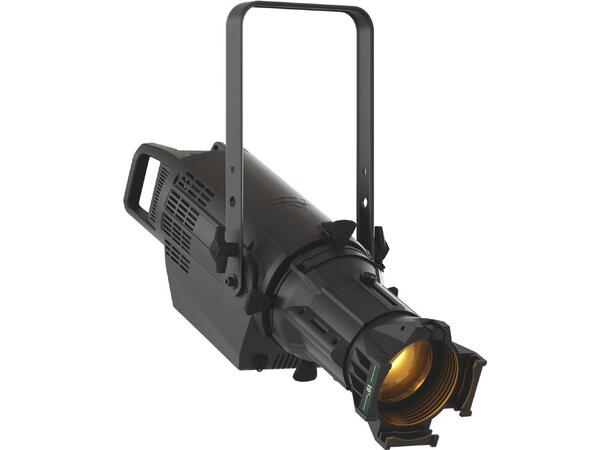

The EclProfile CT+HP, a more powerful variant of the iconic PROLIGHTS LED ellipsoidals, boasting 400 Watts of fixture power, effectively doubling the lumen output and furtherly elevating color rendering while maintaining the same 6-colors LED sources. The LED source is controlled and calibrated by the advanced Spektra Os for unparalleled performance.
This model retains the use of high-definition fixed and zoomable PRL lenses, consistent with the entire PROLIGHTS ellipsoidal range. It also maintains cross-compatibility with standard industry optics and accessories, simplifying the process for users to upgrade or supplement their existing inventory. Versatility is a key attribute of the EclProfile CT+HP, with availability in both indoor and outdoor IP65 variants. The projector features an upgraded user interface, including a larger display and four backlit pushable encoders, enhancing user experience during fixture setup and stand-alone operations. With these advancements, the EclProfile CT+HP positions itself as the premier choice of LED ellipsoidal for Theatre, TV, and film production, offering an unmatched combination of power, precision, and versatility.
LIGHT SOURCE
- Source: 400W 6 colour LEDs source
- Luminous flux: (26°) 13’327 lm @4.000 K
- Lux: (26°) 3’477lx @5m @4.000 K
- CRI: 93,5 @3.200 K; 94,7 @5.600 K
- R9: up to 92
- TLCI: 93 @3.200 K; 97 @5.600 K
- TM30 Rf: > 94 @3.200 K; >94 @5.600 K
- TM30 Rg: < 105 @3.200 K; < 105 @5.600 K
- Source life expectancy: > 50.000 h
OPTICS
- Lens type: high-quality glass lens optics

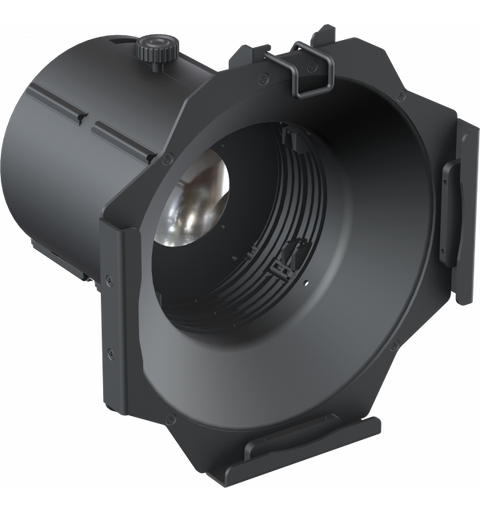

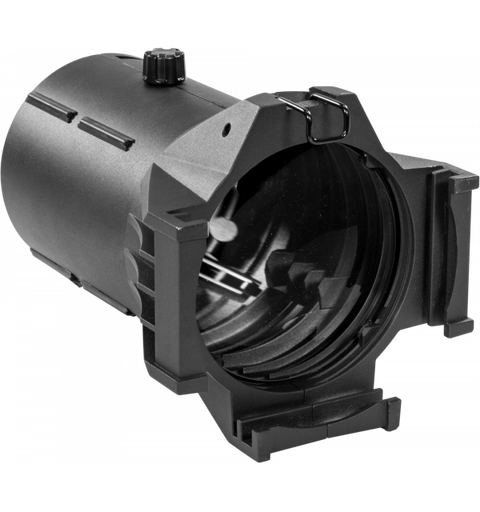

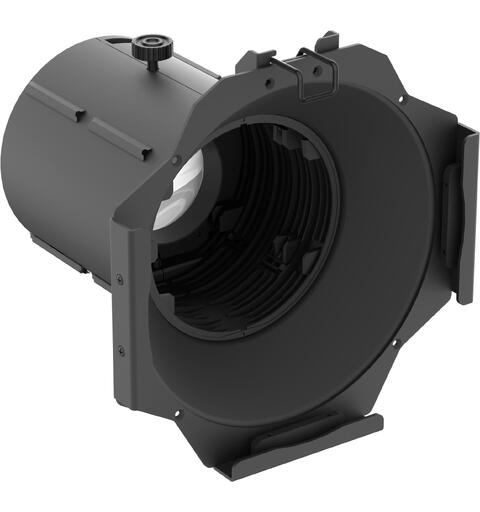

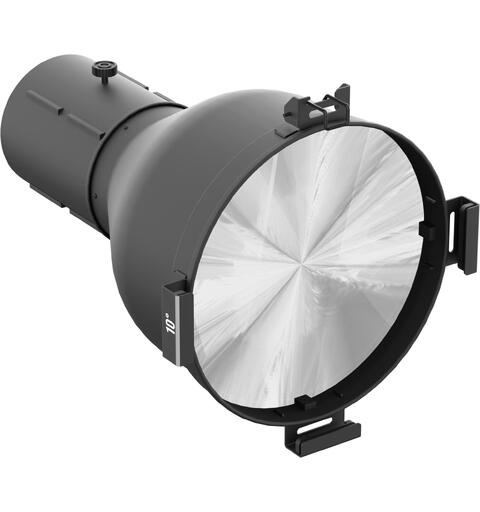

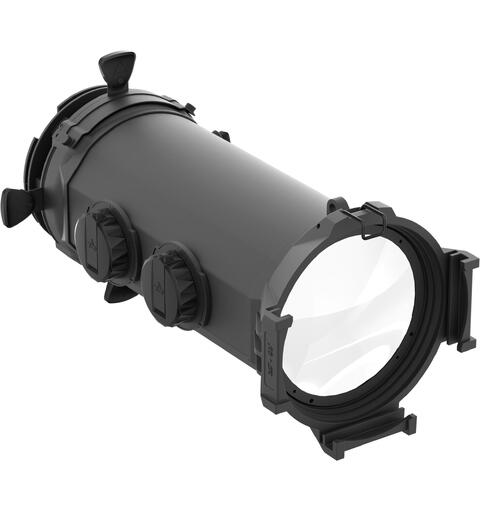

- Additional optics: optional 5° / 10° / 14° / 19° / 26° / 36° / 50° / 70° /90° zoom 15°-30° / zoom 25°-50°
- Focus: manual
- Other: see available accessories
COLOUR SYSTEM
- Colour control: XY, CCT, RGBW, Gel, HSI, Source Emulation, colour macros, CTO on colours
- CCT: CCT control range from 1.800K to 20.000K, + / - green correction, tungsten emulation
- Colour wheel: LEE filter emulation and RGB / HSI / CMY input mode selectable
DYNAMIC EFFECTS
- Rotating gobos: optional, see available accessories
- Gobo size: B, outer: 86 mm - image: 64,5 mm - thickness: 1,1 mm
- Special features: 4 fan modes available and output management and linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
- Body: sturdy die-cast magnesium body
- Body colour: RAL 9004
CONTROL
- Protocols: DMX512, RDM, CRMX
- Stand Alone: 4 pushable RGB backlit encoder"
- Wireless Control: optional, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
- RDM: RDM for remote monitoring and settings
- Display: Graphic User Interface
- Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX2) not included (through dedicated software)
- Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
- Dimmer: linear 0 ~ 100% electronic dimmer
- Dimmer curves: 4 selectable dimming modes available
- Strobe / shutter: 1 - 25 Hz, electronic
- Operating temperature: -10° ~ +45°
- LED Control: flicker free operation
- Selectable PWM: 600 ~ 40.000 Hz
ELECTRICAL
- Mains power supply: 100-240V - 50/60Hz
- Max power consumption: 400W
- Output (at 230V): 7 units on a single power line
- Power factor: > 0,94
PHYSICAL
- IP rating: 20
- Cooling: combination of heat pipe cooling system and low noise fan
- Suspension and fixing: bracket for hanging and positioning
- Signal connection: Amphenol XLR 5p IN/OUT connectors
- Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
- Dimensions (WxHxD): 292x249x453mm / 11.5’’x9.8’’x17.83’’
- Weight: 8kg / 17.64lbs
CERTIFICATIONS / APPROVALS
- Certifications / Approvals: CE, RCM, FCC, cTUVus"
