NB! STRØMKABEL LEVERES UTEN STØPSEL. SE TILBEHØR FOR ALTERNATIVER

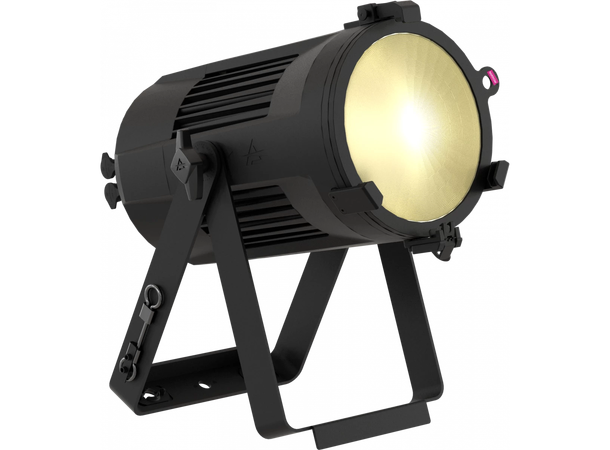

IP65 single source 300W VariableWhite LED spotlight, 15° optics included
The EclPar IPLVW stands as a high-performance, IP-rated single source LED spotlight, tailored for grand-scale events such big shows, large exhibitions, and high-ceiling studio applications. This robust fixture is powered by a 300W Variable White light source, capable of producing up to 15,000 fixture lumens with remarkable efficiency and advanced control.
EclPar IPLVW excels in delivering superior white light reproduction with variable CCT, boasting high output and high CRI and TM30 values. Its compact and silent design renders the EclPar IPLVW an indispensable tool for both indoor and outdoor stages, blending seamlessly into various environments. The fixture's versatility is further enhanced by its flexible optical system, accommodating a broad range of lenses. These include a narrow 15° lens (onboard), medium 30°, and a wide 60° flood option. Additionally, it supports asymmetric filters and optical modifiers, all swiftly attachable via dedicated accessory holders, allowing for swift adaptation to diverse lighting requirements.
Main features:
- 300W Variable White LED delivering high CRI, TLCI, TM30 values
- Flex lens system: 15° on-board - 30° , 60° and asymmetric optional
- IP65 for exterior application
Technical specifications
LIGHT SOURCE
- Source: 300W Variable White LED
- Luminous flux: (22°) 17'691 lm@ 3.200K; 20'629 lm @5.600 K
- Lux: (22°) 3'630@5 m 3.200K; 4'200lx @5 m 5.600 K
- CRI: 97,5 @3.200K; 98,4 @5.600K
- R9: 98 @3.200K; 98 @5.600K
- TLCI: 98 @3.200K; 99 @5.600K
- TM30 Rf: 96 @3.200K; 95 @5.600K
- TM30 Rg: 102 @3.200K; 101 @5.600K
- Source life expectancy: > 50.000 h
OPTICS
- Beam angle: (on-board) 15° - (opt) 30°, 60°
- Field angle: (on-board) 24°
- Lens diameter: 172mm / 6.77''
- Lens type: parabolic reflector in combination with HD fresnel lens
- Additional optics: (opt) 30°, 60°
- Other: possible to mount lens both on the internal side and on the external side
COLOUR SYSTEM
- Colour mixing: tunable white
- CCT: CCT control through dedicated DMX channel
- White presets: 2.700 K ~ 6.500K
- Macros: built-in white presets
- DYNAMIC EFFECTS
- Static mode: selection of static dimmer and color temperature
- Manual mode: manual adjustment of colour
- Auto mode: built-in programs with execution speed adjustment
- BODY
- Body: sturdy die-cast aluminium body
- Body colour: black
- Other: Front mount holder for accessories as barn door, filter frame
CONTROL
- Protocols: DMX512, RDM, CRMX (optional)
- Stand Alone: 3 RGB backlight push-encoders
- DMX channels: 1 / 2 / 4 / 5 / 9 / 11channel
- Wireless Control: optional, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX
- (Wireless DMX)
- RDM: RDM for remote monitoring and settings
- Display: Graphic User Interface
- Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
- Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
- Dimmer: linear 0 ~ 100% electronic dimmer
- Dimmer curves: 4 selectable dimming modes available
- Strobe / shutter: 1 - 30 Hz, electronic
- Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
- LED Control: flicker free operation
- Selectable PWM: 600 ~ 40.000 Hz
ELECTRICAL
- Mains power supply: 100-240V - 50/60Hz
- Max power consumption: 340W
- Standby power: 2,2 W
- Output (at 230V): 6 units on a single power line
- Power factor: > 0,94
PHYSICAL
- IP rating: IP65 for temporary outdoor application, not for fixed installations
- Cooling: active, with IP low noise fan
- Suspension and fixing: hanging bracket with quick lock system designed for use with OMEGA bracket or floor stand (accessory),
- hanging system through eye bolt

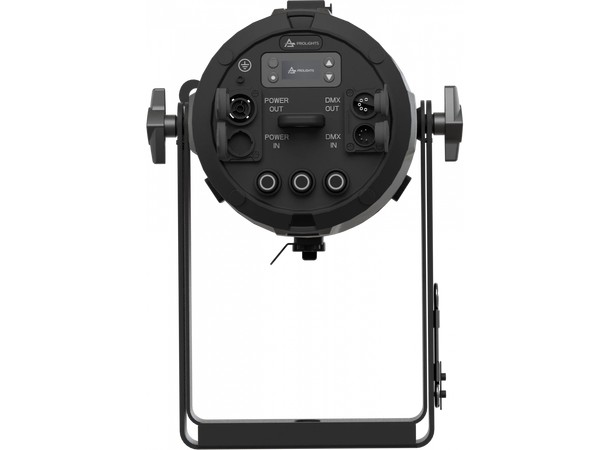

- Signal connection: Seetronic XLR 5p IN/OUT connectors
- Power connection: Seetronic powerCON TRUE IP65 IN/OUT
- Dimensions (WxHxD): 275x402x382mm / 10.83''x15.83''x15.04''
- Weight: 8,35kg / 18.41lbs
- (*)
- NOTE: Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.
CERTIFICATIONS / APPROVALS
- Certifications / Approvals: CE, RCM, FCC
BOX CONTENT
- 1 x ECLPARIPLVW
- 1 x EPIPLLENS15
- 1 x 1,5 meters 3G1,5mmq power cable (BARE END - SEETRONIC POWERCON TRUE1 IP65 power connector)
- User Manual
