NB! STRØMKABEL LEVERES UTEN STØPSEL. SE TILBEHØR FOR ALTERNATIVER

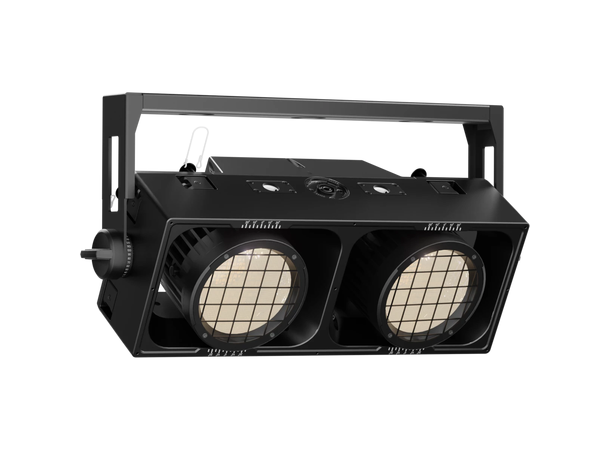

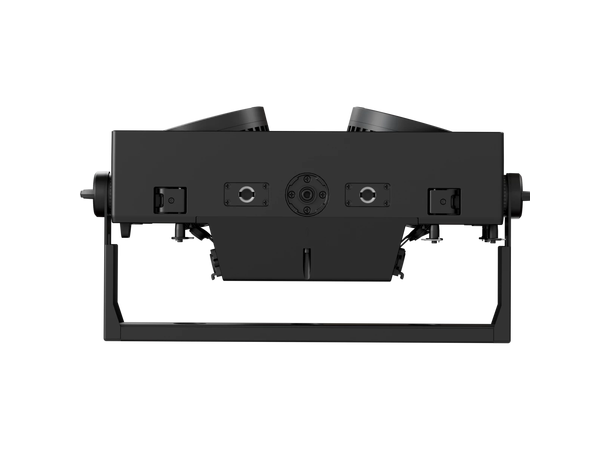

IP65 modular LED blinder with 2x300W Variable White + Amber LED sources
The Sunrise 2FLXVW is a versatile modular lighting fixture, combining the functionalities of a blinder, strobe, and washlight with high output, ideal for large-scale indoor and outdoor stages, thanks to its IP65 rating.
At the core of this fixture are 2x 300W Variable White + Amber LED sources, offering individual control and pan directional adjustment for each pod. This design enables the Sunrise 2FLXVW to deliver intense light flux with advanced CCT control. It excels in producing a fully tunable white light, effectively emulating the output and dim-to-warm characteristics of classic DWE lamps and incandescent fixtures.

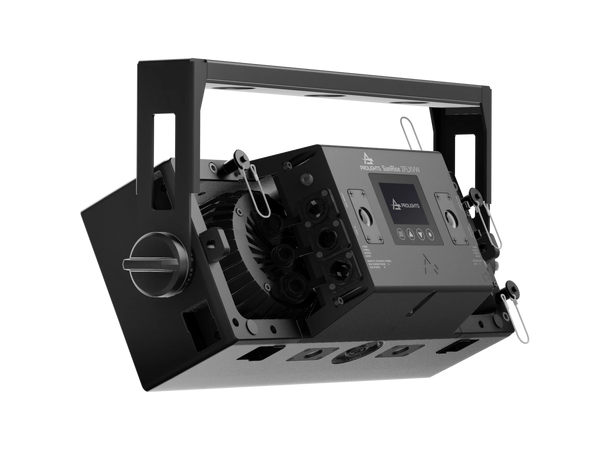

The true strength of the Sunrise 2FLXVW is in its modular design. It is equipped with on-board fast-lock and tool-free mechanics on both vertical and horizontal axes. This flexibility allows for innovative rigging options, from creative fixture arrays on the floor to suspended configurations using the included yoke with camlocks. The Sunrise 2FLXVW's adaptability and powerful performance make it an exceptional choice for professionals seeking a more dynamic and creative blinder in their stages.
Main features:
- IP65 modular LED blinder with 2x300W Variable White + Amber LED sources
- Tungsten emulation with dimm-to-warm
- Pan adjustment of each Pod and on board tool free rigging mechanics on both Horizontal and vertical axis
Technical specifications
LIGHT SOURCE
- Source: 2 x 300W Variable White + Amber LED
- CCT: 2.700K - 6.500K
- Luminous flux: 37'184 @Full
- Luminous flux: 36'783lm @3.200 K - 36'074lm @5.600 K
- Lux: 1'663lx @5 m full
- Lux: 1'649lx @3.200 K - 1606lx @5.600 Klx @5 m
- CRI: >97 @3.200 K - >98 @5.600 K
- R9: >97 @3.200 K - >95 @5.600 K
- TLCI: 98 @3.200 K - 99 @5.600 K
- Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
- Beam angle: 54°
- Field angle: 93°
COLOUR SYSTEM
- Colour mixing: tunable white
- CCT: CCT control range from 2.700K to 6.500K, tungsten emulation
- White presets: 2.700 K ~ 6.500K
DYNAMIC EFFECTS
- Static mode: selection of static dimmer and color temperature
- Manual mode: manual adjustment of dimmer and strobe
- Special features: tungsten emulation activation
BODY

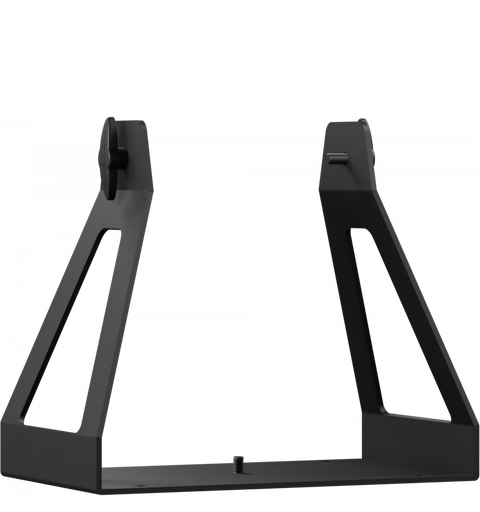

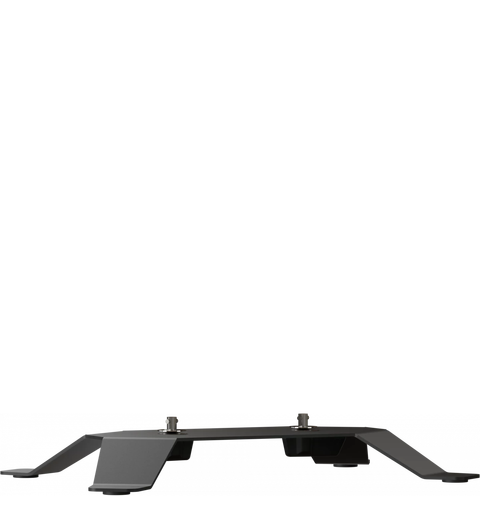

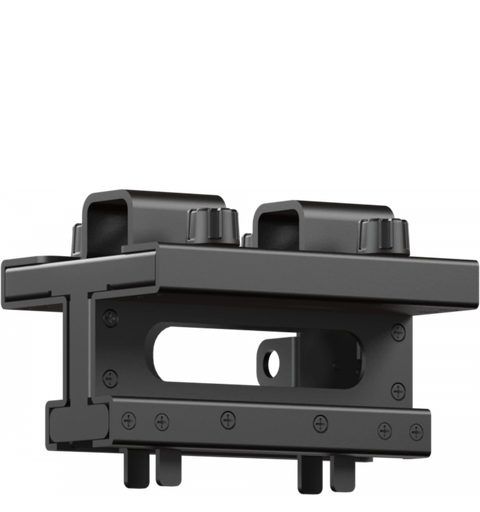

- Bracket system: Several brackets available for simply array mounting - see available accessories
- Hardware on-board: fast ancor points on the front for accessory mounting and on board mechanics for modular assembly of
- multiple fixtures
- Pan range: +/- 20° with manual regulation
- Body: weatherproof IP65 construction with die-cast magnesium alloy
- Body colour: black
- Other: pan directional adjustment for each pod
CONTROL
- Protocols: DMX512, RDM, ArtNet, sACN, CRMX (optional)
- DMX channels: several DMX modes from 1 ch to 18channel
- Pixel control: pixel2pixel control
- Wireless Control: optional, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX
- (Wireless DMX)
- RDM: RDM for remote monitoring and settings

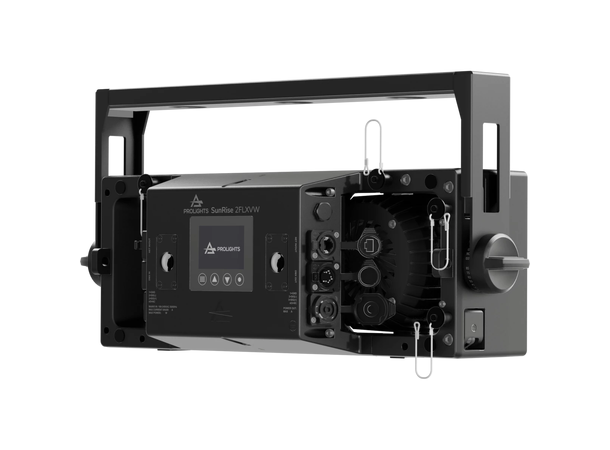

- Display: Graphic User Interface
- Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
- EtherFlow: Ethernet pass-through switch that preserves network connectivity even when the fixture is unpowered.
ELECTRONICS
- Dimmer: linear 0 ~ 100% electronic dimmer
- Dimmer curves: 6 selectable dimming modes available
- Strobe / shutter: 1 - 30 Hz, electronic
- Display battery: self-charging battery backup
- Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
- LED Control: flicker free operation
- Selectable PWM: 1000 ~ 25.000 Hz
ELECTRICAL
- Mains power supply: 100-240V - 50/60Hz
- Max power consumption: 630W
- Standby power: 4,3 W
- Output (at 230V): 3 units on a single power line
- Power factor: > 0,94
PHYSICAL
- IP rating: IP65 for temporary outdoor application, not for fixed installations
- Cooling: active, silent operation

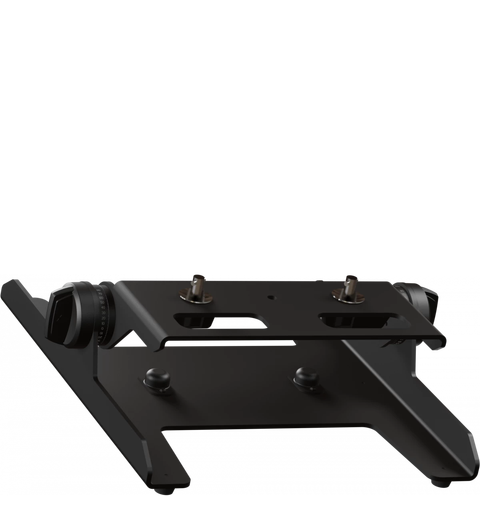

- Suspension and fixing: hanging bracket for floor stand. Also can fit the fast quick lock OMEGA bracket
- Signal connection: IP65 Seetronic XLR 5p IN/OUT connectors
- Data connection: IP65 Seetronic Art-Net RJ45 IN/OUT
- Power connection: Seetronic powerCON TRUE IP65 IN/OUT
- Dimensions (WxHxD): 542x173x192mm / 21.34''x6.81''x7.56''
- Weight: 9,9kg / 21.83lbs
CERTIFICATIONS / APPROVALS
- Certifications / Approvals: CE, RCM
BOX CONTENT
- 1 x SUNRISE2FLXVW

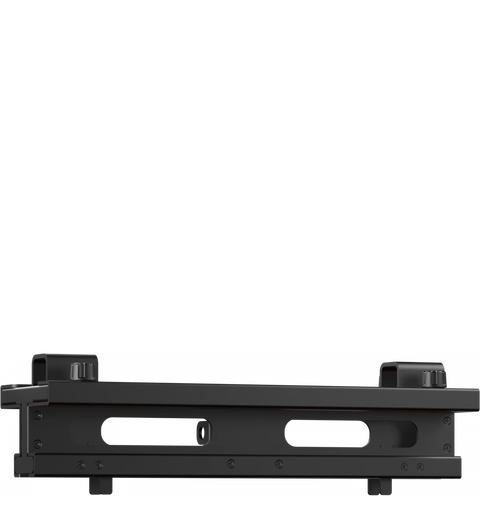

- 1 x SBLFLXB01H
- 1 x OS25PLUS
- 1 x 1,5 meters 3G1,5mmq power cable (BARE END - SEETRONIC POWERCON TRUE1 IP65 power connector)
- User Manual
