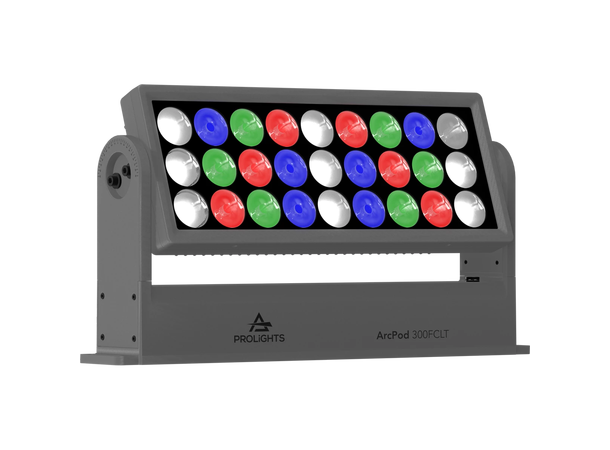

Introducing the ARCPOD 300FCLT, a narrow-beam wash LED luminaire delivering exceptional long-throw performance with precise, powerful color output. Equipped with a native 2.5° lens, it is perfect for large-scale exterior installations requiring long-distance projection, such as bridges, stadiums, and city towers.
The ARCPOD 300FCLT delivers 700 lux at 40 meters, providing directional and precise illumination to minimize light pollution. With an IP66 rating and C5M marine corrosion protection, it offers enhanced durability against liquids, sand, and salt.
Weighing just 12 kg, the ARCPOD 300FCLT is ideal for outdoor use, requiring minimal maintenance. Secure mounting and optical customization are ensured with a wide range of brackets and lens modifiers. Combining precision, durability, and advanced technology, the ARCPOD 300FCLT sets a new benchmark in architectural lighting.
Key Features
- Exterior narrow-beam Full Color wash light featuring 700 lux at 40mt
- Native 2.5° beam angle lens for long-throw projection
- IP66 with C5M for permanent exterior installation also in marine environment
- Comprehensive selection of optics, holographic filters and light modifiers
Spesifications
LIGHT SOURCE
- Source: (6 x red, 6 x green, 6 x blue, 9 x white) 27x10W RGBW LED
- CCT: W: 6300K
- Luminous flux: (with 3° filter on-board) 10'573 lm @Full
- Lux: (with 3° filter on-board) 676lx @40 m full
- Lux: (with 3° filter on-board) 43'251lx @5 m full
- Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
- Optics: 3° holographic filter fitted on board
- Beam angle: (with 3° filter on-board) 4° - (only native lens) 2,5°
- Field angle: (with 3° filter on-board) 7,5 - (only native lens) 5,3°
- Lens type: TIR lenses
- Additional optics: different holografic filters available as options to put behind the glass - see available accessories
COLOUR SYSTEM
- Colour mixing: RGBW
- White presets: 2.800 K ~ 10.000K
- Colour wheel: virtual colour wheel with macros
- Macros: several pre-built macros with adjustable speed
DYNAMIC EFFECTS
- Static mode: selection of static colour
- BODY

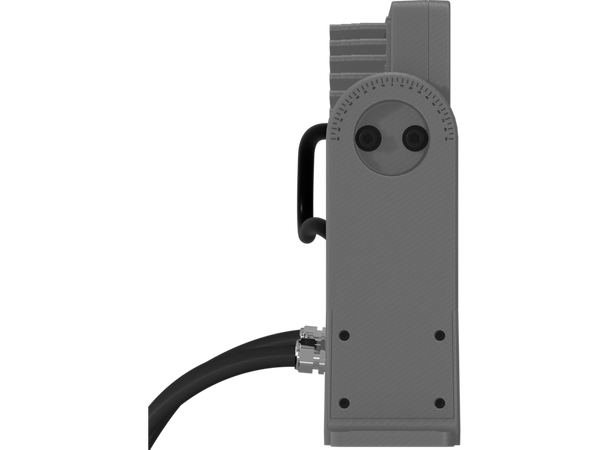

- Tilt range: 0 ~ 130° with manual regulation
- Body: sturdy die-cast aluminium body, scratch resistant paint C5M (as standard)
- Body colour: RAL 7012
CONTROL
- Protocols: DMX512, RDM
- DMX channels: 5 / 7 / 10channel
- RDM: RDM for remote monitoring and settings
- Display: user interface through DATAMASTER external coder (not included)
- Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
- Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
- Dimmer: linear 0 ~ 100% electronic dimmer
- Dimmer curves: 4 selectable dimming modes available
- Strobe / shutter: 1 ~ 30 Hz, electronic
- Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
- LED Control: flicker free operation
- Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
- Mains power supply: 100-240V - 50/60Hz
- Max power consumption: 260W
- Standby power: 3,5 W
- Output (at 230V): 10 units on a single power line
- Output (at 120V): 5 units on a single power line
- Power factor: > 0,95
PHYSICAL
- IP rating: IP66 for outdoor installations
- IK rating: 08

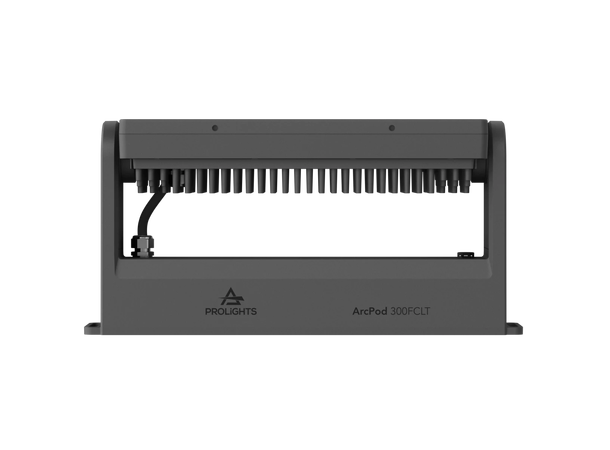

- Cooling: natural convection cooling enabled by a fanless design and a chassis engineered for passive heat dissipation
- Adaptors: XLR and BARE END 16A adaptors included
- Signal connection: 1,8 m moulded IP signal IN connector

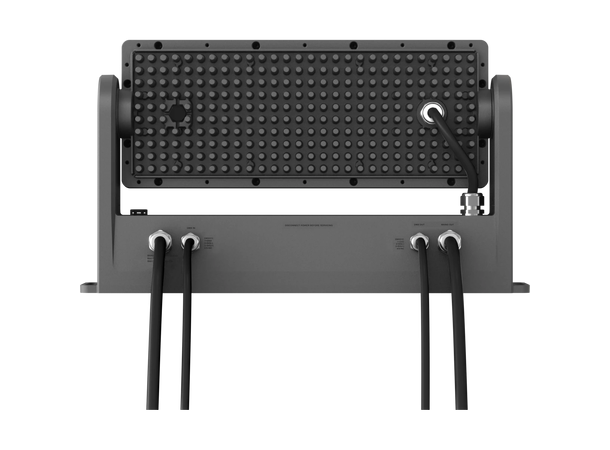

- Power connection: 1,8 m moulded IP power IN/OUT connectors
- Dimensions (WxHxD): 584x304x114mm / 22.99''x11.97''x4.49''
- Weight: 12,2kg / 26.9lbs
CERTIFICATIONS / APPROVALS
- Certifications / Approvals: CE, RCM
BOX CONTENT
- 1 x ARCPOD300FCLT
- 1 x 0,28 meters 3G1mmq power cable (BARE END - IP connection adapter)
- 1 x 5p XLR - IP connection female adapter
- 1 x 5p XLR - IP connection male adapter
- User Manual
