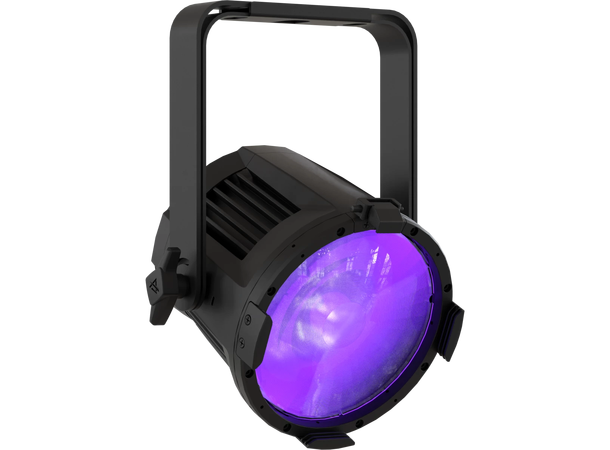

80W IP65 UV (365nm) single source LED PAR, 40°
EclPar IPMUV is an all-weather, IP65-rated, single-source UV LED spotlight engineered for professional use. It features a 80W ultraviolet LED at a 365 nm wavelength, delivering true UV output with no visible light spectrum.
This compact fixture is entirely fanless, ensuring silent operation. Its rugged construction makes the EclPar IPMUV a reliable workhorse for outdoor and dusty environments, while the silent design is ideal for indoor venues where quiet operation and true UV performance are required.
Its flexible optical system supports interchangeable lenses ranging from an optional 15° narrow beam to a 40° wide beam (included). These lenses can be quickly mounted on the front of the fixture for fast beam adjustments, or installed behind its tempered front glass for long-term outdoor use.
Main features:
- 80W UV LED source (365nm) without visible light spectrum
- Flex-Lens optics: 40° lens fitted, 15° lens optional
- IP65 fan-free housing for reliable outdoor use
- DMX, RDM, optional CRMX signal
Technical specifications
LIGHT SOURCE
- Source: 80W UV LED
- Other: Output: 4'637 mW with 40° lens; 22'862 mW with 15° lens; wavelength 365 nm with no visible light spectrum
- Source life expectancy: 6.000 h
OPTICS
- Beam angle: (on-board) 40° - (opt) 15°
- Lens diameter: 172mm / 6.77''
- Lens type: parabolic reflector in combination with HD fresnel lens
- Additional optics: (opt) 15°
- Other: possible to mount lens both on the internal side and on the external side
COLOUR SYSTEM
- Colour mixing: UV
- BODY
- Body: sturdy die-cast aluminium body
- Body colour: black
- Other: Front mount holder for accessories as barn door and full snoot
CONTROL
- Protocols: DMX512, RDM, CRMX (optional)
- DMX channels: 1 / 2 / 3 / 4channel
- Wireless Control: optional, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX
- (Wireless DMX)
- RDM: RDM for remote monitoring and settings
- Display: Graphic User Interface
- Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
- Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
- Dimmer: linear 0 ~ 100% electronic dimmer
- Dimmer curves: 4 selectable dimming modes available
- Strobe / shutter: 1 - 30 Hz, electronic
- Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
- LED Control: flicker free operation
- Selectable PWM: 600 ~ 40.000 Hz
ELECTRICAL
- Mains power supply: 100-240V - 50/60Hz
- Max power consumption: 80W
- Output (at 230V): 12 units on a single power line
- Power factor: > 0,93
PHYSICAL
- IP rating: IP65 for temporary outdoor application, not for fixed installations
- Cooling: natural convection cooling enabled by a fanless design and a chassis engineered for passive heat dissipation
- Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning

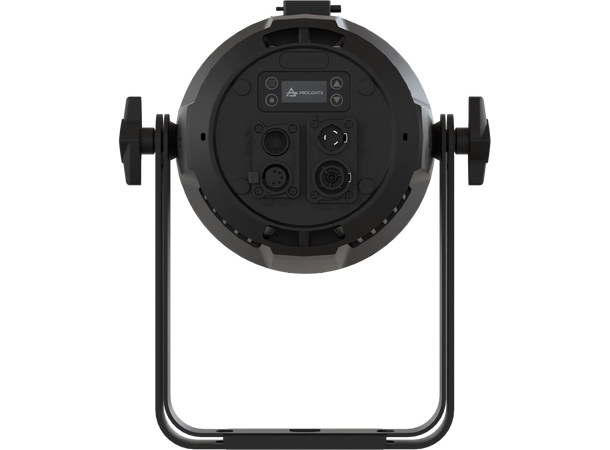

- Signal connection: Seetronic XLR 5p IN/OUT connectors
- Power connection: Seetronic powerCON TRUE IP65 IN/OUT
- Dimensions (WxHxD): 262x327x213mm / 10.31''x12.87''x8.39''
- Weight: 4,1kg / 9.04lbs
- (*)
- NOTE: Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.
CERTIFICATIONS / APPROVALS
- Certifications / Approvals: CE, RCM
BOX CONTENT
- 1 x ECLPARIPMUV
- 1 x EPIPMUVLENS40
- 1 x 1,5 meters 3G1,5mmq power cable (BARE END - SEETRONIC POWERCON TRUE1 IP65 power connector)
- 1 x User Manual
