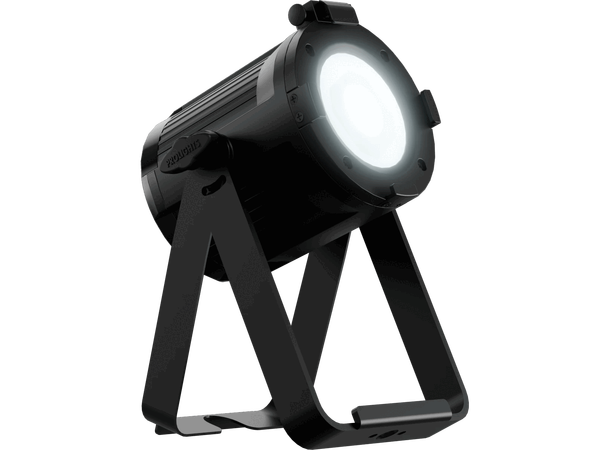

20W Variable White LED pinspot, 5° beam angle
EclPar DotVW is an ultra-compact, fan-free pinspot featuring a larger front lens and enhanced output. It delivers a bright, narrow projection with smooth white mixing and high quality white reproduction.
A 20W Variable White LED paired with a 60 mm lens produces a halo-free 5° beam, staying tight and bright even over long throws ideal for highlights, accents, scenic elements, set pieces, and discreet stage lighting.
EclPar DotVW combines a Variable White LED source with precise CCT control, delivering consistent behaviour and high-fidelity whites with excellent colour rendering.
The fixture is passively cooled and completely silent. With a weight of only 1.2 kg and an ultra-compact form factor, it can be placed virtually anywhere. On-board DMX (XLR) in/out and power in/out connections make installation fast and enable easy daisy-chaining. The integrated push encoder also allows intuitive standalone operation without a control signal, ensuring quick setup and ease of use.
20 W Variable White LED, 2,800 K - 6,500 K with high CRITight 6° beam with 60 mm lens, halo-free projectionSpektraOs for advanced colour control and high-fidelity white reproductionFan-free, 1.2 kg, with chassis-mounted DMX in/out and power in/out for easy daisy-chain wiring
Technical specifications
LIGHT SOURCE
- Source: 1 x 20W Warm White + Cold White LEDs
- CCT: 2.800K - 6.500K
- Luminous flux: 844 lm @Full
- Luminous flux: 753 lm @3.200 K; 889 lm @5.600 K
- Lux: 3.702lx @5 m full
- Lux: 3.349lx @5 m 3.200K; 3.811lx @5 m 5.600K
- CRI: 96,7 @3.200K; 96,1 @5.600K
- R9: 91,7 @3.200K; 98,6 @5.600K
- TLCI: 95 @3.200K; 99 @5.600K
- TM30 Rf: 93,6 @3.200K; 94,1 @5.600K
- TM30 Rg: 104,4 @3.200K; 102,9 @5.600K
- Source life expectancy: > 90.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
- Beam angle: 6°
- Field angle: 11,5°
- Lens diameter: 60mm / 2.36''
COLOUR SYSTEM
- Colour mixing: tunable white
- CCT: CCT control through dedicated DMX channel
- Macros: built-in white presets
DYNAMIC EFFECTS
- Static mode: selection of static dimmer, colors and color temperature
- Manual mode: manual adjustment of dimmer and strobe
- Auto mode: built-in programs with execution speed adjustment
CONTROL
- Supported Protocols: DMX512, RDM
- DMX channels: 1 / 2 / 5 / 6 / 9 / 12 / 13ch
- RDM: for remote addressing and parameter configuration
- Display: LED display user interface
- Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
- Stand Alone: push encoder
- Master/Slave: for synchronised operation of more units linked in a chain
BODY
- Housing: Sturdy die-cast aluminium body
- Finish: black
- Other: Front mount holder for accessories - see available accessories
ELECTRONICS
- Dimmer: linear 0 ~ 100% electronic dimmer
- Dimmer curves: 4 selectable dimming modes available
- Strobe / shutter: 1-30 Hz, electronic
- Operating temperature: Ta -10 to +45 °C (+14 to +113 °F)
- LED Control: flicker free frequency with adjustable PWM
- Selectable PWM: 600 to 25000 Hz (selectable steps)
ELECTRICAL
- Mains power supply: 100-240V - 50/60Hz
- Max power consumption: 25W
- Standby power: 0,5 W
- Power factor: > 0,9
PHYSICAL
- IP rating: IP20
- Cooling: fan-free with natural convection
- Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning

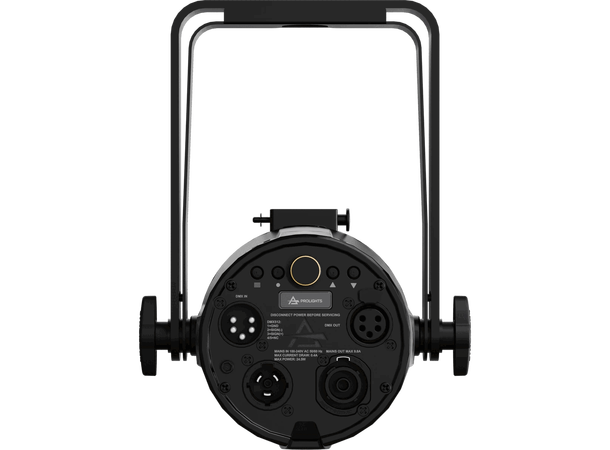

- Signal connection: Amphenol XLR 5p IN/OUT connectors
- Power connection: Seetronic powerCON IN/OUT connectors
- Dimensions (WxHxD): 165x221x144mm / 6.5''x8.7''x5.67''
- Weight: 1,2kg / 2.65lbs
CERTIFICATIONS / APPROVALS
- Certifications / Approvals: CE, RCM
BOX CONTENT
- 1 x ECLPARDOTFC
- 1 x 1,5 meters 3G1,5mmq power cable (BARE END - SEETRONIC POWERCON TRUE1 IP65 power connector)
- User Manual
