NB! STRØMKABEL LEVERES UTEN STØPSEL, SE TILBEHØR FOR ALTERNATIVER
Pack with 6 SMARTPARNEO, battery charger flight case, IR controller, power cable
The iconic Smartbat Plus battery-powered uplighter has been transformed into a outdoor battery PAR version. The new Smart PAR NEO features a 7x10W LED source with highly efficient RGB+WW emitters, powered by PROLIGHTS' advanced color management technology. This ensures superior white light quality and an enhanced color spectrum. The overall dimensions of the Smart PAR NEO have been further reduced, enhancing its compactness and portability. Designed with signal and power connections on the sides and a classic tilting foot at the base, it offers a user-friendly setup. Its ingenious mechanical design allows the Smart PAR NEO to transition seamlessly from a spot/flood light to an uplighter. This is achieved by combining filters and utilizing the fast-lock suspension floor yoke, all while preserving the fixture's elegant aesthetics.
Additionally, the unit has been enriched with a variety of light modifiers and accessories, providing advanced functionality and adaptability. Its compact design, combined with a sleek, circular black body, makes it discreet and versatile, ideal for a wide range of installation scenarios. The Smart PAR NEO is a refined and natural evolution of what is already recognized as the best battery-powered uplighter on the market, setting new benchmarks in the industry.
The pack includes:
- 6 x SMARTPARNEO

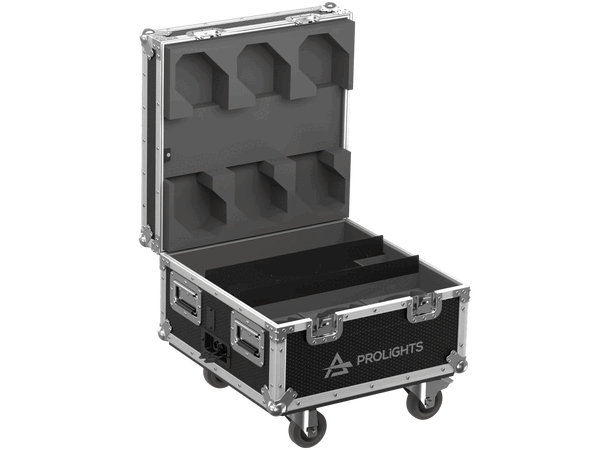

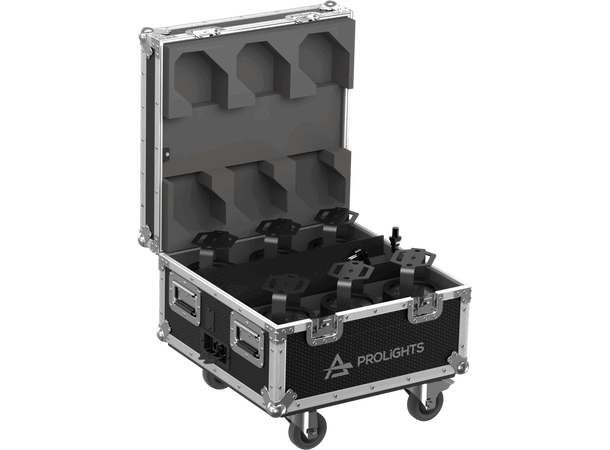

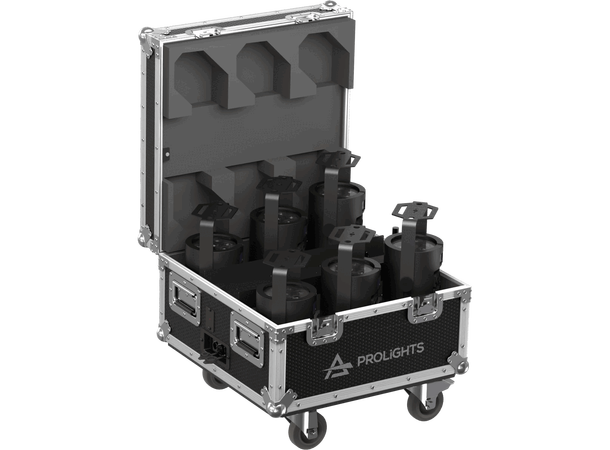

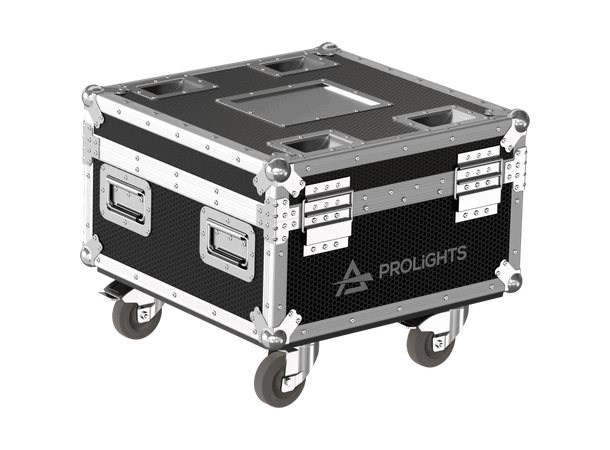

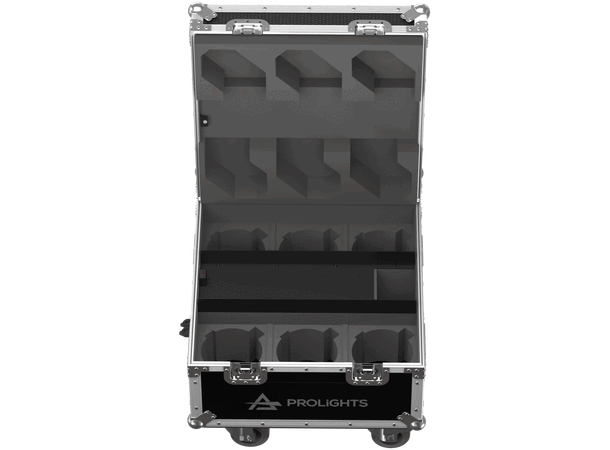

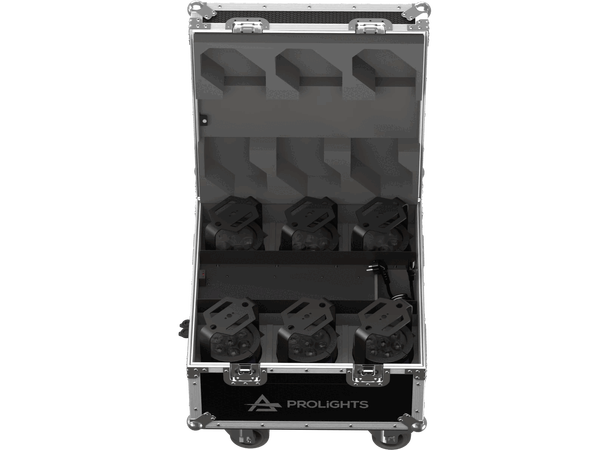

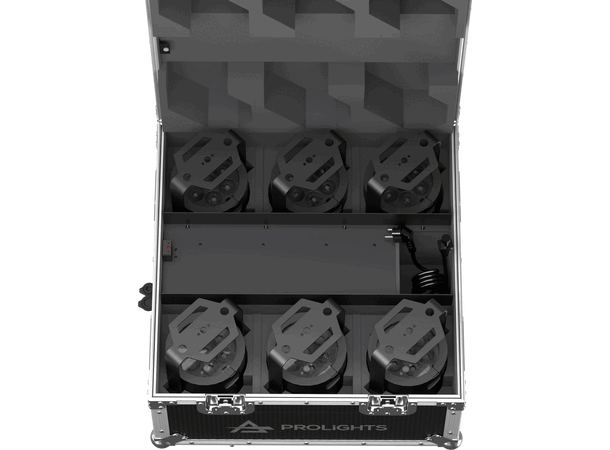

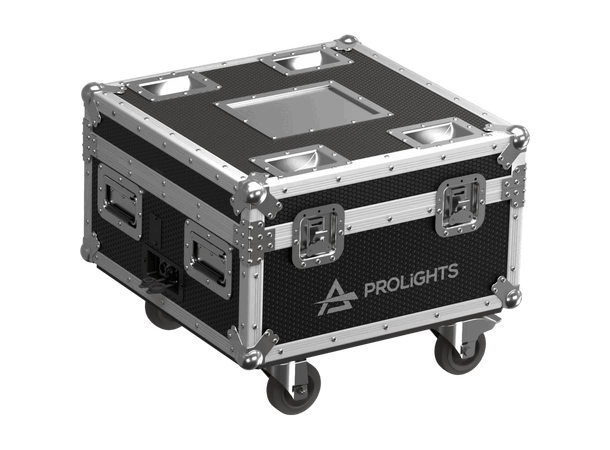

- 1 FLIGHT CASE with integrated battery charger kit (FCLSMARTPARNEO)
- 1 IR controller (PRL-IRC)
- 1 PowerCON power cable
Main features:
- Maximum power consumption during charging is 570W
- Pack Weight: 50,5 kg
Technical specifications
LIGHT SOURCE
- Source: 7x10W RGB + Warm White LED
- Luminous flux: 2'927 lm @Full
- Lux: 1'493lx @5 m full
- CRI: Up to 90
- R9: Up to 80
- TLCI: Up to 80
- TM30 Rf: > 90
- TM30 Rg: < 107
- Source life expectancy: > 50.000 h
OPTICS
- eam angle: 11°
- Field angle: 21°
- Additional optics: (optional) 20° and 40° - see available accessories

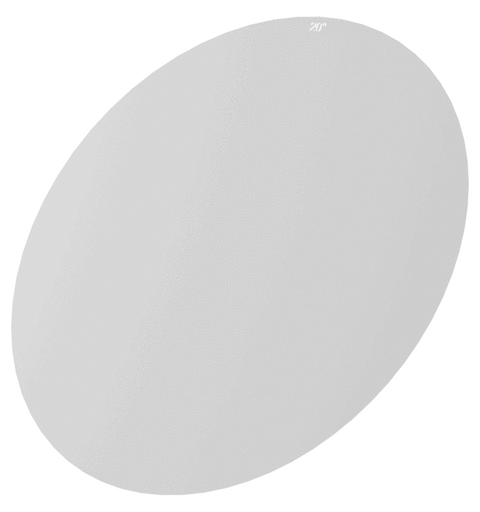

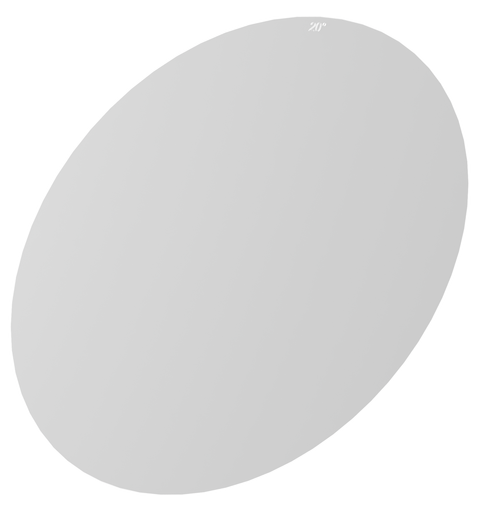

- Other: barn doors, snoot, additional filters - see available accessories
COLOUR SYSTEM
- Colour mixing: RGB + Warm White
- CCT: CCT control range from 2.800K to 10.000K, + / - green correction, tungsten emulation
- White presets: 2.700 K -10.000K
- Colour wheel: virtual colour wheel with macros
- Macros: several pre-built macros with adjustable speed
DYNAMIC EFFECTS
- Control Resolution: 16-bit dimmer and color control
- Static mode: selection of static colour
- Manual mode: manual adjustment of colour
- Auto mode: built-in programs with execution speed adjustment
CONTROL
- Supported Protocols: DMX512, RDM, CRMX, NFC
- DMX channels: 4/6/10/3 ch in legacy mode | 1/5/11/17ch
- RDM: for remote addressing and parameter configuration
- Display: Graphic User Interface
- IR: infrared sensor controlled by remote
- Master/Slave: for synchronised operation of more units linked in a chain
- MOVEMENT
- Tilt: (up to) 20° with adjustable foot support
ELECTRONICS
- Dimmer: linear 0 - 100% electronic dimmer
- Dimmer curves: 4 selectable dimming modes available
- Strobe / shutter: 1 - 25 Hz, electronic
- Selectable PWM: 1000 to 25000 Hz (selectable steps)
- Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (not included)
BATTERY
- Battery: 16,8V lithium
- Estimated battery life: up to 3 / 6 / 8 / 12 / 18 / 24 h (selectable)
- Recharge connection: magnetic fast-charge in case
- Recharge time: 4h (max)
- Battery level indicator: shown on display
CONNECTIONS
- Power connection: Seetronic powerCON TRUE IP65 IN/OUT
- Signal connection: Seetronic XLR 5p IN/OUT connectors
- Wireless Connection: integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
- Data connection: CRMX transreceiver
ELECTRICAL
- Mains power supply: 100-240V - 50/60Hz (SBPLUSNEOPOWER charger not included)
- Max power consumption (230V): 85W
- Standby power: 5,8 W
PHYSICAL
- IP rating: IP65 for temporary outdoor use
- Cooling: fan-free with natural convection
- Housing: Sturdy die-cast aluminium body
- Finish: black
- Operating temperature: Ta 0 to +45 °C (+32 to +113 °F)
- Dimensions (WxHxD): 194x249x147mm / 7.64''x9.8''x5.79''
- Weight: 4kg / 8.82lbs
INSTALLATION
- Suspension and fixing: hanging bracket for floor positioning with "Quick-Lock" system
- Bracket system: fast removible bracket
