NB! STRØMKABEL LEVERES UTEN STØPSEL. SE TILBEHØR FOR ALTERNATIVER

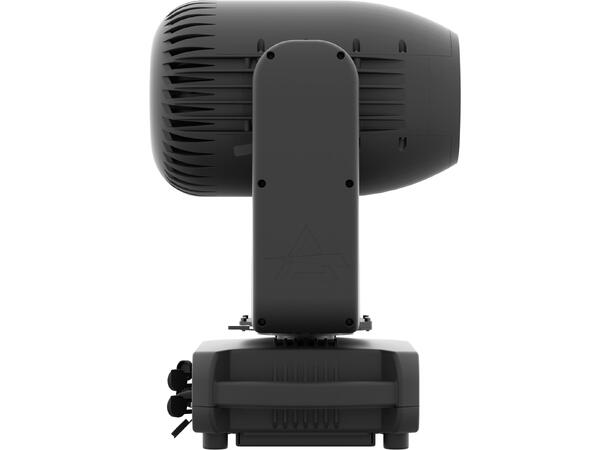

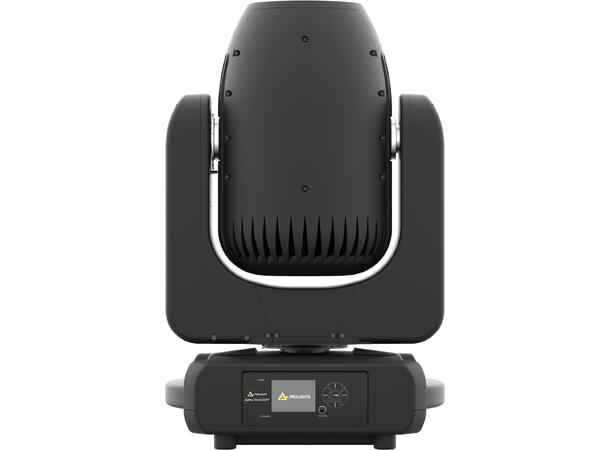

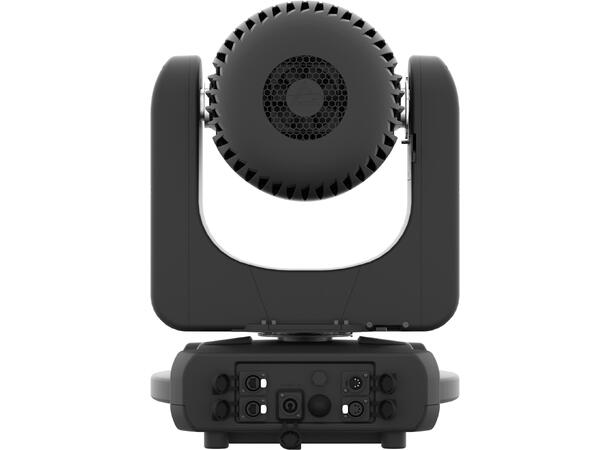

Astra Beam260IP is a compact outdoor IP65 beam moving head with a long lamp life source, engineered to produce a sharp and parallel beam of light with a boosted light output, thanks to its brand new Osram 260W PRO arc lamp.
Astra Beam260IP is smaller, brighter and faster than any other IP pure beamlight on the market, and when compared to indoor alternatives it requires less maintenance time and extra costs, due to the sealed housing and outstanding long lamp life (6.000 hours). In addition, with its compact size and at an attractive price point, this luminaire is ideal even for indoor applications.
Features:
IP65 design, compact size and fast movements
260W PRO Osram long life (6.000 hours) arc lamp
Two overlapping prism to create spectacular aerial effects
LIGHT SOURCE
Source: 260W PRO OSRAM SIRIUS HRI Lamp
CCT: 7.800K
Lux: 1'984'000lx @5 m
Source life expectancy: 6.000 h
OPTICS
Beam angle: 2°
Lens diameter: 140mm
Lens type: HD anti-reflection lenses with achromatic coating
Focus: motorised
COLOUR SYSTEM
CCT: on wheel 2.500 K and 3.200 K + CTB
Colour wheel: 10 colour filters
DYNAMIC EFFECTS
Control Resolution: 16-bit dimmer
Fixed gobos: 15 fixed gobos + open
FX generator: 2 prisms overlap for spectacular aerial effects
Circular prism: 8f with bi-directional rotation, indexing
Linear prism: 6f with bi-directional rotation, indexing
Frost: linear 0 - 100% frost filter
BODY
Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
Pan angle: 540°
Tilt angle: 230°
Pan/Tilt resolution: 16bit
Feedback: automatic repositioning after accidental movement
Body: weatherproof IP65 construction
Body colour: RAL 9004
CONTROL
Protocols: DMX512, RDM, Art-Net, sACN, W-DMX
DMX channels: 17channel
W-DMX: included, Wireless Solution transceiver
RDM: RDM for remote monitoring and settings
Display: LCD high resolution colour display with autoflip
Firmware upgrade: via menu with internal memory or via USB - DMX interface (UPBOX2) not included
ELECTRONICS
Dimmer: linear 0 ~ 100% mechanical dimmer
Strobe / shutter: 1 - 28 flash(s), mechanical
Display battery: self-charging battery backup
Operating temperature: -20° ~ +40°
ELECTRICAL
Mains power supply: 100-240V - 50/60Hz
Max power consumption: 405W
Power factor: 0,96
PHYSICAL
IP rating: 65 for temporary outdoor application, not for fixed installation
Cooling: forced air with fan
Suspension and fixing: any position with quick-lock omega brackets
Signal connection: Seetronic XLR 5p IN/OUT connectors
Power connection: Seetronic powerCON TRUE IP65 IN
Dimensions (WxHxD): 385x603x271mm
Weight: 28,6kg
BOX CONTENT
1 x ASTRABEAM260IP
1 x 1,5 meters power cable (SCHUKO plug - SEETRONIC IP65 power connector)
2 x OSIP
1 x Antenna
User Manual
