NB! STRØMKABEL LEVERES UTEN STØPSEL, SE TILBEHØR FOR ALTERNATIVER

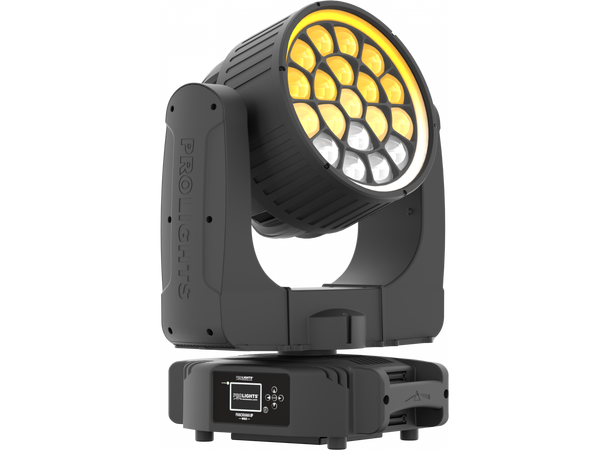

PanoramaIP WBX is a stunning IP65 high-output, LED wash light with pixel ring designed to bring the workhorse LED wash light to outdoor events. Featuring 19 of Osrams new 40 W RGBW Ostar LEDs, it delivers a massive output with a huge colour range and an extensive toolkit of effects.
Features:
IP65 for temporary outdoor application, not for fixed installation.
19 LED RGBW / FC Osram 40 W and outer RGB pixel ring.
Massive 3° to 45° linear zoom range from beam to wash.
Individual pixel control with on-board FX generator for both LEDs and pixel ring for fast and precise effects.
Heat-pipe cooling system for efficient cooling with virtually no noise.
LIGHT SOURCE
Source: 19x40W RGBW Osram Ostar LEDs
Lux: (3°) 60'000 lx (45°) 5'010lx @3 m full
Lux: (3°) 31'500 lx (45°) 2'000lx @5 m full
Source life expectancy: > 50.000 h
Other: outer RGB, pixel ring with frost film
OPTICS
Zoom: 3° - 45° motorised linear zoom
Lens type: high-quality glass lens optics
Additional optics: diffuser on outer pixel ring
COLOUR SYSTEM
Colour mixing: RGBW / FC
CTC: CTC control through dedicated DMX channel
White presets: 2.000 K - 10.000K
Colour wheel: virtual colour wheel with presets
Macros: several pre-build pixel macros with adjustable speed
DYNAMIC EFFECTS
Pixel patterns: pre-programmed dynamic and static patterns
FX generator: adjustable foreground/background colour, index, speed, direction
Special features: outer RGB, pixel ring with several built in FX macros
BODY
Pan angle: 540° - 630°
Tilt angle: 267°
Pan/Tilt resolution: bit 16 bit
Feedback: automatic repositioning after accidental movement
Body: weatherproof IP65 construction
Body colour: black
CONTROL
Protocols: DMX512, RDM, Art-Net, W-DMX
DMX channels: V1: 18 / 42 / 44 / 120 - V2: 18 / 42 / 44 / 120channel
Pixel control: pixel2pixel control
W-DMX: included, wireless solution receiver
RDM: RDM ready for fixture remote monitor and settings
Display: LCD high resolution colour display with autoflip
Firmware upgrade: yes, via USB - DMX interface (UPBOX2) not included
Hibernation: power safe mode when lost DMX
Master/Slave: for synchronized operation of more units linked in a chain
ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Strobe / shutter: 1 - 30 Hz, electronic
Battery backup: battery backup for user operation without connecting to the main power
Operating temperature: -20° ~ +40°
Flicker: flicker free operation
ELECTRICAL
Power supply: 100-240 V – 50/60 Hz
Power consumption (at 230 V): 661W
Power consumption (at 120 V): 698W
PHYSICAL
Cooling: combination of heat pipe cooling system and low noise fan
Sospension and fixing: any position with quick-lock omega brackets

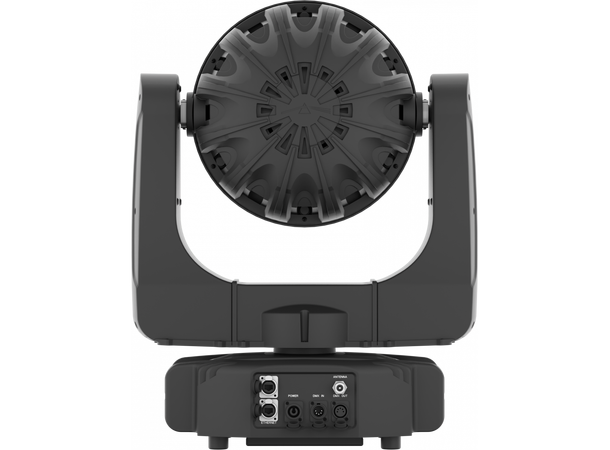

Signal connection: Seetronic XLR 5p IN/OUT connectors
Data connection: Art-Net RJ45 IN/OUT
Power connection: Neutrik powerCON TRUE1 IN connector
IP rating: 65 for temporary outdoor application, not for fixed installation
Dimensions (WxHxD): 529x676x312mm
Weight: 35kg
