NB! STRØMKABEL LEVERES UTEN STØPSEL. SE TILBEHØR FOR ALTERNATIVER

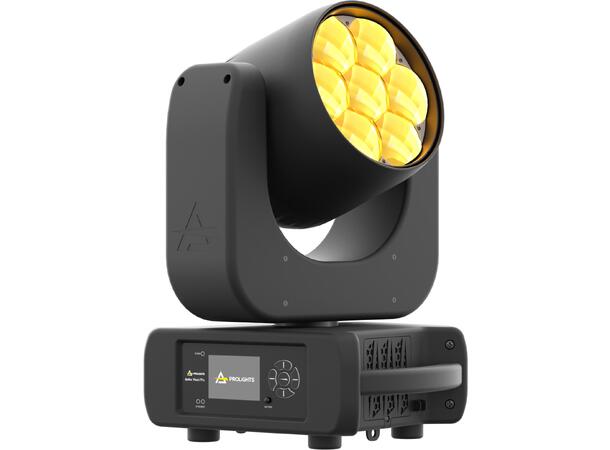

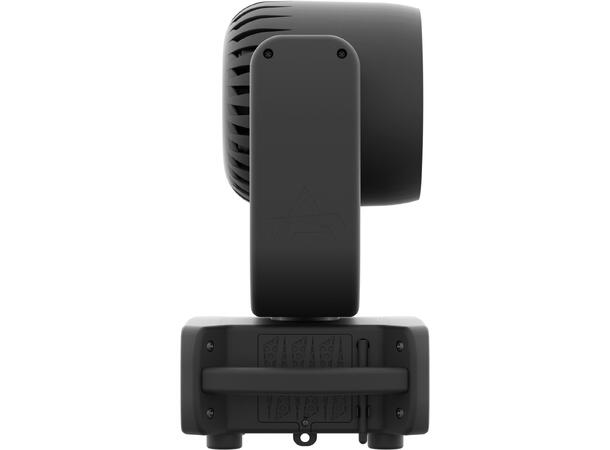

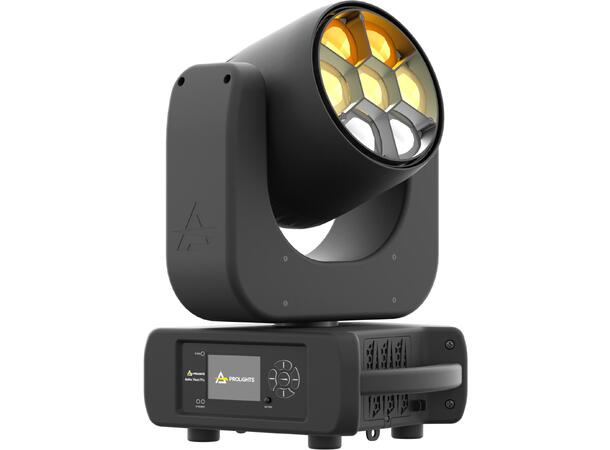

Astra Wash7Pix is a compact and fast LED moving wash light. Despite its small size, it comes with an extensive feature set which can typically only be found on bigger luminaires.
Based on a 40W Osram RGBW LED light source, the unit features an extremely high-efficient optical system capable of zooming from 4° to 59°, making it extremely versatile for any application as beam or wash light.
Astra Wash7Pix is single pixel controllable, with multiple on-board FX, and allows access to a precise and advanced white and colour control, all through DMX, W-DMX, Art-Net, sACN and RDM.
Features:
Compact form factor and fast movements
Zoom from 4° to 56° with high optical efficiency
Pixel control, precise white CTC and multiple FXs and colour feature
LIGHT SOURCE
Source: 7x40W RGBW Osram Ostar LEDs
Luminous flux: (4°) 2'013 lm - (56°) 3'543lm @full
Lux: (4°) 18'360 lx - (56°) 364lx @5 m full
Source life expectancy: > 50.000 h
OPTICS
Zoom: 4° - 56° motorised linear zoom
Lens type: honeycomb gapless plano-convex optics
COLOUR SYSTEM
Colour mixing: RGBW / FC
CCT: CCT control, + / - green correction, tungsten emulation
White presets: 2.800 K ~ 10.000K
Colour wheel: virtual colour wheel with macros
Macros: several pre-built pixel macros with adjustable speed
DYNAMIC EFFECTS
Control Resolution: 16-bit dimmer
Pixel patterns: pre-programmed dynamic and static patterns
FX generator: adjustable foreground/background colour, index, speed, direction
Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
Pan angle: 540°
Tilt angle: 233°
Pan/Tilt resolution: bit 16-bit
Feedback: automatic repositioning after accidental movement
Body: aluminium structure with high-resistance polycarbonate cover
Body colour: RAL 9004
CONTROL
Protocols: DMX512, RDM, Art-Net, Klingnet, sACN, W-DMX
DMX channels: main personality 24 / 27 / 39channel
Pixel control: OFF, ring and pixel2pixel selectable options
W-DMX: included, Wireless Solution transceiver
RDM: RDM for remote monitoring and settings

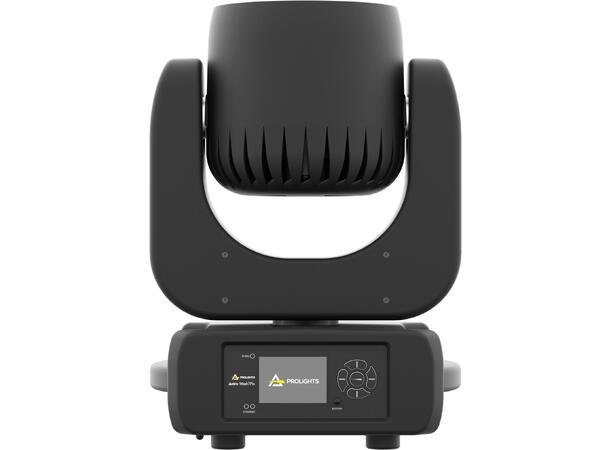

Display: LCD high resolution colour display with autoflip
Firmware upgrade: yes, via USB - DMX interface (UPBOX2) not included
ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1 - 30 Hz, electronic
Display battery: self-charging battery backup
Operating temperature: -10° ~ +45°
LED Control: flicker free operation
Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
Mains power supply: 100-240V - 50/60Hz
Max power consumption: 225W
Output (at 230V): up to 13 units on a single power line
Power factor: > 0,93
PHYSICAL
IP rating: 20
Cooling: forced air with fan
Suspension and fixing: any position with quick-lock omega brackets

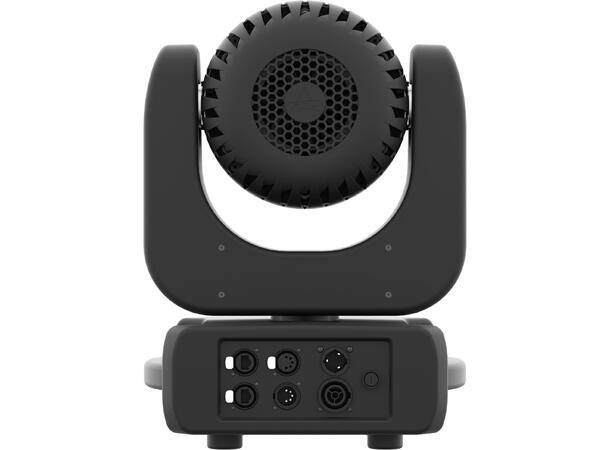

Signal connection: Amphenol XLR 5p IN/OUT connectors
Data connection: Neutrik Art-Net RJ45 IN/OUT
Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
Dimensions (WxHxD): 279x391x205mm
Weight: 8,1kg
BOX CONTENT
1 x ASTRAWASH7PIX
1 x 1,5 meters power cable (SCHUKO plug - NEUTRIK POWERCON TRUE1 IP65)
1 x OS24
User Manual
