PROLIGHTS DIGISTRIPIP100 LED Bar

Pixel control, IP66

Varenr: DIGISTRIPIP100-ML
Alt. varenr: DIGISTRIPIP100
5 417,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
På lager hos leverandør, forventet leveringstid er ca. 20 dager
BeskrivelseTilbehørAlternativerLenker & dokumenter
Beskrivelse

NB! STRØMKABEL LEVERES UTEN STØPSEL, SE TILBEHØR FOR ALTERNATIVER

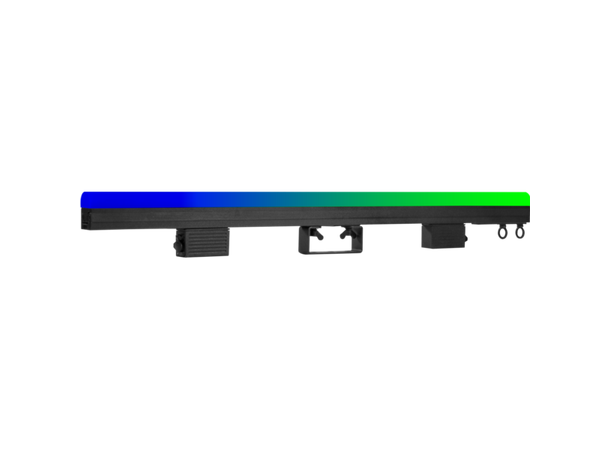

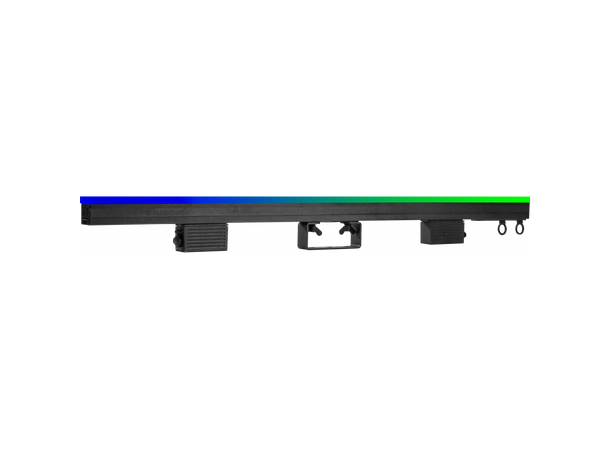

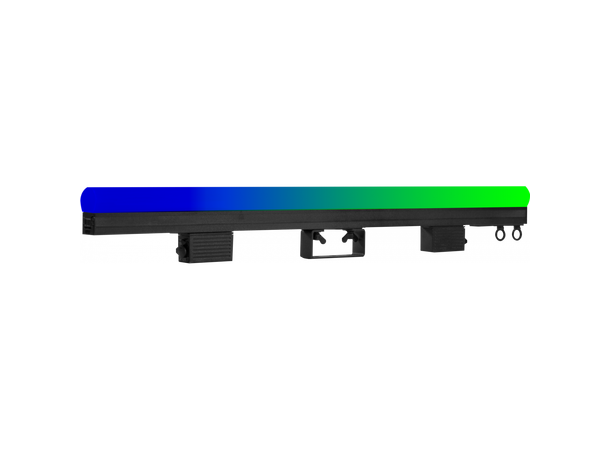

DIGISTRIPIP100 is a linear LED video fixture for the rental market wih 10 mm pixel pitch and an extensive range of optical accessories for a wide variety of looks (black and white milk included, transparent on demand). Each strip features 100 LED RGB/FC LEDs with individual pixel control, 1 meter long, 100° viewing angle. The mechanics of DIGISTRIPIP100 have been studied to grant a great mounting flexibility through a sliding hardwares on the back for truss application and on the side for multiple vertical linking. The external control unit DIGIDRIVERIP is compatible with Art-Net and Kling-Net protocol, and runs both signal and power over a 4 poles cable that provides greater stability and connection in daisy chain (up to 20 DIGISTRIPIP100)\u00a0


Features:
High Resolution IP Video pixel batten, featuring 100 LEDs in a row
Several optional optical filters to deliver a wide range of different looks and finishing
Easy setup and wiring trhough the DIGIDRIVERIP

LIGHT SOURCE
  • Source: 100 x 0,25W RGB LEDs
  • Luminous Flux: Without cover 620 lm- Black cover 101 lm - Flat white milky cover 382 lm - Dome white milky cover 411lm
  • Luminous Flux: Without cover 8639.7 nit - Black cover 1454,7 nit - Flat white milky cover 2467.3 nit - Dome white milky cover 1362.6nit
  • Lux: 1174 lux with clear coverlux
  • Source Life Expectancy: >50.000 h
  • Other: view angle 100°
OPTICS
  • Pixel pitch: 10mm
  • Additional Optics: black cover and milky dome cover (optional)
  • Other: flap white milky cover (included)
COLOR SYSTEM
  • Color Mixing: RGB/FC
BODY

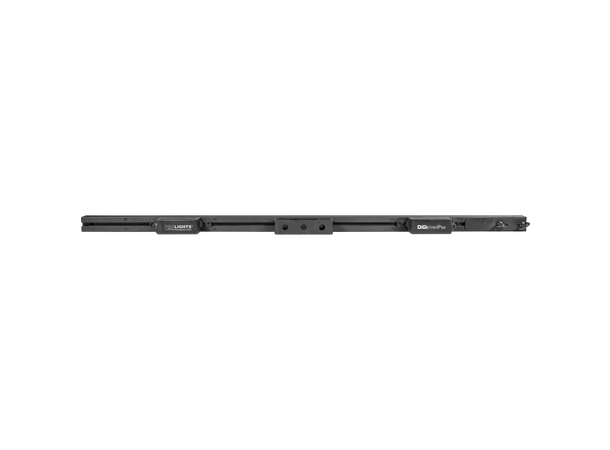

  • Hardware On-board: On board mechanics for modular assembly of multiple fixtures
  • Body: Sturdy aluminum profile
  • Body Color: White optic and body Black
CONTROL

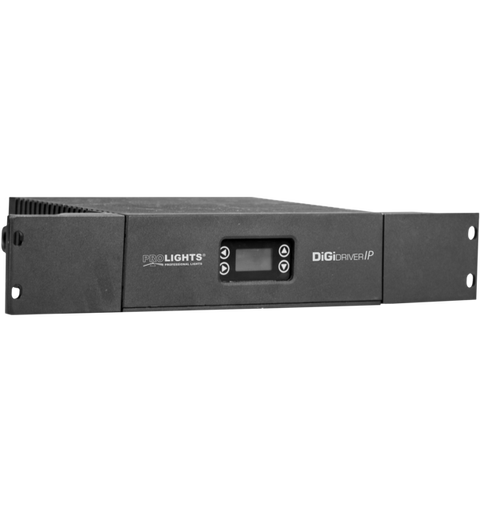

  • Control units: DIGIDRIVERIP
  • Art-Net Channels: 300ch
  • Protocols: Art-Net, Kling-Net
  • Pixel Control: Pixel2Pixel control
  • Other: 20pcs Power & Signal under 1pc DIGIDRIVERIP
ELECTRICAL
  • Power Supply: DC 48 V
PHYSICAL
  • Signal Connection: 4p in/out
  • Power Connection: 4p in/out
  • IP: 65
  • Suspension And Fixing: Bracket for truss rigging and hardware for connection of more units
  • Dimensions (WxHxD): 1000x34x100mm
  • Weight: 2,7kg
