NB! STRØMKABEL LEVERES UTEN STØPSEL. SE TILBEHØR FOR ALTERNATIVER

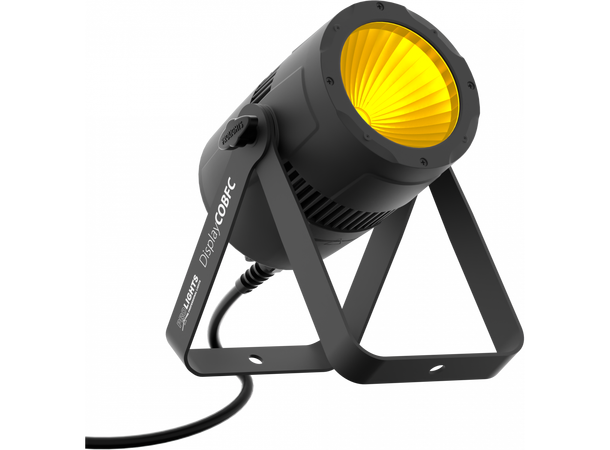

DISPLAYCOBFC is the compact version of the popular STUDIOCOBFC, keeping all its superior features in a very compact housing suitable for the installation market and indoor venues. DISPLAYCOBFC is designed to establish a new standard in the field of diffused light projectors, emerging from the interaction between Chip On Board technology and a new optical solution to maximize efficiency and ensure unprecedented performance in its category. DISPLAYCOBFC employs a 60W COB LED source RGB/FullColor, combined with a special parabolic reflector built in aluminium which develops an extremely bright and homogeneous 60° output, with a perfect color mixing even in short-range applications. DISPLAYCOBFC is a project developed for professional venues by offering a new dimmer technology with super-linear and anti-flickering ramp for any camera, with frequency adjustment from the user interface. The absolute noiseless DISPLAYCOBFC operation makes it suitable even in noise sensitive environments or in applications with a large quantity of projectors. The range of accessories for DISPLAYCOBFC consists of barndoors, filter holders, and optical filters to achieve tighter projection angles like 30° and 15°. DISPLAYCOBFC is a multipurpose projector and can be used in any application such as commercials, exhibitions, theater, film and TV, photographic studios, museums, churches.
Light source and optics
- 1x60W high-efficiency RGB/FullColor COB LED
- Lux @ 3 m: 178,1 lux (60°)
- Flux: 2055 lm - 39,2 lm/W
- Energy-saving LEDs employed, with more vivid colours and lower power consumption than traditional lamps
- Color synthesis: RGB color mixing (>16 million colors) for a limitless color range and advanced control of white color temperature
- White color temperature preset: 3200K~10000K
- Beam Angle: 60°. 30° with included lens. (Optional 15° lens available)
- Field angle: 80°
- Dichroic parabolic reflector
- LEDs average life span: >50’000h
Electronics and features- Several DMX selectable configurations (3, 5, 8 channels) for advanced or basic controlling
3 channel: RGB
5 channels: Dimmer, RGB, Strobe
8 channels: Dimmer, RGB, Strobe/Speed, Color Macros, Mode, Dimmer Speed
- Black OLED display user interface for auto programs execution, static color mode, color calibration presets
- 4 different dimming curves available
- Auto mode: built-in programs with execution speed adjustment
- Static color mode: selection of static color
- Manual color mode: manual adjustment of color
- Master/Slave mode for stand-alone operations
- Linear and “stepless” transition between DMX values
- Flicker-free operations (from 400Hz to 25KHz selectable from the user interface)
Structure and Power supply- Natural air convection cooling, no fans
- Sturdy die-cast aluminum body conceived for long-time durability and demanding applications
- Internal protection: IP20

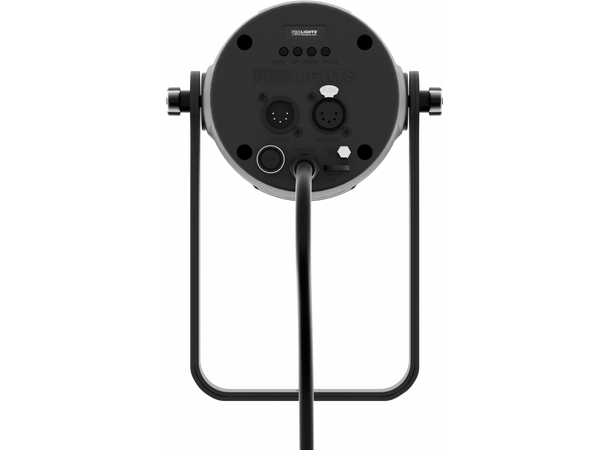

- Signal connections Input/Output: XLR 5p
- Compatible with multiple accessories: 15° optic filters, filter frame holder, barndoors
- Double hanging bracket suitable for safe hanging and for floor positioning
- Power unit: 100-240V 50/60Hz
- Working temperature: -20/40 °C
- Max power consumption: 68W
- Weight: 1,85 kg
- Dimensions (WxHxD): 166x118x250 mm
