EclDisplay is a range of revolutionary and flexible LED spotlights designed for galleries, retail and any public venue where an advanced but classical looking fixture is needed, with several control options, sources and optic versions available to precisely meet any application.
The EclDisplay CC is the version of the EclDisplay range made to be connected to an external Constant Current PSU and driver (max 700mA/36V), selecting among the PROLIGHTS accessories or any third-party compatible component, leaving to System Integrators to install this luminaire in venues with their own wiring distribution and control.

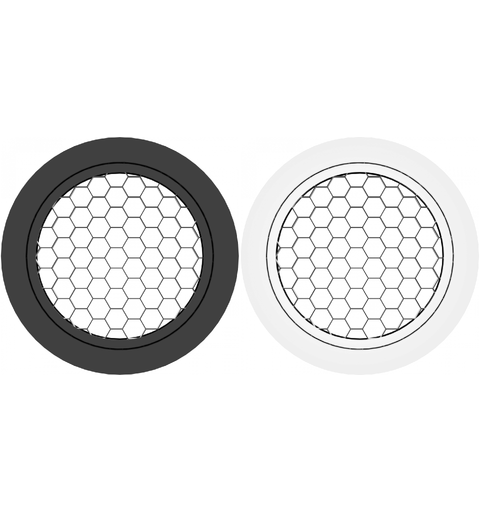

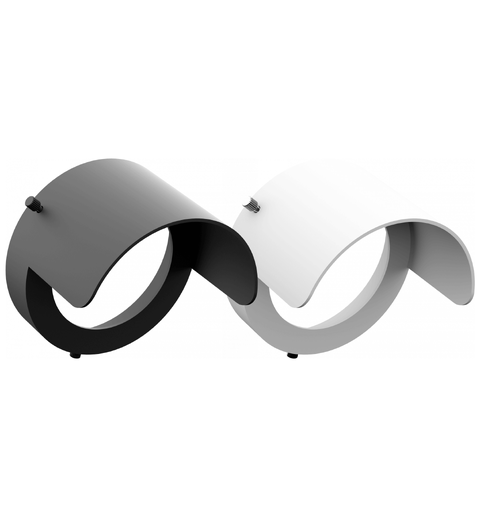

The EclDisplay CC includes a high-efficiency 25 W White, high CRI LED source, available in 2.700 K, 3.000 K, 4.000 K, 5.600 K variants, and it is completed with a wide selection of optional zoomable profile or wash lenses, and other optical accessories like louvres and snoots, making it truly a multi-purpose fixture.
Features:Constant Current version to be connected to external PSU and driver (max 700mA/36V)
25W high CRI White LED available in 2.700 K, 3.000 K, 4.000 K, 5.600 K versions, both black and white housing

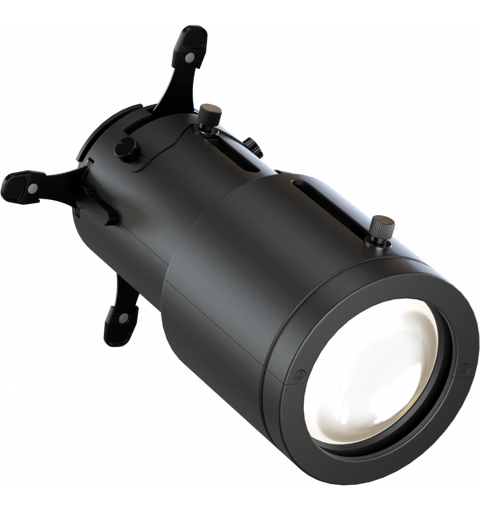

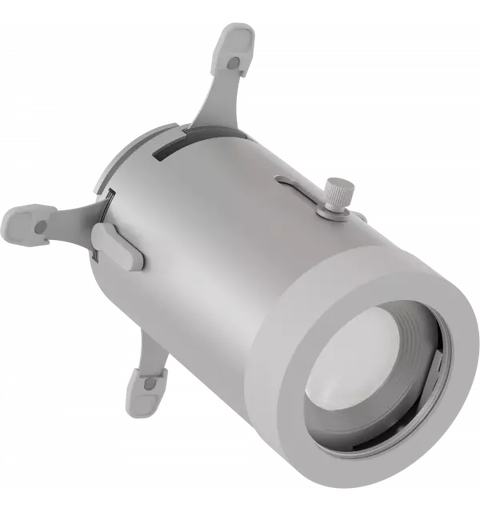

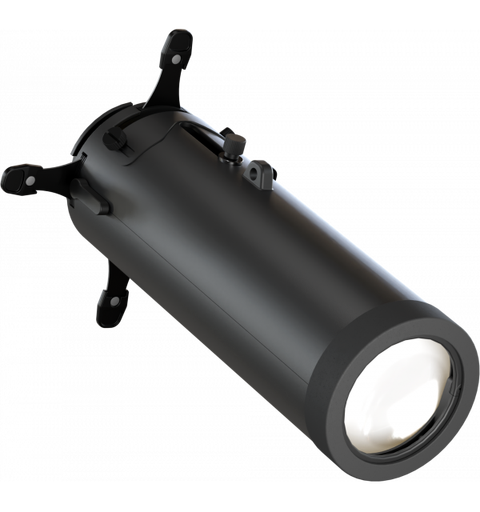

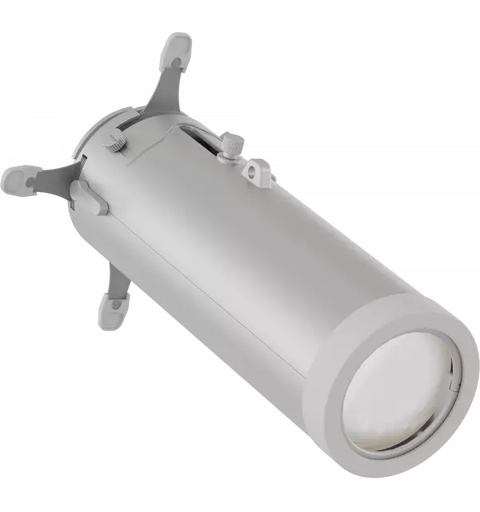

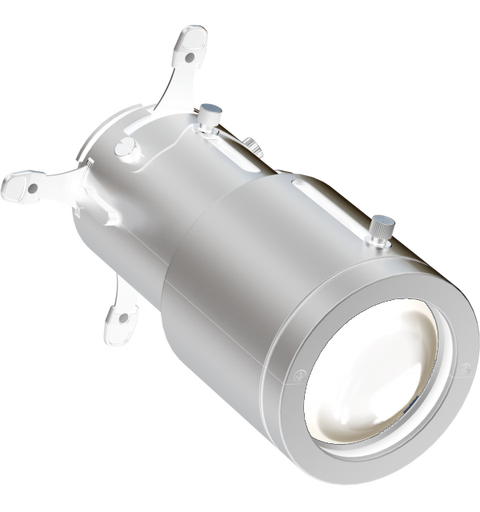

Multiple lens options: zoomable profile or wash optics
LIGHT SOURCESource:
25
W
White COB LED
Luminous flux:
(2.800 K - 17°) 1'498 lm - (2.800 K - 36°) 1'586 lm - (3.000 K - 17°) 1'556 lm - (3.000 K - 36°) 1'676
lm
@full
Luminous flux:
(4.000 K - 17°) 1'576 lm - (4.000 K - 36°) 1'810 lm - (5.600 K - 17°) 1'631 lm - (5.600 K - 36°) 1'869 lm @ full
Lux:
(2.800 K - 17°) 825 lx - (2.800 K - 36°) 221 lx - (3.000 K - 17°) 1'556 lx - (3.000 K - 17°) 887 lx - (3.000 K - 36°) 241
lx
@5 m full
Lux:
(4.000 K - 17°) 923 lx - (4.000 K - 36°) 245 lx - (5.600 K - 17°) 964 lx - (5.600 K - 36°) 256
lx
@3 m full
CRI:
90.5 @2.800 K; 90 @3.000 K; 92.9 @4.000 K; 90.5 @5.600 K
TLCI:
87 @2.800 K; 88 @3.000 K; 94 @4.000 K; 93 @5.600 K
TM30 Rf:
> 89 @2.800 K and 3.000 K; > 91 @4.000 K; > 88 @5.600 K
TM30 Rg:
< 101 @2.800 K and 3.000 K; > 99 @4.000 K; < 101 @5.600 K
Source life expectancy:
> 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICSZoom:

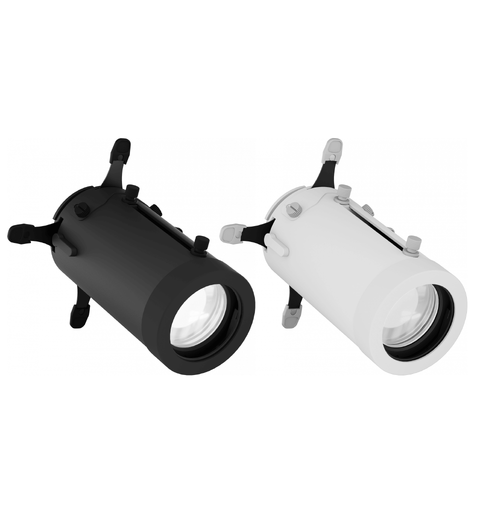

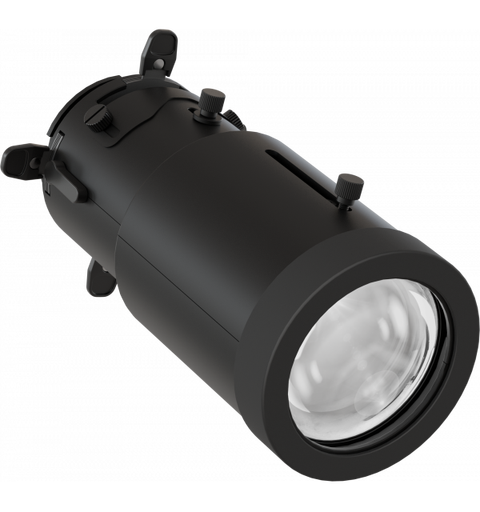

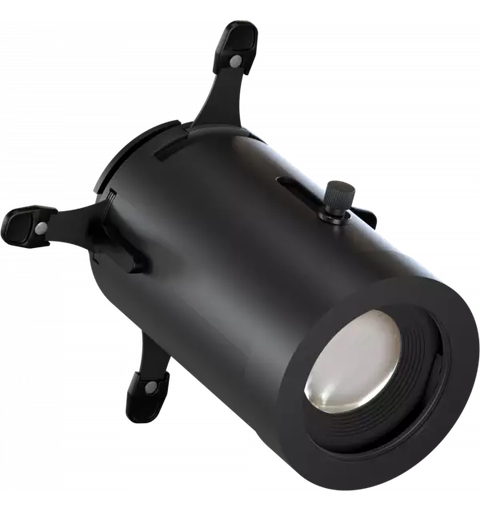

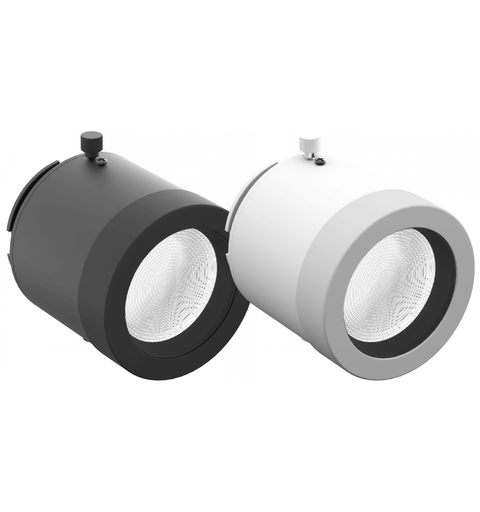

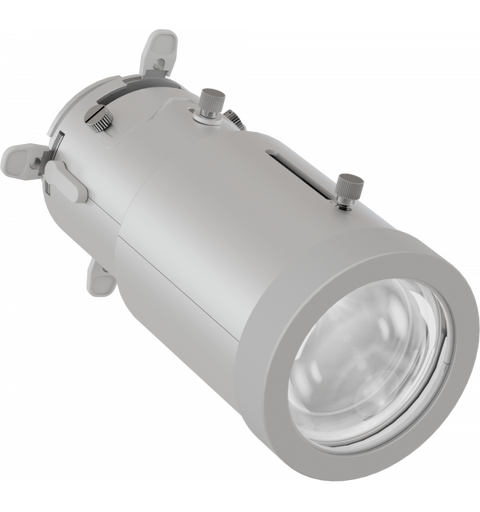

(wash lens - optional) 15° ~ 30° or 25° ~ 50° - (profile lens - optional) 20° ~ 40
°
Other:
360° lens rotation - optional 360° rotating barndoors and gel frame holder
Other:
(profile lens) shutter blades lockable
Other:
(profile lens - optional) manual rotating gobo holder size E, outer: 37 mm - image: 23 mm - thickness: max 3 mm
ELECTRICALConstant Current mains:
max 700mA/36V
Max power consumption:
25
W
