NB! STRØMKABEL LEVERES UTEN STØPSEL. SE TILBEHØR FOR ALTERNATIVER

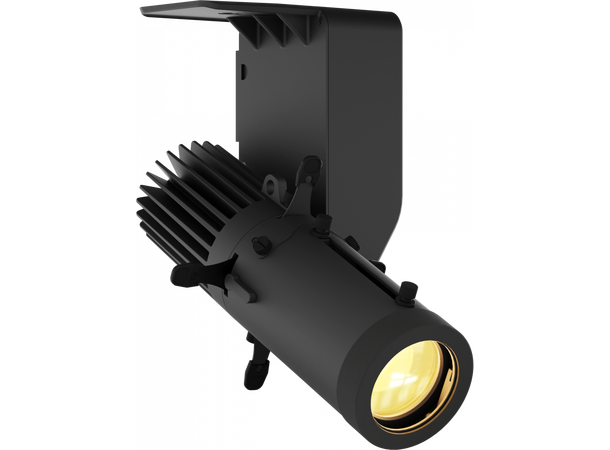

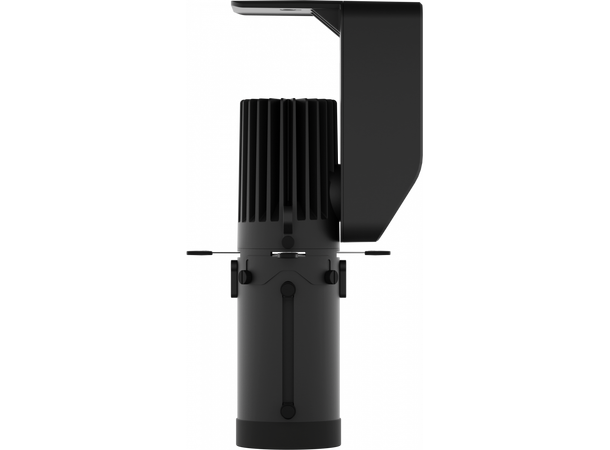

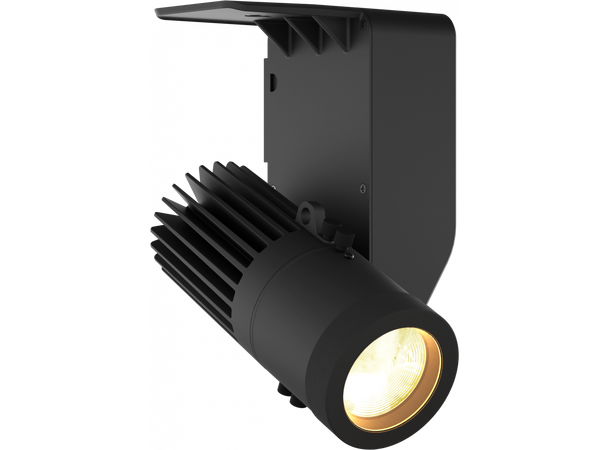

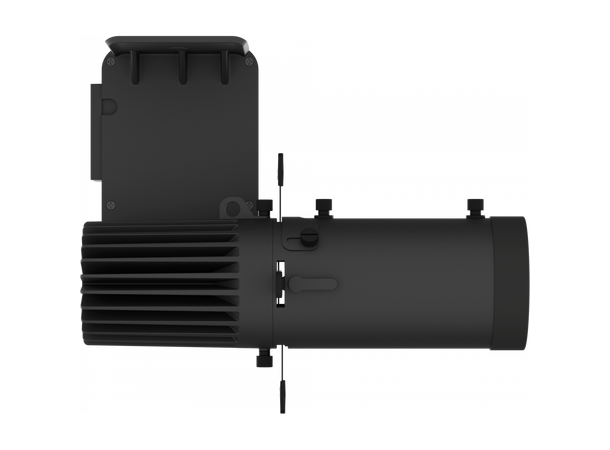

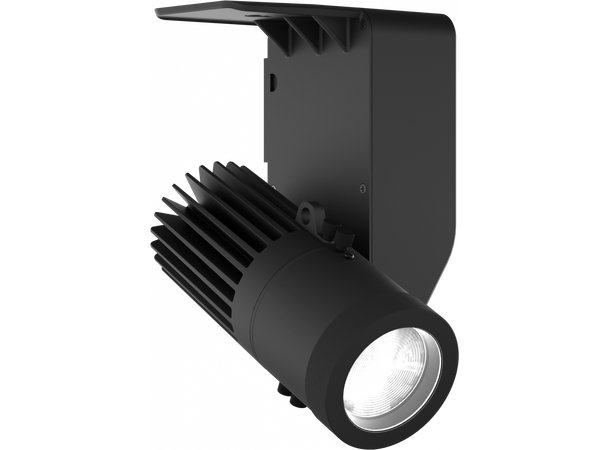

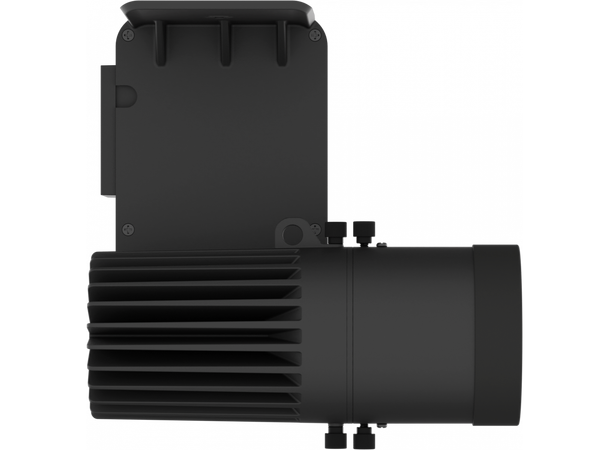

EclDisplay is a range of revolutionary and flexible LED spotlights designed for galleries, retail and any public venue where an advanced but classical looking fixture is needed, with several control options, sources and optic versions available to precisely meet any application.
The EclDisplay UN can be set and addressed through RDM, and includes a broad set of on-board input control options: DMX, DALI Type 6, phase-cut dimming or local knob dimming control. The EclDisplay UN includes a high-efficiency 25 W White, high CRI LED source, available in 2.700 K, 3.000 K, 4.000 K, 5.600 K variants, and it is completed with a wide selection of optional zoomable profile or wash lenses, and other optical accessories like louvres and snoots, making it truly a multi-purpose fixture.
Features:Universal control through RDM, DMX, DALI Type 6, phase-cut dimming and local knob dimming
25W high CRI White LED available in 2.700 K, 3.000 K, 4.000 K, 5.600 K versions, both black and white housing
Multiple lens options: zoomable profile or wash optics
LIGHT SOURCE
-
Source:
25
W
White COB LED
-
Luminous flux:
(2.800 K - 17°) 1'498 lm - (2.800 K - 36°) 1'586 lm - (3.000 K - 17°) 1'556 lm - (3.000 K - 36°) 1'676
lm
@full
-
Luminous flux:
(4.000 K - 17°) 1'576 lm - (4.000 K - 36°) 1'810 lm - (5.600 K - 17°) 1'631 lm - (5.600 K - 36°) 1'869 lm @ full
-
Lux:
(2.800 K - 17°) 825 lx - (2.800 K - 36°) 221 lx - (3.000 K - 17°) 1'556 lx - (3.000 K - 17°) 887 lx - (3.000 K - 36°) 241
lx
@5 m full
-
Lux:
(4.000 K - 17°) 923 lx - (4.000 K - 36°) 245 lx - (5.600 K - 17°) 964 lx - (5.600 K - 36°) 256
lx
@5 m full
-
CRI:
90.5 @2.800 K; 90 @3.000 K; 92.9 @4.000 K; 90.5 @5.600 K
-
TLCI:
87 @2.800 K; 88 @3.000 K; 94 @4.000 K; 93 @5.600 K
-
TM30 Rf:
> 89 @2.800 K and 3.000 K; > 91 @4.000 K; > 88 @5.600 K
-
TM30 Rg:
< 101 @2.800 K and 3.000 K; > 99 @4.000 K; < 101 @5.600 K
-
Source life expectancy:
> 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
-
Zoom:
(wash lens - optional) 15° ~ 30° or 25° ~ 50° - (profile lens - optional) 20° ~ 40
°
-
Other:
360° lens rotation - optional 360° rotating barndoors and gel frame holder
-
Other:
(profile lens) shutter blades lockable
-
Other:
(profile lens - optional) manual rotating gobo holder size E, outer: 37 mm - image: 23 mm - thickness: max 3 mm
DYNAMIC EFFECTS
-
Control Resolution:
16bit dimmer
-
Static mode:
selection of static dimmer
-
Manual mode:
manual adjustment of dimmer and strobe
-
Auto mode:
built-in programs with execution speed adjustment
CONTROL
-
Protocols:
Local Knob, DMX, DALI Type6, RDM, cut phase dimming
-
DMX channels:
1 / 2 / 3 / 4
channel
-
RDM:
RDM for remote monitoring and settings
-
Firmware upgrade:
yes, via USB - DMX interface (UPBOX1) not included
ELECTRICAL
-
Mains power supply:
100-240V - 50/60Hz
-
Max power consumption:
33
W
-
Power factor:
> 0,95
