NB! STRØMKABEL LEVERES UTEN STØPSEL. SE TILBEHØR FOR ALTERNATIVER

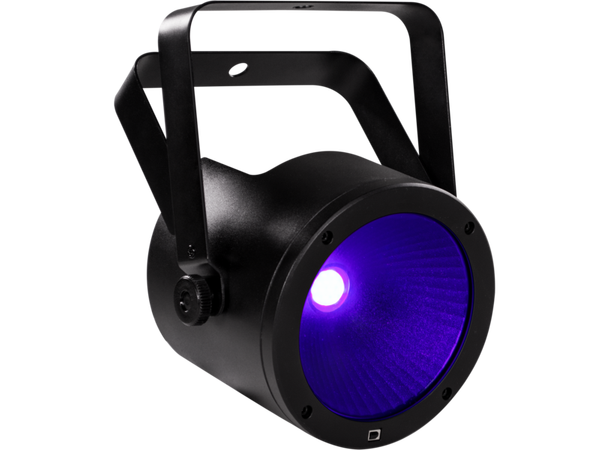

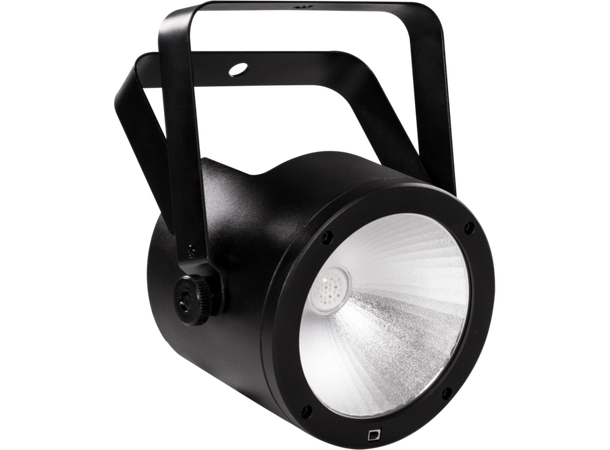

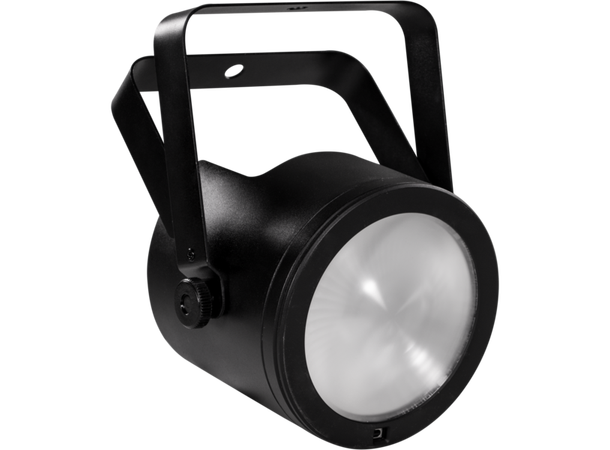

FLATCOB80UV is a compact LED projector equipped with a COB source that allows to place a bright UV 80W LED in a superslim housing. The light source features 60° beam angle, with a magnetic lens holder (included) to switch the projection at 30°. FLATCOB80UV can be controlled wireless through the optional USB Wi-Fi receiver in combination with Wifibox and the smartphone App SmartColor, or through IR remote. FLATCOB80UV has also been designed with signal and power connections on the sides and a flat bottom, resulting very useful for floor applications as compact and powerful wall-washer. Its round shape and die-cast aluminum housing with tempered glass panel make FLATCOB80UV a nice design tool which can be used also for insight applications in every kind of events as conference, wedding parties, fashion events, exhibitions.
Light source and optics
- 1x80W UV high-power LED
- Lux@3m: 1,3lux
- Beam angle: 60° (20° with optic filter)
- Field angle: 80° (30° with fresnel lens)
- LEDs average life span: > 50.000 hours

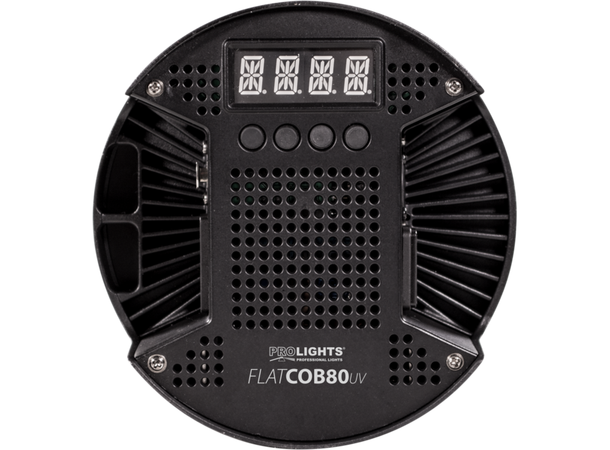

Electronics and features- User panel through LED display
- Two DMX selectable configurations (1, 5 channels) for advanced or basic control:
1 channel: UV
5 channels: UV, strobe, auto, auto speed, dimmer curve
- IR mode: Infrared receiver for remote control
- Auto mode: built-in programs with execution speed adjustment
- Sound mode: music activation through internal microphone, sensitivity control
- Static color mode: selection of static color
- Master/Slave mode: for synchronized operation of more units linked in a chain
- Linear and “stepless” transition between DMX values
- Flicker free operations (400Hz)
Structure and power supply- Sturdy die-cast aluminum body : IP20
- Silent operations, due to natural cooling of the peculiar chassis and to absence of fans
- Double hanging bracket suitable for safe hanging and for floor positioning
- USB port for USB Wi-Fi receiver (optional)
- Power unit: 100-240V 50/60Hz

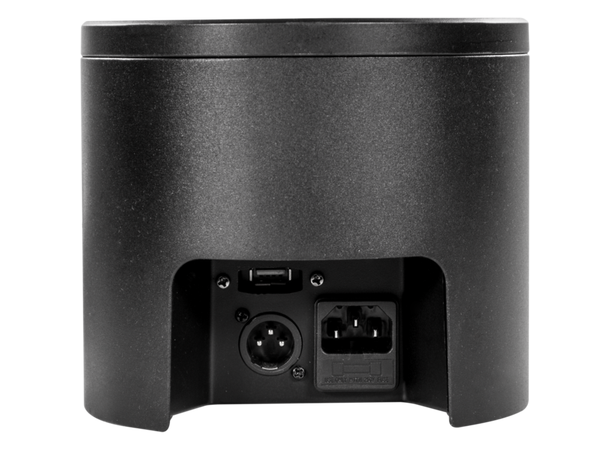

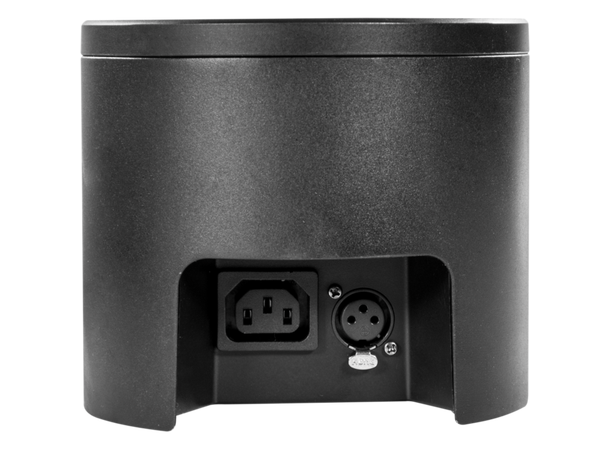

- IN/OUT wiring signal and power connections through XLR3p/VDE
- Average power consumption: 61W
- Weight: 2 kg

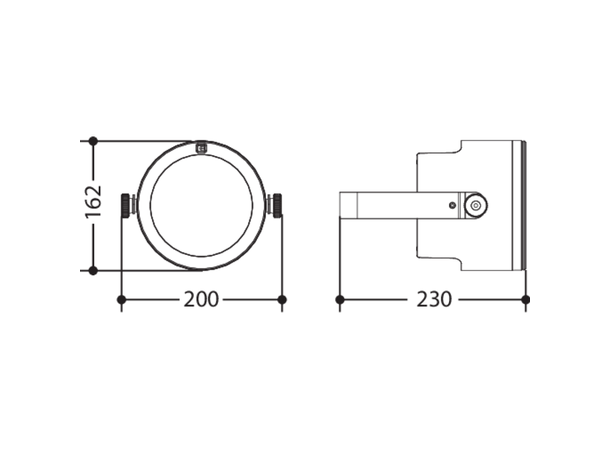

- Dimensions (WxHxD): 200x162x230 mm
