NB! STRØMKABEL LEVERES UTEN STØPSEL. SE TILBEHØR FOR ALTERNATIVER

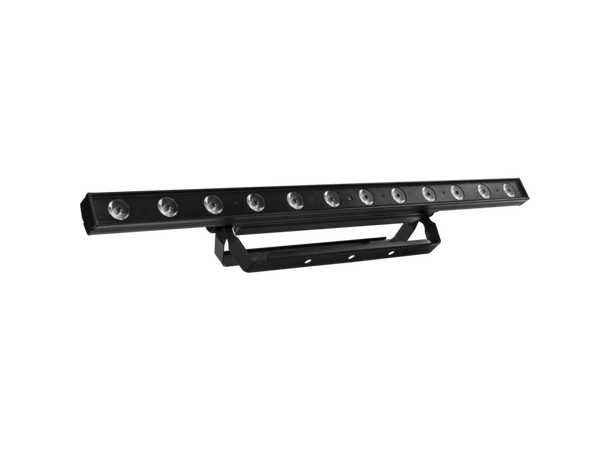

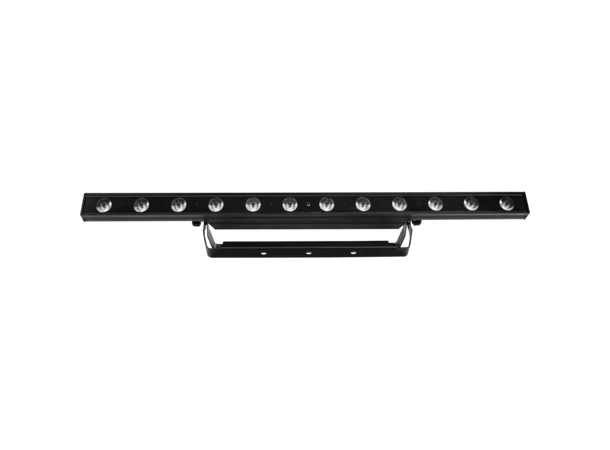

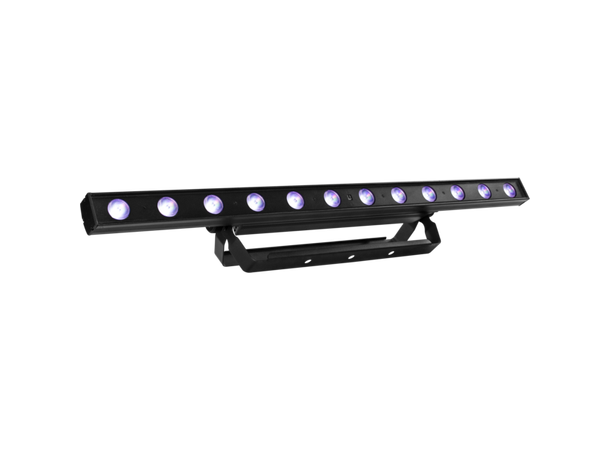

LUMIPIX12UQ is a linear colorchanger equipped with 12 high-efficiency RGBW/FullColor LEDs (8W each) in a 1mt format. Control system is customizable allowing "Section Control" and advanced possibilities in effect generation as LED video or sound activated arrays.
Features:12 x 8W RGBW/FC high-efficiency LEDs
>Pixel Control: Section control
>Advanced onboard effects generation
>USB port for USB Wi-Fi receiver (optional)
>Flicker free operations
LIGHT SOURCE
- Source: 12x8W RGBW LEDs
- Luminous Flux: 2224lm
- Lux: 1813lux @3m Full
- Source Life Expectancy: >50.000 h
OPTICS
- Beam Angle: 19°
- Field Angle: 36°
- Lens Diameter: 38mm
- Additional Optics: 45° (optional)
COLOR SYSTEM
- Color Mixing: RGBW/FC
- CTC: CTC control through independent DMX channel
- Color Wheel: Virtual color wheel with presets
- Macros: Several pre-build pixel macros with adjustable speed
DYNAMIC EFFECTS
- Static Color Mode: Selection of static color
- Manual Color Mode: Manual adjustment of color
- Auto Mode: Built-in programs with execution speed adjustment
- Sound Mode: Music activation through internal microphone, sensitivity contr.
BODY
- Body: Sturdy die-cast aluminium body conceived for long-time durability
- Body Color: Black
CONTROL
- Protocols: DMX512
- Dmx Channels: 4/7/9/12/17ch
- Pixel Control: Section control
- Display: LED display user interface
- Firmware Upgrade: Yes, via USB-DMX interface (UPBOX1) not included
- IR: Infra-Red sensor controlled by remote
- Master/Slave: for synchronized operation of more units linked in a chain
ELECTRONICS
- Dimmer: Linear 0~100% electronic dimmer
- Dimmer Curves: 4 Different dimming curves available
- Strobe/Shutter: 1-28 Hz, electronic
- Operating Temperature: 0° ~ +45°
- Flicker: Flicker free operation
ELECTRICAL
- Power Supply: 100-240V \u2013 50/60Hz
- Power Consumption (at 230V): 71W
- Power Consumption (at 120V): 73,6W
- Output (at 230V): 18 units on a single power line
- Output (at 120V): 7
PHYSICAL
- Signal Connection: 3p in/out
- Power Connection: Seetronic powerCon IN/OUT connectors
- USB: USB port for USB Wi-Fi receiver (optional)
- IP: 20
- Cooling: Natural cooling of the peculiar chassis and to absence of fans
- Suspension And Fixing: Double hanging bracket suitable for safe hanging and for floor positioning

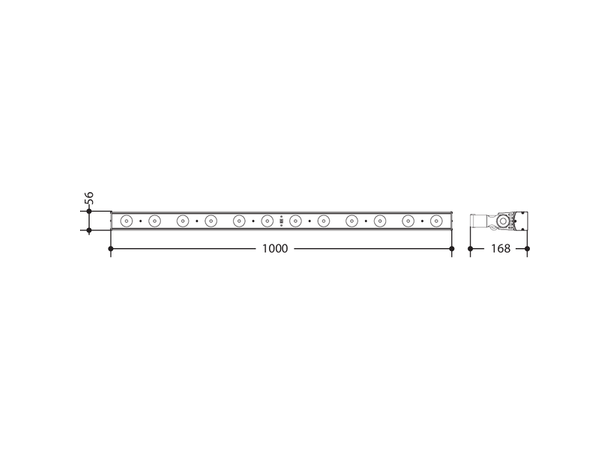

- Dimensions (WxHxD): 1000x56x168mm
- Weight: 3,3kg
Accessories (INCLUDED)
ARCLUMIL25D38 12x8W RGBW/FC pixel-map LED Bar, 3p+IEC, 19° beam, IP20, 71W, 3.3kg
