NB! STRØMKABEL LEVERES UTEN STØPSEL. SE TILBEHØR FOR ALTERNATIVER

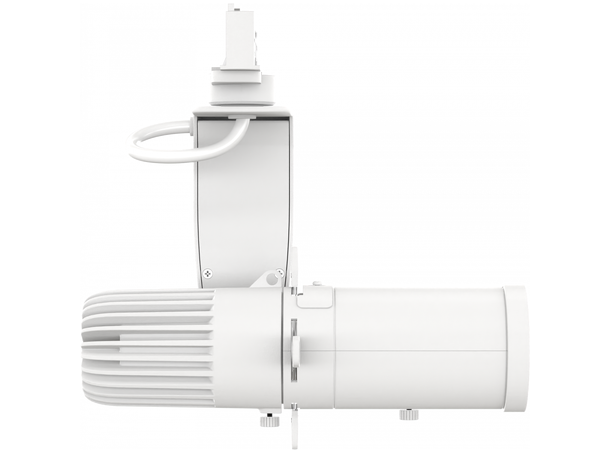

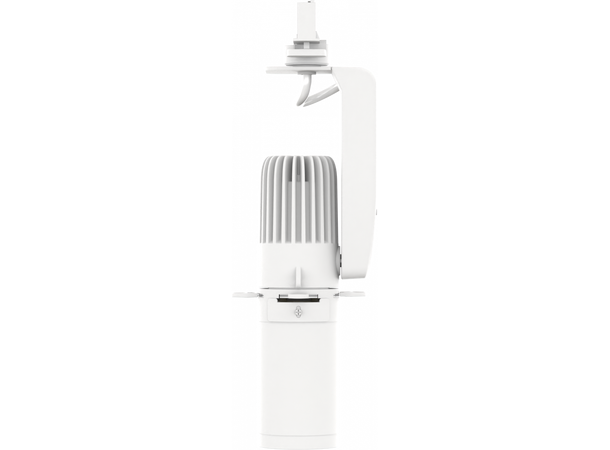

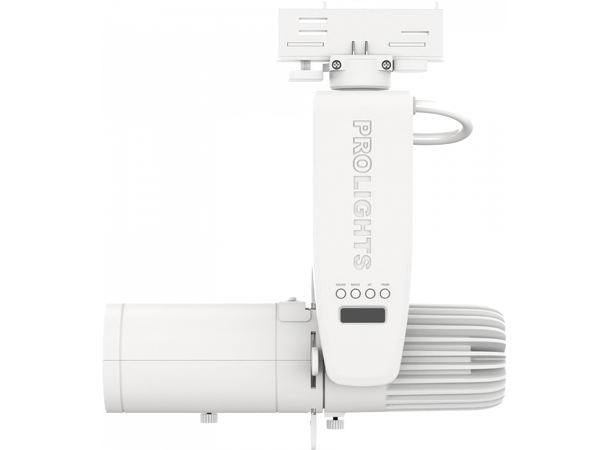

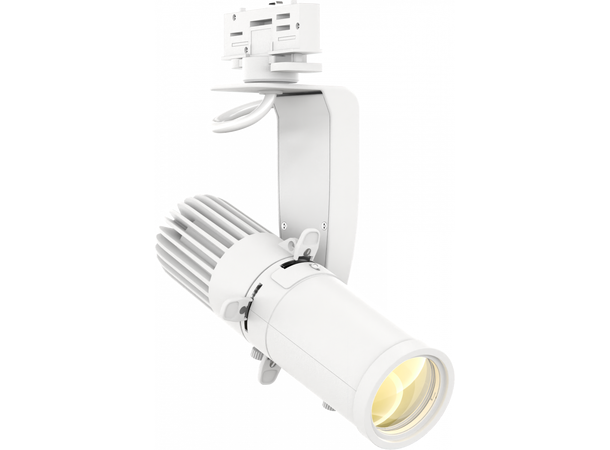

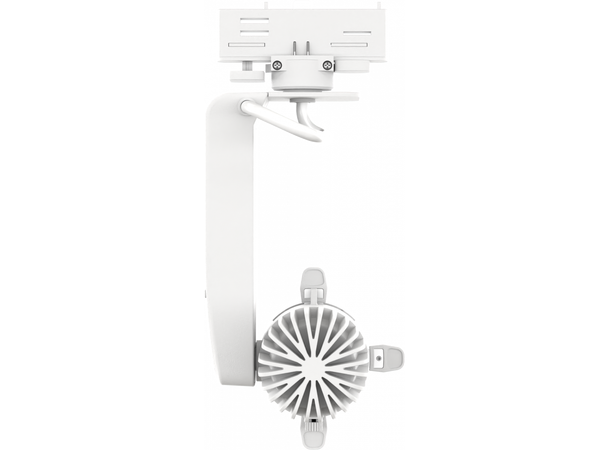

MINIECLIPSETRWD is a new concept of mini LED ellipsoidal, performing a stylish design, ease of use, precise optics, sharp image projection and bright-even projection, in a compact housing that is just one-fourth of the traditional ellipsoidals. MINIECLIPSETRWD comes with a built-in WiFi module for cable-free operation, enlarging the possible application of this luminaire. Equipped with an elegant white housing and track-adapter, MINIECLIPSETRWD is designed for applications in exhibition areas, commercial spaces, museums, restaurant, churches, and any other installation where size is an important factor. Available in Tungsten and Daylight versions, MINIECLIPSETRWD performs even field projection, high CRI at any level of brightness and linear dimmer over the entire ramp.
Light source and optics
- 1x28W CREE LED
- Lumen: Tungsten 612 lm, Daylight 700 lm
- Lux@3m: Tungsten 880 lux (19°), Daylight 1037 lux (19°)
- Peak intensity: Tungsten 7294 cd (19°), Daylight 8337 cd (19°)
- Color rendering: Tungsten 93 Ra, Daylight 91 Ra
- Color Temperature: Tungsten 3100K, Daylight 6000K
- Available optics (not included): 19°, 26°, 36°, 50°
- Gobo sizes: gobo Ø 37.5 mm - image Ø 28 mm - thickness 0.5 mm
- High-efficiency optics maximizing uniformity of projection, framing precision, color temperature stability over the entire dimming curve
- Average life LED life: >50,000 hours
Electronics and features- Several DMX selectable configurations (1, 2, 5 channels) for advanced or basic controlling
1 channel: Dimmer
2 channels: Dimmer, Strobe
5 channels: Dimmer, Strobe, Auto Programs, Auto Speed, Dimmer Speed
- Integrated 2,4GHz WDMX receiver by Wireless Solutions
- Black OLED display user interface for auto programs execution
- 4 different dimming curves available
- Auto mode: built-in programs with execution speed adjustment
- Manual mode: manual adjustment of dimmer and strobe
- Master/Slave mode for stand-alone operations
- Linear and “stepless” transition between DMX values
- Flicker-free operations (from 400Hz to 25KHz selectable from the user interface)
Structure and Power supply- Internal Protection: IP20
- Elegant white housing
- High-resistance aluminum body designed to facilitate heat dissipation
- Manual tilt and focus adjustment
- Track-adapter included
- Power supply: 100-240V 50/60Hz
- Operating conditions: -10/45° C
- Max output consumption: 29W
- Weight: 1,5 kg
- Dimensions (WxHxD): 112x252x226 mm
