NB! STRØMKABEL LEVERES UTEN STØPSEL. SE TILBEHØR FOR ALTERNATIVER

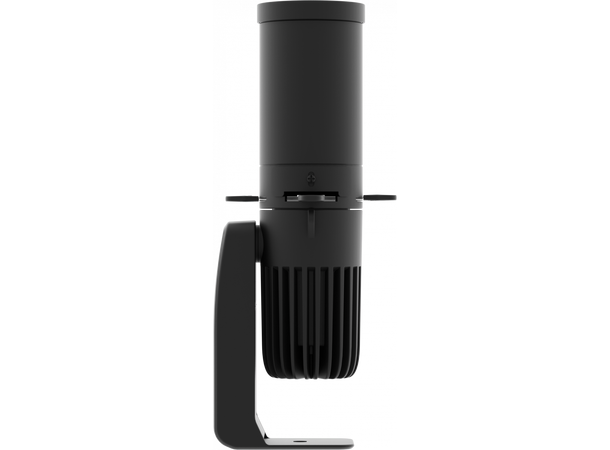

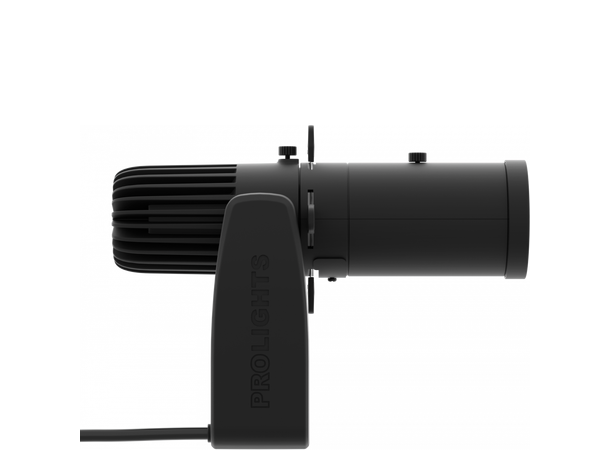

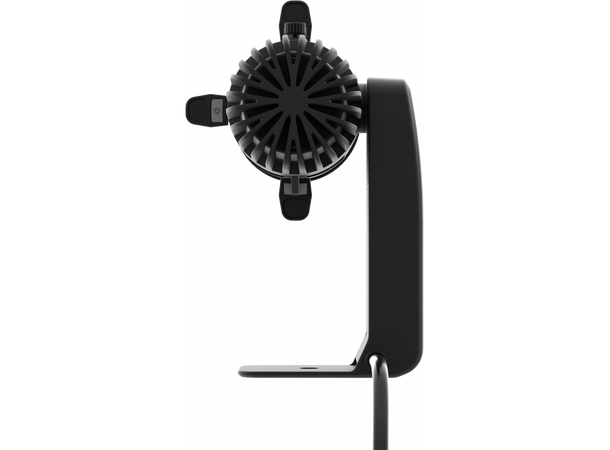

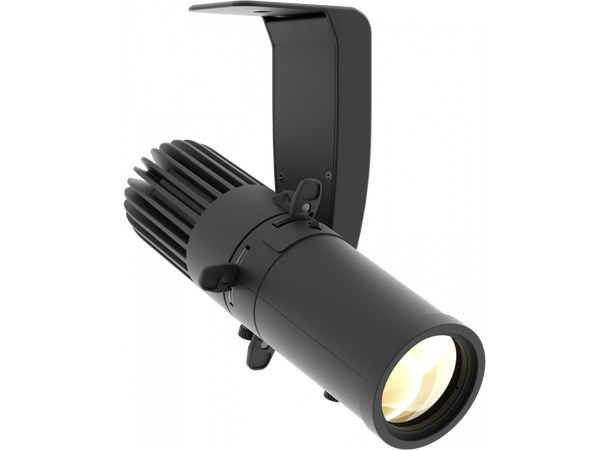

MINI ECLIPSE is a new concept of mini LED ellipsoidal, performing a stylish design, ease of use, precise optics, sharp image projection and bright-even projection, in a compact housing that is just one-fourth of the traditional ellipsoidals.
MINI ECLIPSE is designed for applications in commercials, museums, restaurant, churches, educational theatres, and any other installation where size is an important factor. Available in Tungsten (3000K) and Daylight (6000K) versions, MINI ECLIPSE performs even field projection, high CRI (91) at any level of brightness and linear dimmer over the entire ramp.
Light source and optics
- 1x28W CREE LED
- Lux @ 3m (Tungsten version): 316 lux (19°), 185 lux (26°), 102 lux (36°), 58 lux (50°)
- Peak intensity (Tungsten): 7920 cd (19°), 4626 cd (26°), 2547 cd (36°), 1440 cd (50°)
- Color rendering: Tungsten 91Ra
- Color Temperature: Tungsten 3000K, Daylight 6000K
- Available optics (not included): 19°,26°, 36°, 50°
- High-efficiency optics maximizing uniformity of projection, framing precision, color temperature stability over the entire dimming curve
- Average life LED life: >50,000 hours
Electronics and features- Dimmer knob for brightness adjustment
- Flicker-free frequency (>400 Hz) diodes suitable for camera recording
- Quiet operations, forced-air cooling with no-noise fans
- Compatible with track-adapter
Structure and Power supply- High-resistance aluminum body designed to facilitate heat dissipation
- Accessory range: Gobo pattern holder (included), Color pattern holder (included)
- Tool-free tilt and focus adjustment
- Internal Protection: IP20
- Suspension bracket and clamp levers designed for fast and easy mounting and pointing
- Power supply: 100-240V 50/60Hz
- Operating conditions: -20/45 °C
- Max output consumption: 23W
- Weight: 1,5 kg
- Dimensions (WxHxD): 226x176x112 mm
