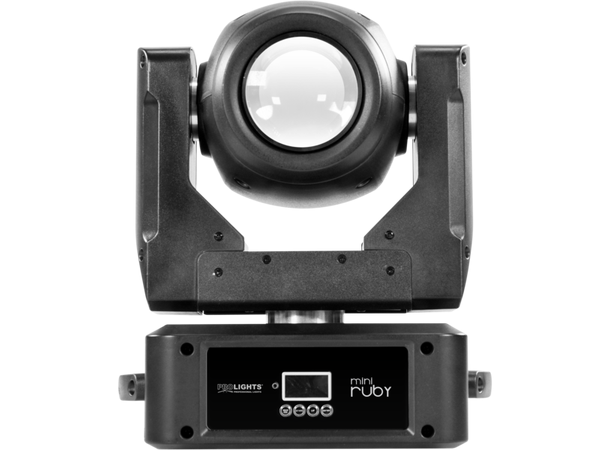

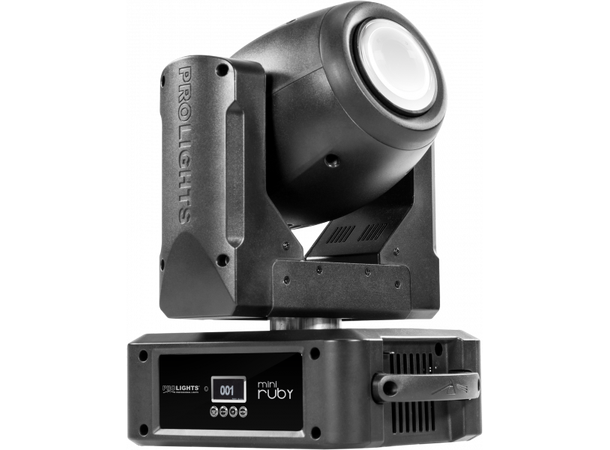

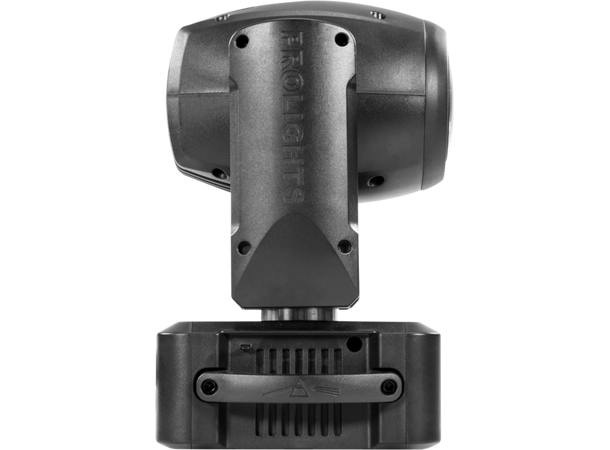

PROLIGHTS MINIRUBY Moving head

Beam, Osram HRI 132W, 2° beam

Varenr: MINIRUBY-ML
12 287,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.
Bestillingsvare
På lager hos leverandør, forventet leveringstid er ca. 19 dager
BeskrivelseTilbehørAlternativerLenker & dokumenter
Beskrivelse

MINIRUBY is the smallest discharge lamp moving head in the Prolights catalogue featuring a lightweight and compact body, a sharp and tight 3.5° beam.

Thanks to the Osram Sirius 132W lamp source, MINIRUBY delivers a clean concentrated beam-designed to cut through even a brightly lit stage.


Features:
Osram Sirius HRI 132W lamp
Glass optical lens group with 3.5° beam angle
Effect section with: circular prism
Colour wheel with 9 dichroic filters

LIGHT SOURCE
  • Source: 132W
    Osram Sirius HRI
  • Temperature: 9200K
  • CRI: 60 Ra
  • Luminous Flux: 5150lm
  • Source Life Expectancy: 6.000 h
OPTICS
  • Beam Angle: 3,5°
  • Field Angle: 3,5°
  • Lens Diameter: 80mm
  • Lens Type: HQ glass lens optics
COLOR SYSTEM
  • Color Wheel: 9 dichroic filters+Open
DYNAMIC EFFECTS
  • Circular Prism: 8f with bi-directional rotation
BODY
  • Pan Angle: 540/630°
  • Tilt Angle: 265°
  • Pan/Tilt Resolution: 8/16 bit
  • Feedback:Automatic repositioning after accidental movement
  • Body:Aluminium structure with hi-resistance polycarbonate cover
  • Body Color: Black
CONTROL
  • Protocols:DMX512, RDM
  • Dmx Channels:7/9ch
  • Display: LCD display
  • Firmware Upgrade:Yes, via USB-DMX interface (UPBOX2) not included
  • Master/Slave: for synchronized operation of more units linked in a chain
ELECTRONICS
  • Strobe/Shutter:1-28 flash/s, mechanical
  • Operating Temperature: -10° / 45°
ELECTRICAL
  • Power Supply: 100-240V \u2013 50/60Hz
  • Power Consumption (at 230V): 176W
  • Output (at 230V): 12 units on a single power line
PHYSICAL

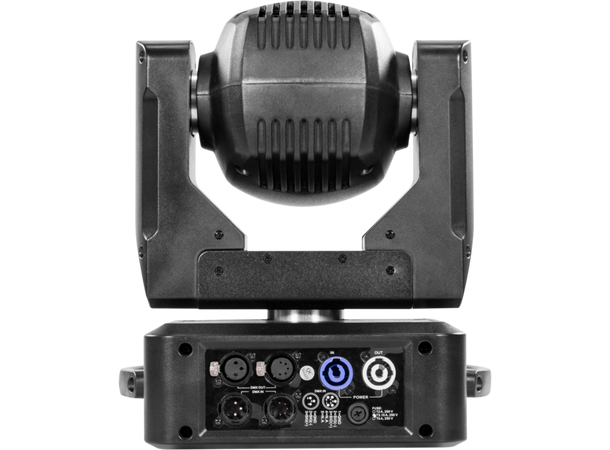

  • Signal Connection: 3p+5p in/out
  • Power Connection: PowerCON in/out
  • IP: 30
  • Cooling: Combination of liquid cooling system and low noise fan
  • Suspension And Fixing: Any position with "quick-lock" omega brackets
  • Dimensions (WxHxD): 278x387x200mm
    Weight: 7.6 Kg
  •
