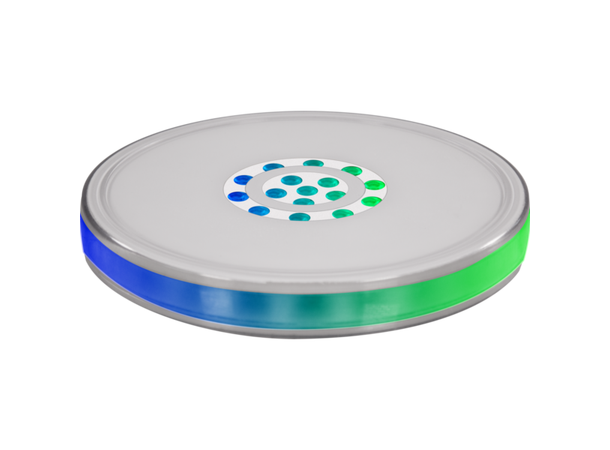

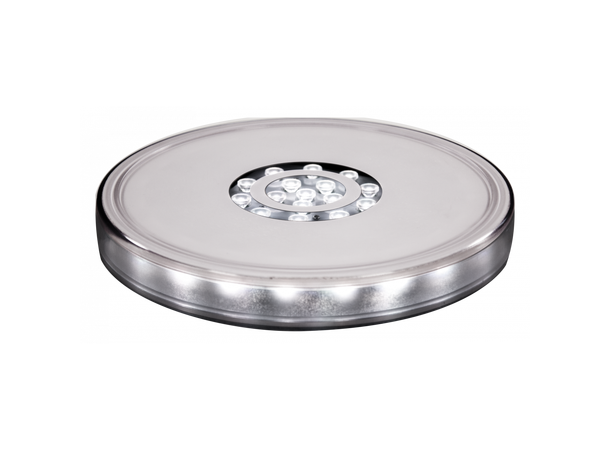

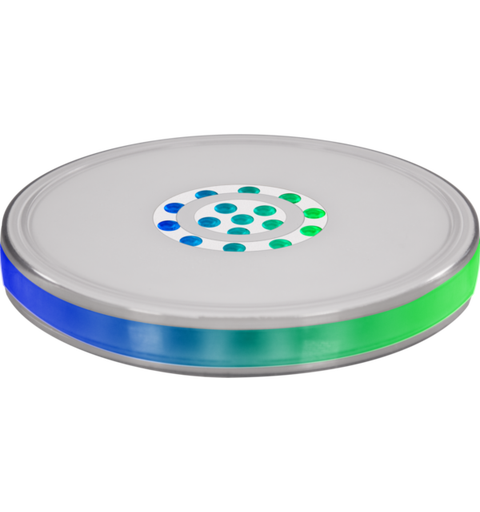

Smart Disk is an IP rated, wireless battery powered RGBW LED table centre. Designed for both branding events and adding a controllable element to a table - it adds an extra dimension to any event design.
Features:
Battery powered and wireless DMX control for fast deployment and accurate control
Separate control of each RGBW LED pixel of up-light and side-light for dynamic effects

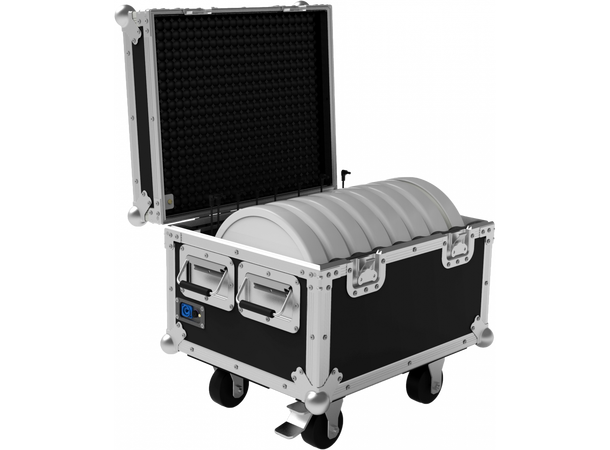

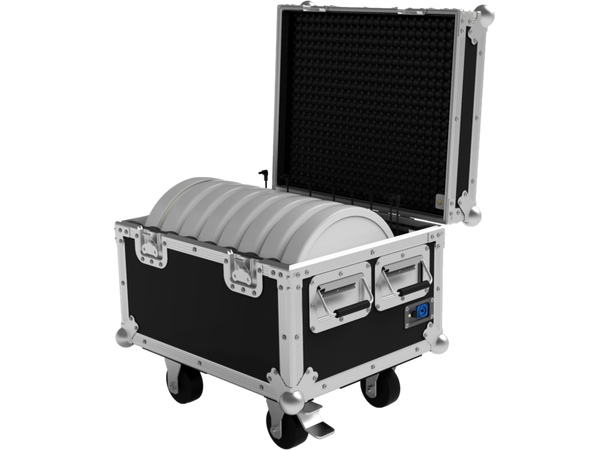

Available in a SMARTDISK PACK featuring 8 lights with accessories in an case with foam shell
LIGHT SOURCE
Source: 39x0,25W RGB + Warm White
CCT: 2.800 K ~ 6.000K
Source life expectancy: > 30.000 h
OPTICS
Beam angle: 360° to light up tables and 25° to light up objects on top
COLOUR SYSTEM
Colour mixing: RGBW / FC
Macros: several pre-build pixel macros with adjustable speed
DYNAMIC EFFECTS
FX generator: adjustable foreground/background colour, index, speed, direction
Static colour mode: selection of static colour
Manual colour mode: manual adjustment of colour
BODY
Body: sturdy policarbonate body
Body colour: white
CONTROL
Protocols: W-DMX
DMX channels: 4 / 8 / 17 / 165channel
Pixel control: pixel2pixel control
W-DMX: included, wireless solution receiver
Display: LCD display
Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
IR: infrared sensor controlled by remote
ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: different dimming curves available
Strobe / shutter: 1 - 30 Hz, electronic
Operating temperature: -10° ~ +45°
ELECTRICAL
Power consumption (at 230 V): 19,9W
BATTERY
Battery: 4,4 Ah - 11,1V lithium
Estimated battery life in colour change mode up to: 15h
Estimated battery life in single colour mode up to: 24h
Estimated battery life in full-mode up to: 8h
Re-charge connection: power cable
Re-charge time: 5h/max
Battery status: shown on display
PHYSICAL
Data connection: W-DMX receiver
IP rating: 54
Dimensions (WxHxD): 300x40x300mm
Weight: 1,62kg
