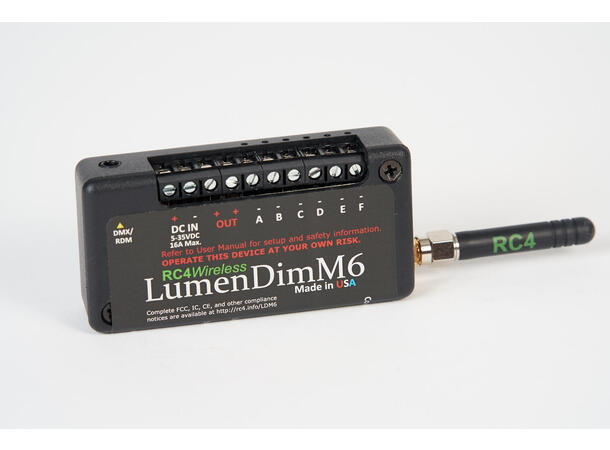

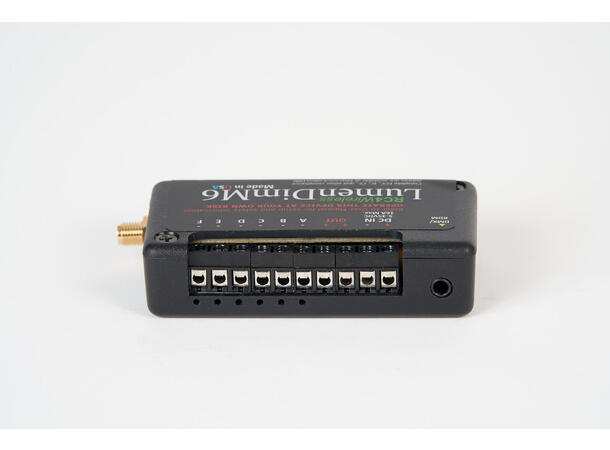

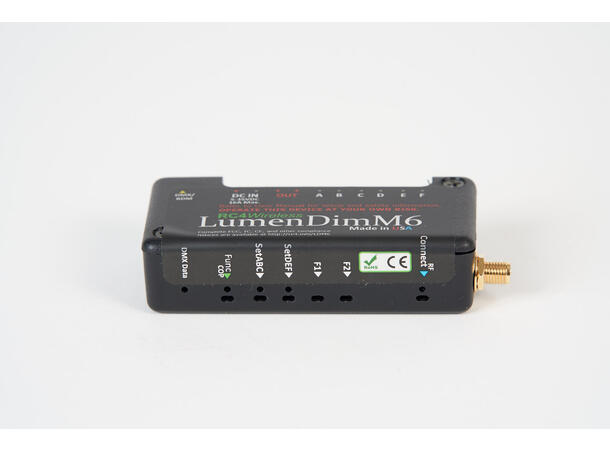

RC4 WIRELESS LUMENDIM M6 Dimmer

The LumenDimM6 is a compact, easy to use, digitally secure, battery-powered wireless DMX dimmer with an unprecedented six channels of power handling. It smoothly dims LEDs and lamps, controls small DC motors with wide-range speed control, and provides many features to optimize color and appearance for a variety of theatre and motion-picture applications.

• PWM frequencies optimizations for power handling, smoothest resolution, eliminating artifacts in video, and eliminating noise in audio systems.
• RC4 Digital Persistence A carefully engineered thermal model makes LEDs fade up and down like incandescent and halogen lamps.
• HSL Color Controller Choose to use Hue/Saturation/Level (brightness) control of color if desired.
• RC4 ColorMatch Match color palettes and white-balance different LED sources from different manufacturers.
• RC4 Wireless FLKR Effects Engine Create personalized visual effects, including fire, welding spark, and much more.
• Remote Device Management (RDM) The DMX standard for device configuration, including E1.37 dimmer control extensions.
• RC4 CodeLoader Update firmware to add features.  Since 2014, more than 10 new features have been added at no cost to users!

Spesifications

• Dimensions:  3.14"x 1.5" x .78" (80mm x 40mm x 20mm)
• Weight: 2.20oz
• Power Input: 6VDC – 35VDC, 0.5W, screw terminals
• Dimmer Outputs: 6 low-voltage DC dimmers, screw terminals, 19-bit resolution PWM (524,00 steps)
• Output Power, per Dimmer: 10A non-continuous, 5A continuous
• Maximum Total Power Handling: 16A (limited by safety rating of input screw terminals)
• Multiple PWM Frequencies: 77Hz (high power), 615Hz (flicker free), 5kHz (artifact free for video), 20kHz (noise free for audio), 40kHz (super-slow-motion video)
• Multiple Dimmer Curves: Non-Dim, Non-Dim Inverted, Linear, Linear Inverted, Inverse-Square-Law (ISL), ISL inverted, servo motor pulse clockwise (CW), servo motor pulse counter-clockwise (CCW), AC wave (ring telephone bells)
• DMX Input/Output: RC4 3.5mm mini, USITT DMX512/1990 data, non-standard port, connector adaptors available. RDM E1.20 and E1.37 (dimmer configuration) support
• Wireless DMX Protocol: LumenRadio CRMX

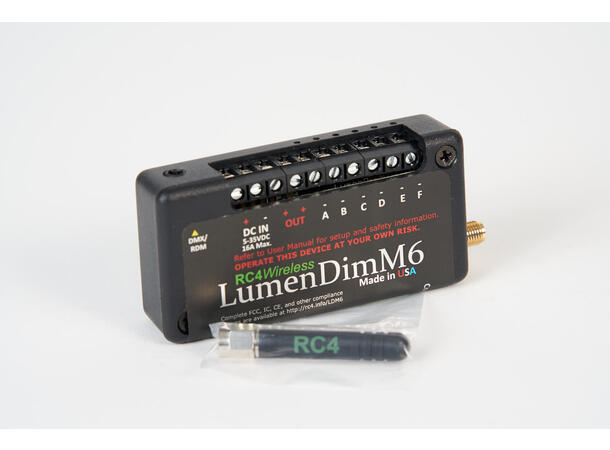

• RF Antenna: RP-SMA external, omnidirectional. Alternate antennas can be used for increased sensitivity and directionality
