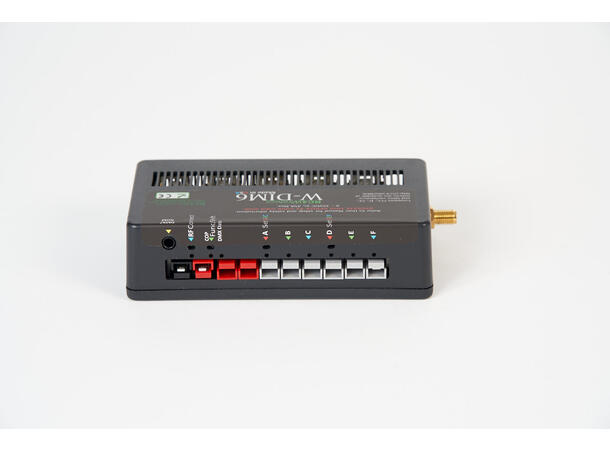

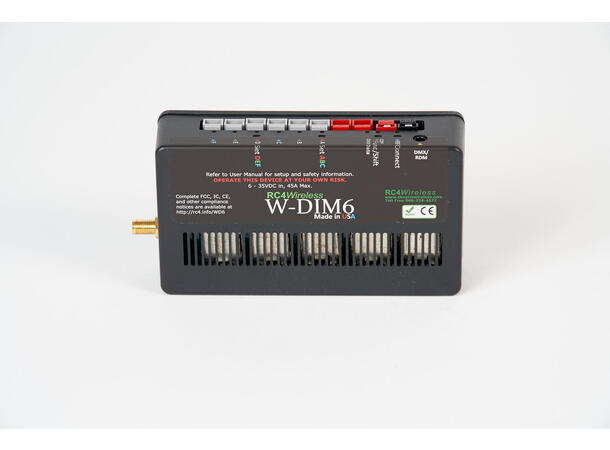

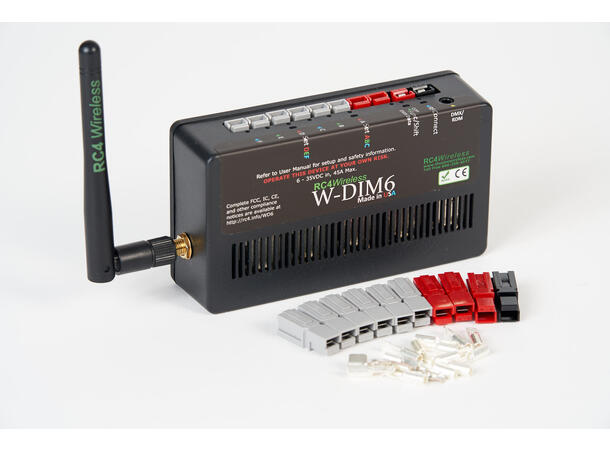

RC4 WIRELESS W-DIM6 Dimmer

The W-DIM6 is a 42A high-power 6-channel DC dimmer for props, turntables, set pieces, and more.  It smoothly dims LEDs and lamps, controls small DC motors with wide-range speed control, and provides many features to optimize color and appearance for a variety of theatre and motion-picture applications.  It operates from 6VDC to 35VDC with low heat generation and maximum energy efficiency.

• PWM frequencies optimizations for power handling, smoothest resolution, eliminating artifacts in video, and eliminating noise in audio systems.
• RC4 Digital Persistence A carefully engineered thermal model makes LEDs fade up and down like incandescent and halogen lamps.
• HSL Color Controller Choose to use Hue/Saturation/Level (brightness) control of color if desired.
• RC4 ColorMatch Match color palettes and white-balance different LED sources from different manufacturers.
• RC4 Wireless FLKR Effects Engine Create personalized visual effects, including fire, welding spark, and much more.
• Remote Device Management (RDM) The DMX standard for device configuration, including E1.37 dimmer control extensions.
• RC4 CodeLoader Update firmware to add features.  Since 2014, more than 10 new features have been added at no cost to users!

Spesifications

• Dimensions:  4.40"x 2.44" x .1.22" (112mm x 62mm x 31mm)
• Weight: 4.7oz

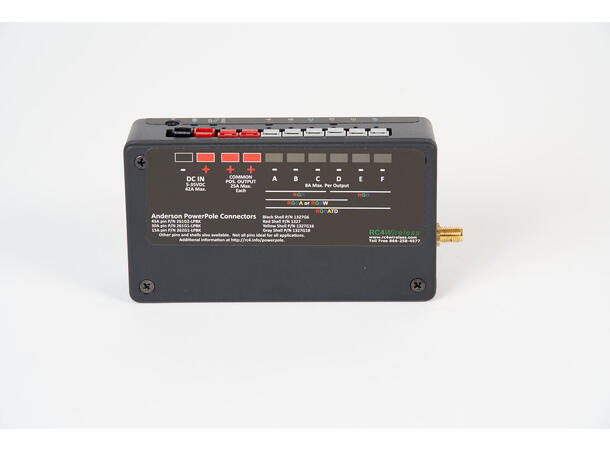

• Power Input: 6VDC – 35VDC, 0.4W idle draw, ~87% regulation efficiency, Anderson Powerpole connections
• Dimmer Outputs: 6 low-voltage DC dimmers, Anderson Powerpole connections, 19-bit resolution PWM (524,000 steps)
• Individual Dimmer Output Power: 10A non-continuous, 7A continuous
• Maximum Total Power Handling: 45A (limited by Anderson Power Pole input connector maximum rating)
• Multiple PWM frequencies: 1250Hz, 5kHz (artifact free for video), 20kHz, 40kHz (noise-free for audio, flicker-free for super high-frame-rate video capture)
• Multiple Dimmer Curves: Non-Dim, Non-Dim Inverted, Linear, Linear Inverted, Inverse-Square-Law (ISL), ISL inverted (RDM controller with E1.37 capability required to select some options)
• RC4 Digital Persistence™: 8 user-selectable persistence periods emulating a range of filament lamps
• Sensors: Input voltage, internal temperature, current for chans 1/2/3, current for chans 3/4/5
• DMX Input/Output: RC4 3.5mm mini, USITT DMX512/1990 data, non-standard port, connector adaptors available. RDM E1.20 and E1.37 (dimmer configuration) support
• Wireless Protocol: Wireless Solution W-DMX
• RF Antenna: external, omnidirectional supplied. A wide variety of alternate antennas are available.
