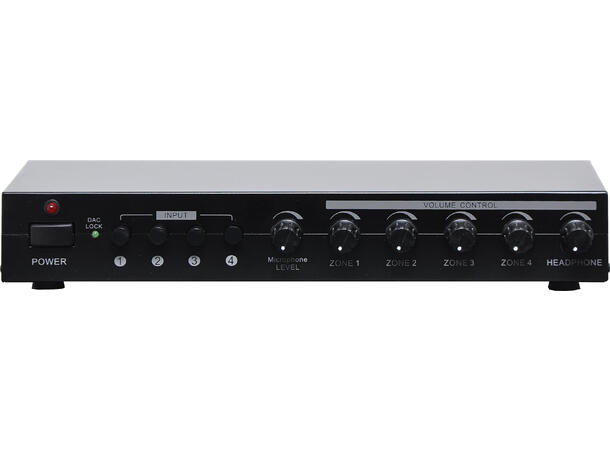

This integrated 4 zone amplifier and source switcher is designed to power up to 8 speakers and switch between four audio sources.

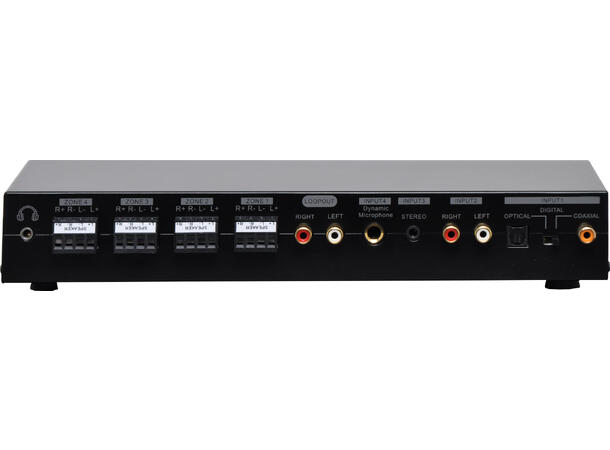

Connection of sources is via 6.35mm jack (microphone), 3.5mm stereo jack, stereo RCA and S/PDIF digital (coaxial or optical). It’s ideal for small businesses looking to provide background music, announcing etc using ceiling or wall speakers. Toslink audio connection is ideal for television audio. A local loop output and headphone jack connection is also provided. Each zone is fitted with its own level control to make adjustments in each area. Power supply included.
Features
4 30W stereo output zones
4 inputs via 6.35mm, 3.5mm, RCA & digital (either optical or coaxial)
Ideal for small zoned audio requirements
Digital audio connection ideal for TV audio playback
Individual level controls on each zone output
Compact all metal casing
Power supply included
Specifications
Amplifier type: Class D stereo
Output power: 15W RMS per channel @ 4 ohm
Distortion: 0.06%
Headphone output: 105mW RMS per channel
Headphone distortion: 0.05%
Min load: 4O
Current draw: 9A max.
Power: 12V DC
Dimensions: 285W x 128D x 43Hmm
Weight: 0.8kg
*Specifications are subject to change without notice.
